CN106947597B - A kind of pine flower essence for cigarette popping beads and its application in cigarettes - Google Patents

Abstract

The invention belongs to the technical field of cigarette filter rod production, and in particular relates to a patent application for a pine flower essence for cigarette popping beads and its application in cigarettes. The pine flower essence is composed of pine flower extract, propyl cinnamate, linalool, methyl salicylate, myrcene, neroli oil, and caprylic acid glyceride. The essence can be used to prepare Songhua cigarette popping beads, and the popping beads can be added to the filter rod to prepare cigarette popping beads for cigarette application. The present application provides a pine flower essence specially used for cigarette popping beads and a relatively complete popping bead production process, so that a cigarette popping bead product with stable and uniform molding quality can be prepared. After the popping beads are placed in a cigarette filter, It can better reduce the irritation of cigarettes, improve and enrich the aroma of cigarettes, and significantly improve the aroma richness, sensory quality and smoking interest of cigarettes, so it has good application value for the design, development, production and sales of pop bead cigarettes. and promotion of application significance.

Description

A kind of pine flower essence for cigarette popping beads and its application in cigarettes

technical field

The invention belongs to the technical field of cigarette filter rod production, and in particular relates to a patent application for a pine flower essence for cigarette popping beads and its application in cigarettes.

Background technique

In the traditional cigarette flavoring technology, the flavor liquid is mainly added to the cut tobacco. The material liquid added in this way is often lost during the combustion process of the cigarette. The feed liquid also produces some bad sensory effects. As an emerging cigarette flavoring method, popped beads flavoring can overcome the shortcomings of the existing flavoring methods to a certain extent. The main reason is that the popped beads contain flavors. The explosive beads in the filter rod reburn the cigarette. At this time, when the smoke passes through the filter tip, it acts on the consumer together with the exploding beads material liquid, thereby completing the process of adding flavor and fragrance; on the one hand, this method can effectively avoid the aroma and flavor in the tobacco burning process. On the other hand, since the flavor is placed in the sealed explosive beads, the loss will not occur during the storage of the cigarette, thus ensuring the stability of the cigarette quality.

As a new material in cigarettes, "popping beads" have more and more prominent functions in supplementing, improving, and coordinating the quality of cigarette smoking and improving, changing, and cigarette product style due to the special release method of their contents. Therefore, in recent years, "popping beads" cigarettes are being used more and more in the production of Chinese-style cigarettes, and they are also loved by consumers.

In the prior art, although there are a certain number of popping beads cigarettes on the market, the fragrance in the popping beads is relatively poor in coordination with the smoke due to the lack of targeted design, and has an impact on the aroma characteristics of the cigarette itself. Larger, thus affecting the smoking experience of the explosive bead cigarette.

Although "popping beads" cigarettes have sprung up like mushrooms after a rain, due to their relatively novel products, the current production standards and specifications are relatively lacking, so there have been many new issues in the addition and use of "popping beads". Especially in view of the particularity of cigarette products, in terms of the design of the "explosive bead" content formulation, the stable release of the content, and the impact of the "explosive bead" filter rod on the physical, chemical, and hazard indices of cigarettes, etc. Rarely reported. Therefore, the contents of "explosive beads" with different compositions are designed, and the release rules of special "explosive beads" are systematically studied, and the influence of "explosive beads" contents on the physical indicators, smoke indicators, and hazard indexes of cigarettes, etc. It has important theoretical and practical significance.

SUMMARY OF THE INVENTION

The purpose of the present invention is to provide a targeted pine flower essence for use in cigarette filter rods, thereby enriching the types of cigarette products and providing cigarette products with different styles.

The technical solution adopted in this application is described in detail as follows.

A pine flower essence for cigarette popping beads, in terms of mass percentage, is composed of the following components:

10.0~15.0% pine flower extract,

1.0~2.0% propyl laurate,

0.3~0.6% linalool,

0.5~1.0% methyl salicylate,

0.2~0.5% myrcene,

1.0~2.0% neroli oil,

78.9~87.0% of caprylic acid glyceride.

The pine flower extract is the ethanol extract of pine flower;

The caprylic acid glyceride, namely medium chain triglyceride (MCT), is a product of esterification of fatty acids with 8-12 carbon chains and glycerol.

The pine flower extract can be prepared with reference to the following steps:

(1) After crushing the dried pine flowers, pass through a 45-65 mesh sieve to prepare pine pollen;

(2) Add a volume fraction of 60-90% ethanol solution to the pine pollen in step (1), and heat reflux in a water bath at 60-80°C for 3-5 hours; the ratio of the pine pollen to the ethanol solution is: pine pollen: ethanol =1g: 4~6mL;

(3) Concentrate the hot reflux liquid in step (2) under reduced pressure at 55~65°C and 60~80Kpa until there is no change in volume, and the obtained extract is the pine flower extract.

The pine flower essence for cigarette popping beads, the specific formula is for example: 12% pine flower extract, 1.5% propyl cinnamate, 0.4% linalool, 0.7% methyl salicylate, 0.35% myrcene , 1.5% neroli oil and 83.55% caprylic acid glyceride.

It needs to be explained that different essences are different according to their purposes, and their formulas are generally specially designed. The pine flower essence described in this application is a combination of the production process characteristics of cigarette beads and a special design according to the use in the final cigarette. On the basis of the quality of the beads, the results of adjusting the quality of smoke and improving the quality of cigarette smoke can be better achieved.

The pine flower cigarette popping beads prepared by using the pine flower essence for the cigarette popping beads. The cigarette popping beads refer to using natural polymer materials or synthetic polymer materials to wrap the flavors and fragrances in a sealed popping bead to form a A variety of sealed explosive beads of different colors that are mostly round, the diameter of the explosive beads is 2.0~4.0mm, and the content of the essence in the explosive beads is 20~25μL/grain; specific example: the diameter of the blasting beads is 3.65mm, and the weight is 23mg/grain ; The essence content in the popping beads is 23μL/grain. In short, the specific specifications can be adjusted according to the different machines and equipment and the specifications of the filter rods used.

For the application of the Songhua cigarette popping beads in cigarettes, the cigarette popping beads are added to the ordinary (circumference 24.3mm) cigarette filter rod.

The pine flower essence for cigarette popping beads provided in this application has obvious herbal aroma, and these aromas are the most important aroma characteristics in cigarette smoke; after it is prepared in the form of "popping beads" and applied to cigarettes, it can be tasted after smoking. The results show that: compared with the control sample, after smoking with Songhua cigarettes, not only can the aroma style of cigarette smoke be not changed, but also can significantly improve the richness of smoke aroma, enhance the feeling of fullness and taste of smoke. The richness improves the coordination of aroma and product sensory quality, and increases the interest of cigarette smoking; at the same time, because Songhua has the effects of clearing away heat and detoxification, removing dampness and invigorating qi, the present application has the effect of reducing the harm of cigarette smoking to a certain extent. effect.

In general, the pine flower essence used in this application is extracted from natural pine flowers, so after these aroma substances enter the cigarette smoke, the irritation of the smoke can be reduced, and the softness and roundness of the cigarette smoke can be improved. , aroma fullness and fullness, thereby improving its inhalation quality and sensory comfort.

In a word, the present application provides a pine flower essence specially used for cigarette popping beads and a relatively complete popping bead production process, so that a cigarette popping bead product with stable and uniform molding quality can be prepared, and the popping beads are placed in the cigarette filter tip. It can better reduce the irritation of cigarettes, improve and enrich the aroma of cigarettes, significantly improve the richness of aroma, sensory quality and smoking interest of cigarettes. Therefore, it has good application value and promotion and application significance for the design, development, production and sales of explosive bead cigarettes.

Detailed ways

The present invention will be further explained below in conjunction with the embodiments. Before introducing the specific examples, the preparation process of the cigarette popping beads described in the following examples is briefly introduced as follows.

The main preparation process of the cigarette popping beads of the prior art is as follows:

The mainstream technology of explosive bead production mainly adopts the preparation process of split-flow method-droplet method in liquid, that is, the shear force of cooling oil is used to cut off the rubber column to complete the dripping of explosive beads; specifically: first, use two different incident angles The cooling oil of the cooling oil forms a shear force in the solenoid, which cuts off the wall material and the core liquid during the dripping process, and finally condenses into a ball in the cooling oil by the action of surface tension, and then undergoes oil removal, drying, screening, etc. The final finished product is made after the program; the prepared explosive beads in the following examples adopt this method to entrust Shanghai Huabao Biotechnology Co., Ltd. to process and complete;

It should also be noted that the materials used in the following examples: propyl laurate, linalool, methyl salicylate, myrcene, neroli and caprylic acid glycerides etc. are also Shanghai Huabao Biotechnology The product of Technology Co., Ltd.; the used pine flower, that is, pine huang in traditional Chinese medicine, is a conventional traditional Chinese medicine, purchased from a Chinese herbal medicine store;

The pine flower extract used in the following examples is prepared according to the following steps:

(1) After crushing the dried pine flowers, pass through a 50-mesh sieve to prepare pine pollen;

(2) Add 75% ethanol solution by volume to the pine pollen in step (1), and heat reflux in a water bath for 4 hours at 70°C;

(3) Concentrate the hot reflux liquid in step (2) under reduced pressure at 60°C and 70Kpa until the volume has no change, and the obtained extract is the pine flower extract.

Example 1

The pine flower essence for cigarette popping beads in the present embodiment, in mass percent, consists of the following components:

10% pine blossom extract, 1.0% propyl laurate, 0.3% linalool, 0.5% methyl salicylate, 0.2% myrcene, 1.0% neroli oil and 87.0% caprylic acid Glycerides.

The pine flower essence was prepared into cigarette popping beads with a diameter of 3.65 mm and a weight of 23 mg/granule, and the content of the essence in the popping beads was 23 μL/granule, which was the pine flower cigarette popping beads.

According to the existing filter rod production process, the explosive beads are placed in the center of the filter rod through the filter rod forming machine, and added to the ordinary circumference (24.3mm) cigarette filter rod. The position of the explosive beads is 12.5mm from the lip end. The popped beads are the popped beads filter rod, and after the cigarette sample is rolled, it is the Songhua popped beads cigarette.

For the prepared Songhua popping beads cigarettes, 7 professional sensory evaluation personnel carried out the detection and comparative smoking evaluation of the sample and the blank cigarette sample of the control example (blank popping beads were added in the same position).

For smoke detection and specific smoking evaluation scores, see the following table.

The smoking evaluation results showed that 7 cigarette smokers agreed that after adding Songhua cigarette popping beads, the "songhua fragrance" aroma of the cigarette samples was obvious, and the aroma richness of the smoke was improved to a certain extent. The aroma perception is enhanced, there is a sweetness, the irritation is reduced, the miscellaneous gas is reduced, the fineness of the smoke is improved, and the aftertaste is improved.

Example 2

The pine flower essence for cigarette popping beads in the present embodiment, in mass percent, consists of the following components:

12% pine blossom extract, 1.5% propyl laurate, 0.4% linalool, 0.7% methyl salicylate, 0.35% myrcene, 1.5% neroli oil and 83.55% caprylic acid Glycerides.

The pine flower essence was prepared into cigarette popping beads with a diameter of 3.65 mm and a weight of 23 mg/granule, and the content of the essence in the popping beads was 23 μL/granule, which was the pine flower cigarette popping beads.

According to the existing filter rod production process, the explosive beads are placed in the center of the filter rod through the filter rod forming machine, and added to the ordinary circumference (24.3mm) cigarette filter rod. The position of the explosive beads is 12.5mm from the lip end. The popped beads are the popped beads filter rod, and after the cigarette sample is rolled, it is the Songhua popped beads cigarette.

For the prepared Songhua popping beads cigarettes, 7 professional sensory evaluation personnel carried out the detection and comparative smoking evaluation of the sample and the blank cigarette sample of the control example (blank popping beads were added in the same position).

For smoke detection and specific smoking evaluation scores, see the following table.

The smoking evaluation results showed that 7 cigarette smokers agreed that after adding Songhua cigarette popping beads, the "pine flower aroma" of the cigarette samples was more obvious, the richness of smoke aroma was significantly increased, and the sweet and burnt aroma was felt. Significantly enhanced, with obvious sweetness, significantly reduced irritation, reduced miscellaneous gas, significantly improved smoke fineness, and significantly improved aftertaste.

Example 3

The pine flower essence for cigarette popping beads in the present embodiment, in mass percent, consists of the following components:

15% pine blossom extract, 2.0% propyl laurate, 0.6% linalool, 1.0% methyl salicylate, 0.5% myrcene, 2.0% neroli oil and 78.9% caprylic acid Glycerides.

The pine flower essence was prepared into cigarette popping beads with a diameter of 3.65 mm and a weight of 23 mg/granule, and the content of the essence in the popping beads was 23 μL/granule, which was the pine flower cigarette popping beads.

According to the existing filter rod production process, the exploding beads are placed in the center of the filter rod through the filter rod forming machine, and added to the ordinary (circumference 24.3mm) cigarette filter rod. The position of the exploding beads is 12.5mm from the lip end. The popped beads are the popped beads filter rod, and after the cigarette sample is rolled, it is the Songhua popped beads cigarette.

For the prepared Songhua popping beads cigarettes, 7 professional sensory evaluation personnel carried out the detection and comparative smoking evaluation of the sample and the blank cigarette sample of the control example (blank popping beads were added in the same position).

For smoke detection and specific smoking evaluation scores, see the following table.

The smoking evaluation results showed that 7 cigarette smokers unanimously believed that after adding Songhua cigarette popping beads, the "pine flower aroma" of the cigarette samples was very obvious, the coordination of smoke aroma was reduced, the irritation was increased, and the miscellaneous gas was reduced. The smoke has poor coordination and an uncomfortable sweetness, and the aftertaste is not as good as that of normal cigarettes (control cigarettes).

The explosive beads products prepared by different embodiments were detected, and the cigarettes prepared in the above-mentioned embodiments were routinely detected to measure the physical and chemical indicators of the acetate cellulose tow samples, the physical indicators of the filter rod samples, and the cigarette samples in the cigarette samples. The physical and chemical indicators were determined, and the indicators such as total particulate matter, tar, nicotine and moisture in mainstream cigarette smoke were determined according to the method of "GB/T 19609-2004 Cigarette smoking machine for routine analysis Determination of total particulate matter and tar" The tests were carried out and the specific results are shown in the table below.

Table 1, the detection result of prepared quick beads in different embodiments:

。

.

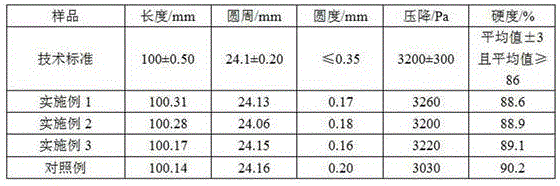

Table 2, the detection result of the filter rod that contains quick beads prepared by different embodiments:

。

.

Table 3, physical indicators and mainstream smoke detection results of different cigarette samples:

。

.

As can be seen from the data in Table 2 above, compared with the normal acetate fiber tow filter rod, there is no significant difference in the physical index of the filter rod placed with the pine blossom beads, mainly because the pressure drop of the filter rod has changed significantly. From the data in Table 3, it can be seen that compared with the normal cigarettes of the control example, the mainstream smoke of the Songhua popping beads cigarettes has changed, but after the popping beads are crushed, the key indicators of tar and nicotine that affect the sense of cigarettes have no significant changes.

Table 4. Evaluation results of sensory quality of different cigarette samples:

。

.

It can be seen from the results in Table 4 that the sensory quality of cigarettes can be significantly improved by using pine blossom beads, and its sensory score can be increased by up to 0.53 points.

To sum up, through the targeted design of the specific fragrance of the bead formula, after it is applied to cigarettes, it can significantly improve the aroma characteristics of cigarettes when smoking, enrich and improve the smoking experience, and at the same time, due to the special effects of pine flowers, it can also reduce the harm of cigarettes. . Therefore, the present application, as a new type of pine blossom popping beads that highlights the "songhua" aroma of cigarettes, improves the quality of smoking, and reduces the harm of cigarettes, has certain popularization and application value in the industry.

It should be emphasized that the above-mentioned explosive bead formula is improved and designed for conventional formula cigarettes. When applied to thin cigarettes, it also has a good application effect. The amount of addition is appropriately adjusted, which will not be described in detail here.

Claims (6)

1. a pine flower essence for cigarette popping beads, is characterized in that, in mass percent, is made up of the following components: 10.0~15.0% pine flower extract, 1.0~2.0% propyl laurate, 0.3~0.6% linalool, 0.5~1.0% methyl salicylate, 0.2~0.5% myrcene, 1.0~2.0 % neroli oil, 78.9~87.0% caprylic acid glyceride; The pine flower extract is the ethanol extract of pine flower; specifically, it is prepared according to the following steps: (1) After crushing the dried pine flowers, pass through a 45-65 mesh sieve to prepare pine pollen; (2) Add a volume fraction of 60-90% ethanol solution to the pine pollen in step (1), and heat reflux in a water bath at 60-80°C for 3-5 hours; the ratio of the pine pollen to the ethanol solution is: pine pollen: ethanol =1g: 4~6mL; (3) Concentrate the hot reflux liquid in step (2) under reduced pressure at 55~65°C and 60~80Kpa until there is no change in volume, and the obtained extract is the pine flower extract. 2. pine flower essence for cigarette popping beads as claimed in claim 1, is characterized in that, the pine flower extract of 12%, the propyl laurate of 1.5%, the linalool of 0.4%, the methyl salicylate of 0.7%, 0.35% myrcene, 1.5% neroli oil and 83.55% caprylic acid glyceride; or as: 10% pine blossom extract, 1.0% propyl laurate, 0.3% linalool, 0.5% methyl salicylate, 0.2% myrcene, 1.0% neroli oil and 87.0% caprylic acid Glycerides; or as: 15% pine blossom extract, 2.0% propyl laurate, 0.6% linalool, 1.0% methyl salicylate, 0.5% myrcene, 2.0% neroli oil and 78.9% caprylic acid Glycerides. 3. utilize the pine flower cigarette quick-fire beads prepared with pine flower essence for cigarette quick-fire beads according to claim 1, it is characterized in that, the diameter of the quick-fire beads is 2.0～4.0mm, and the essence content in the quick-fried beads is 20～25 μL/ grain. 4. Songhua cigarette quick-fried beads as claimed in claim 3, it is characterized in that, quick-bead diameter is 3.65mm, weight is 23mg/ grain, and essence content in quick-fried bead is 23 μL/ grain. 5. the application of Songhua cigarette popping beads in cigarettes according to claim 3, is characterized in that, cigarette popping beads are added in the filter rod. 6. The application of Songhua cigarette popping beads in cigarettes as claimed in claim 5, wherein the cigarette popping beads are located in the middle of the filter rod, and one popping bead is added in each cigarette filter rod.
