Abstract

本发明涉及一种基于双混沌调制的保密通信系统，包括：发送端，包括第一混沌激光器与耦合器连接，耦合器与第一隔离器连接，第一隔离器与光电开关连接，第二混沌激光器与第二隔离器连接，第二隔离器与光电开关连接；接收端，包括第三混沌激光器与环形器通信连接，环形器与第二光电检测器通信连接，第二光电检测器与互相关器通信连接，互相关器分别与第一射频放大器、判决器通信连接，第一射频放大器与第一光电检测器通信连接；环形器与耦合器通信连接，光电开关与第一光电检测器通信连接。本发明利用双混沌对数字信息进行扩频，同步产生完全相同的混沌序列，发送端收到信息调制后，接收端利用同步的本地信号进行信息解调，实现保密通信。

Figure 202011433232

The invention relates to a secure communication system based on double chaotic modulation, comprising: a sending end, including a first chaotic laser connected to a coupler, the coupler connected to a first isolator, the first isolator to be connected to a photoelectric switch, and a second chaotic laser connected to a coupler. The laser is connected with the second isolator, and the second isolator is connected with the photoelectric switch; the receiving end includes the third chaotic laser and the communication connection with the circulator, the circulator is in communication connection with the second photoelectric detector, and the second photoelectric detector is in communication with the correlation The cross-correlator is connected in communication with the first radio frequency amplifier and the determinator respectively, the first radio frequency amplifier is in communication connection with the first photoelectric detector; the circulator is in communication connection with the coupler, and the photoelectric switch is in communication connection with the first photoelectric detector . The invention uses double chaos to spread the spectrum of digital information, and generates identical chaotic sequences synchronously. After the transmitting end receives the information modulation, the receiving end uses the synchronized local signal to demodulate the information to realize secure communication.

Figure 202011433232

Description

Secret communication system based on double chaotic modulation
Technical Field
The invention belongs to the technical field of secret communication and information security, and particularly relates to a secret communication system based on double chaotic modulation.
Background
The chaos is a deterministic random-like process, the chaos sequence is used as the carrier wave for communication, and the chaos sequence has the characteristics of noise-like, wide band, good correlation, unpredictable long-term behavior and the like, so the chaos sequence has a good application prospect in the field of secret communication.
When the energy of the chaotic spread spectrum energy signal is spread to the chaotic carrier with a wide frequency band, the power spectral density of the chaotic spread spectrum energy signal is low and difficult to detect.
Disclosure of Invention
Aiming at the defects in the prior art, the invention provides a secret communication system based on double chaotic modulation.
In order to achieve the purpose of the invention, the invention adopts the following technical scheme:
a secure communication system based on dual chaotic modulation, comprising:
the transmitting terminal comprises a first chaotic laser, a second chaotic laser, a first isolator, a second isolator, a photoelectric switch and a coupler, wherein the first chaotic laser is in communication connection with the coupler;
the receiving end comprises a third chaotic laser, a circulator, a first photoelectric detector, a second photoelectric detector, a first radio frequency amplifier, a second radio frequency amplifier, a cross correlator and a decision device, wherein the third chaotic laser is in communication connection with the circulator, the circulator is in communication connection with the second photoelectric detector, the second photoelectric detector is in communication connection with the cross correlator, the cross correlator is in communication connection with the first radio frequency amplifier and the decision device respectively, and the first radio frequency amplifier is in communication connection with the first photoelectric detector;
the circulator is in communication connection with the coupler, and the photoelectric switch is in communication connection with the first photoelectric detector.
Preferably, the coupler and the circulator are connected through an optical fiber to form a chaotic synchronization link between the first chaotic laser and the third chaotic laser.
Preferably, the wavelengths of the signals generated by the first chaotic laser, the second chaotic laser and the third chaotic laser are all 1550nm, and the power is 10 mW.
As a preferred scheme, the external cavity feedback delay time of the first chaotic laser and the external cavity feedback delay time of the third chaotic laser are both 2.67ns, and the external cavity feedback delay time of the second chaotic laser is 3.67 ns.
Preferably, the threshold current of the first chaotic laser and the threshold current of the third chaotic laser are 32mA, and the threshold current of the second chaotic laser is 37 mA.
Preferably, the number of transparent carriers of the first chaotic laser, the second chaotic laser and the third chaotic laser is 1.6633 multiplied by 108。
Preferably, when the maximum cross-correlation of the cross-correlator is 1, the transmission is 1; otherwise, the transmission is 0.
Preferably, the quantum efficiency of the first photodetector and the quantum efficiency of the second photodetector are both 10%.
Preferably, the threshold voltage of the photoelectric switch is 5.4V.
Compared with the prior art, the invention has the beneficial effects that:
the invention is different from the existing chaotic communication system in that the double chaos is used for spreading the digital information, the sending end and the receiving end synchronously generate a chaos sequence which is completely the same as one chaos sequence, and after the sending end is modulated by the information, the receiving end carries out convolution operation by utilizing the synchronous local signal, thereby finally realizing the demodulation of the information and realizing the secret communication.
The invention not only realizes chaotic synchronous communication, but also has the characteristics of low cost, stable performance, strong confidentiality and the like.
Drawings

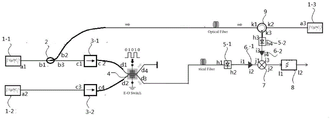

Fig. 1 is a frame diagram of a secure communication system based on dual chaotic modulation according to an embodiment of the present invention;
fig. 2 is a schematic diagram of a chaotic signal generated by a first chaotic laser at a transmitting end according to an embodiment of the present invention;
fig. 3 is a schematic diagram of a chaotic signal generated by a second chaotic laser at a transmitting end according to an embodiment of the present invention;
fig. 4 is a schematic diagram of a chaotic signal generated by a third chaotic laser at a receiving end according to an embodiment of the present invention;
fig. 5 is a schematic diagram of a binary signal sent by a sending end according to an embodiment of the present invention;
fig. 6 is a schematic diagram of a binary signal recovered by a receiving end according to an embodiment of the present invention.
Wherein: 1-1. a first chaotic laser; 1-2. a second chaotic laser; 1-3, a third chaotic laser; 2. is a coupler; 3-1. a first isolator; 3-2. a second isolator; 4. a photoelectric switch; 5-1. a first photodetector; 5-2. a second photodetector; 6-1. a first radio frequency amplifier; 6-2. a second radio frequency amplifier; 7. a cross correlator; 8. a decision device; 9. a circulator.
Detailed Description
In order to more clearly illustrate the embodiments of the present invention, the following description will explain specific embodiments of the present invention with reference to the accompanying drawings.
The secret communication system of the embodiment of the invention adopts double chaotic modulation and utilizes an electro-optical switch to synthesize two different chaotic signals into one signal. At a receiving end, the photoelectric detector is used for converting the combined chaotic signal into an electric signal, and the electric signal is amplified by the radio frequency amplifier. Meanwhile, the third chaotic laser is synchronous with the first chaotic laser, and a chaotic signal generated by the third chaotic laser is converted into an electric signal and amplified by a radio frequency amplifier; and then performing convolution operation on the signal in one bit time slot by using a cross correlator, wherein if the signal is close to 1, the signal is judged to be 1, and otherwise, the signal is 0.
As shown in fig. 1, the secure communication system according to the embodiment of the present invention includes a transmitting end and a receiving end.
The transmitting end comprises a first chaotic laser 1-1, a second chaotic laser 1-2, a coupler 2, a first isolator 3-1, a second isolator 3-2 and a photoelectric switch 4.
The receiving end comprises a third chaotic laser 1-3, a first photoelectric detector 5-1, a second photoelectric detector 5-2, a first radio frequency amplifier 6-1, a second radio frequency amplifier 6-2, a cross correlator 7, a decision device 8 and a circulator 9.
The coupler 2 and the circulator 9 are connected through optical fibers to form a chaotic synchronization link between the first chaotic laser 1-1 and the third chaotic laser 1-3.
The transmitting end and the receiving end are connected through an optical fiber, specifically, a port a1 of a first chaotic laser 1-1 of the transmitting end is connected with a port b1 of a first coupler 2, a port b3 of the first coupler 2 is connected with a port c1 of a first isolator 3-1, and a port c2 of the first isolator 3-1 is connected with a port d1 of a photoelectric switch 4; the port a2 of the second chaotic laser 1-2 is connected with the port c3 of the second isolator 3-2, and the port c4 of the second isolator 3-2 is connected with the port d2 of the photoelectric switch 4, so that two paths of information are combined into one path and the modulation of the information is realized.
A port k1 of the circulator 9 at the receiving end is connected with a port b2 of the coupler 2 at the transmitting end through an optical fiber, a port k2 of the circulator 9 is connected with a port a3 of the third chaotic laser 1-3, a port k3 of the circulator 9 is connected with a port h3 of the second photodetector 5-2, a port h4 of the second photodetector 5-2 is connected with a port i3 of the second radio frequency amplifier 6-2, and a port i4 of the second radio frequency amplifier 6-2 is connected with a port j3 of the cross correlator 7. The port h1 of the first photodetector 5-1 at the receiving end is connected with the d3 port of the optoelectronic switch 4 at the transmitting end through an optical fiber, the port h2 of the first photodetector 5-1 is connected with the port i1 of the first radio-frequency amplifier 6-1, and the port i2 of the first radio-frequency amplifier 6-1 is connected with the port j1 of the cross correlator 7. The port j2 of the cross correlator 7 is connected to the port l1 of the decision device 8, and demodulation of the received signal is performed by the decision device 8.
The signal wavelengths generated by the first chaotic laser, the second chaotic laser and the third chaotic laser are all 1550nm, and the power is 10 mW; the external cavity feedback delay time of the first chaotic laser and the external cavity feedback delay time of the third chaotic laser are both 2.67ns, and the external cavity feedback delay time of the second chaotic laser is 3.67 ns; the threshold current of the first chaotic laser and the third chaotic laser is 32mA, and the threshold current of the second chaotic laser is 37 mA; the number of transparent carriers of the first chaotic laser, the second chaotic laser and the third chaotic laser is 1.6633 multiplied by 108。
When the maximum cross-correlation of the cross-correlator is 1, the transmission is 1; otherwise, the transmission is 0.
The quantum efficiency of the first photodetector and the second photodetector are both 10%.
The threshold voltage of the photoelectric switch is 5.4V.
The secret communication system with chaotic synchronization of the embodiment of the invention carries out chaotic communication on transmission signals by the following method:
generating a chaotic signal as a driving signal according to a first chaotic laser 1-1 at a sending end, and sending the chaotic signal to a third chaotic laser 1-3 at a receiving end to generate a synchronous chaotic signal; the chaotic synchronization has strong robustness. The second laser 1-2 at the transmitting end is irrelevant to the first chaotic laser 1-1 due to the fact that feedback delay and bias current are different. When the information of the sending end is 1, the chaotic signal generated by the first chaotic laser 1-1 is output through the through arm of the photoelectric switch; when the information of the sending end is '0', the chaotic signal generated by the first chaotic laser is output through the cross arm of the photoelectric switch, and the two chaotic signals are synthesized and then output at the d3 port of the photoelectric switch. Due to the switching effect of the photoelectric switch, information is encrypted onto the chaotic carrier. At a receiving end, a third chaotic signal locally synchronous with the first chaotic laser 1-1 is converted into an electric chaotic signal, the modulated chaotic signal is also converted into an electric signal, two paths of electric signals are transmitted to a cross correlator for convolution operation, and the transmitted signal can be recovered after judgment by a decision device.
As shown in fig. 2 and 4, the chaotic signals generated by the transmitting end and the receiving end are completely synchronized.
As shown in fig. 3, the chaotic signal generated by the second chaotic laser is uncorrelated with the chaotic signals generated by the first and third chaotic lasers.
As shown in fig. 5 and 6, the original signal transmitted by the transmitting end is identical to the signal decrypted by the receiving end, which indicates that the system can be applied to secure communication.
The process of implementing communication is briefly summarized as follows:
1. the sending end respectively generates two chaotic signals which have good randomness but are irrelevant.
2. The receiving end generates a chaotic signal which is completely synchronous with one laser of the transmitting end.
3. And modulating digital information to the chaotic signal by using an electro-optical switch, and encrypting the signal. In this example: when the information of the sending end is '1', the chaotic signal generated by the first chaotic laser 1-1 is output through the through arm of the first photoelectric switch, and when the information of the sending end is '0', the chaotic signal generated by the first chaotic laser is output through the cross arm of the first photoelectric switch, so that the two chaotic signals are synthesized and then output at the d3 port of the first photoelectric switch.
4. The received signal is convolved with a cross correlator.
5. The transmitted information can be recovered using a decision taker.
The chaotic communication method and the chaotic communication device realize chaotic communication by utilizing common devices, and have the characteristics of low cost, stable performance, low error rate, strong confidentiality and the like.
While the preferred embodiments and principles of this invention have been described in detail, it will be apparent to those skilled in the art that variations may be made in the embodiments based on the teachings of the invention and such variations are considered to be within the scope of the invention.

Claims (9)

1.一种基于双混沌调制的保密通信系统，其特征在于，包括：1. a security communication system based on double chaotic modulation, is characterized in that, comprises: 发送端，包括第一混沌激光器、第二混沌激光器、第一隔离器、第二隔离器、光电开关和耦合器，第一混沌激光器与耦合器通信连接，耦合器与第一隔离器通信连接，第一隔离器与光电开关通信连接，第二混沌激光器与第二隔离器通信连接，第二隔离器与光电开关通信连接；The sending end includes a first chaotic laser, a second chaotic laser, a first isolator, a second isolator, a photoelectric switch and a coupler, the first chaotic laser is communicatively connected to the coupler, and the coupler is communicatively connected to the first isolator, The first isolator is communicatively connected to the photoelectric switch, the second chaotic laser is communicatively connected to the second isolator, and the second isolator is communicatively connected to the photoelectric switch; 接收端，包括第三混沌激光器、环形器、第一光电检测器、第二光电检测器、第一射频放大器、第二射频放大器、互相关器和判决器，第三混沌激光器与环形器通信连接，环形器与第二光电检测器通信连接，第二光电检测器与互相关器通信连接，互相关器分别与第一射频放大器、判决器通信连接，第一射频放大器与第一光电检测器通信连接；The receiving end includes a third chaotic laser, a circulator, a first photodetector, a second photodetector, a first radio frequency amplifier, a second radio frequency amplifier, a cross-correlator and a decider, and the third chaotic laser is connected in communication with the circulator , the circulator is connected in communication with the second photodetector, the second photodetector is connected in communication with the cross-correlator, the cross-correlator is connected in communication with the first radio frequency amplifier and the decider, and the first radio frequency amplifier is in communication with the first photoelectric detector connect; 环形器与耦合器通信连接，光电开关与第一光电检测器通信连接。The circulator is in communication connection with the coupler, and the photoelectric switch is in communication connection with the first photodetector. 2.根据权利要求1所述的一种基于双混沌调制的保密通信系统，其特征在于，所述耦合器与环形器通过光纤连接构成第一混沌激光器与第三混沌激光器之间的混沌同步链路。2. a kind of security communication system based on double chaotic modulation according to claim 1 is characterized in that, described coupler and circulator are connected by optical fiber to form a chaotic synchronization chain between the first chaotic laser and the third chaotic laser road. 3.根据权利要求1所述的一种基于双混沌调制的保密通信系统，其特征在于，所述第一混沌激光器、第二混沌激光器、第三混沌激光器产生的信号波长均为1550nm，功率均为10mW。3. a kind of security communication system based on double chaotic modulation according to claim 1, is characterized in that, the signal wavelengths that described first chaotic laser, second chaotic laser, third chaotic laser produce are all 1550nm, and power is equal to 1550nm. is 10mW. 4.根据权利要求1所述的一种基于双混沌调制的保密通信系统，其特征在于，所述第一混沌激光器和第三混沌激光器的外腔反馈延迟时间均为2.67ns，所述第二混沌激光器的外腔反馈延迟时间为3.67ns。4. a kind of security communication system based on double chaotic modulation according to claim 1, is characterized in that, the external cavity feedback delay time of described first chaotic laser and the third chaotic laser is 2.67ns, and described second chaotic laser is 2.67ns. The external cavity feedback delay time of the chaotic laser is 3.67ns. 5.根据权利要求1所述的一种基于双混沌调制的保密通信系统，其特征在于，所述第一混沌激光器和第三混沌激光器的阈值电流为32mA，第二混沌激光器的阈值电流为37mA。5. a kind of security communication system based on double chaotic modulation according to claim 1, is characterized in that, the threshold current of described first chaotic laser and the 3rd chaotic laser is 32mA, and the threshold current of the second chaotic laser is 37mA . 6.根据权利要求1所述的一种基于双混沌调制的保密通信系统，其特征在于，所述第一混沌激光器、第二混沌激光器、第三混沌激光器的透明载流子数均为1.6633×108。6. a kind of security communication system based on double chaotic modulation according to claim 1, is characterized in that, the transparent carrier number of described first chaotic laser, second chaotic laser, third chaotic laser is 1.6633 × 10 8 . 7.根据权利要求1所述的一种基于双混沌调制的保密通信系统，其特征在于，所述互相关器的最大互相关为1时，传输为1；否则，传输为0。7 . A security communication system based on double chaotic modulation according to claim 1 , wherein when the maximum cross-correlation of the cross-correlator is 1, the transmission is 1; otherwise, the transmission is 0. 8 . 8.根据权利要求1所述的一种基于双混沌调制的保密通信系统，其特征在于，所述第一光电检测器和第二光电检测器的量子效率均为10％。8 . The secure communication system based on double chaotic modulation according to claim 1 , wherein the quantum efficiencies of the first photodetector and the second photodetector are both 10%. 9 . 9.根据权利要求1所述的一种基于双混沌调制的保密通信系统，其特征在于，所述光电开关的阈值电压为5.4V。9 . The secure communication system based on double chaotic modulation according to claim 1 , wherein the threshold voltage of the photoelectric switch is 5.4V. 10 .
