Abstract

The application provides a method, a device and a system for processing data, which are used for analyzing network resources by taking grids as granularity so as to predict network performance, can more accurately predict the network condition of the position of UE, and can realize more accurate scheduling of the network resources of the UE. The method provided by the embodiment can be applied to various communication systems, such as V2X, LTE-V, V2V, internet of vehicles, MTC, IoT, LTE-M, M2M, internet of things, and the like. The method comprises the following steps: the method comprises the steps that access network equipment obtains information of N grids in a preset range, wherein N is a positive integer greater than or equal to 1; the access network equipment receives first side link SL network information from User Equipment (UE); the access network equipment sends the identification of the first grid and second SL network information related to the first grid to the network equipment according to the first SL network information, the UE is in the first grid, and the N grids comprise the first grid.

Description

A data processing method, device and system

technical field

The present application relates to the field of communications, and in particular, to a data processing method, apparatus and system.

Background technique

In vehicle-to-everything (V2X) communication scenarios, various application scenarios can be included, such as vehicle teaming, sensor expansion, remote driving or driving enhancement, and so on. In order to support the realization of these application scenarios, the vehicle-to-vehicle (V2V) communication based on the proximity communication 5 (PC5) interface of the side link (Sidelink, SL) needs to support low latency and high reliability transmission needs. And different from Uu interface communication, the uplink and downlink communication mode between user equipment (user equipment, UE) and the base station, SL communication adopts the communication mode of user direct connection.

Usually, in a V2X communication scenario, the UE may be in motion, and the communication quality of SL communication is also changing all the time. Therefore, the UE cannot accurately determine the network resources suitable for the SL communication quality. Therefore, how to make the UE use accurate network resources for communication has become an urgent problem to be solved.

SUMMARY OF THE INVENTION

The present application provides a data processing method, device and system, which are used to analyze network resources with grids as granularity, and then predict network performance, so as to more accurately predict the network situation where the UE is located, and achieve more accurate to schedule the UE's network resources.

In view of this, a first aspect of the present application provides a data processing method, including: an access network device obtains information of N grids within a preset range, where N is a positive integer greater than or equal to 1; the access network device Receive the first SL network information from the UE; the access network device sends the identifier of the first grid and the second SL network information related to the first grid to the network device according to the first SL network information, and the UE is in the first grid , the N grids include the first grid.

In the embodiment of the present application, the access network device may acquire information of N grids within a preset range, and receive the first SL network from the UE within the coverage of the first grid among the N grids information, and send the identifier of the first grid and the second SL network information related to the first grid to the network device according to the first SL network information, so that the network device can obtain at least one grid according to the second SL network information The network resource analysis result of the grid, the at least one grid may include a first grid and grids near the first grid. A method for data processing, comprising:

The access network device obtains information of N grids within a preset range, where N is a positive integer greater than or equal to 1; the access network device receives the first SL network information from the UE; the access network device obtains the first SL network information according to the first SL network information, the identifier of the first grid and the second SL network information related to the first grid are sent to the network device, the UE is in the first grid, and the N grids include the first grid. In the embodiment of the present application, the access network device may acquire information of N grids within a preset range, and receive the first SL network from the UE within the coverage of the first grid among the N grids information, and send the identifier of the first grid and the second SL network information related to the first grid to the network device according to the first SL network information, so that the network device can obtain at least one grid according to the second SL network information The network resource analysis result of the grid, the at least one grid may include a first grid and grids near the first grid, and the network resource analysis result may be used to adjust the network resources of the UE within the coverage of the at least one grid . The granularity of the grid where the UE is located is smaller than the granularity of the cell that the UE is currently accessing. Therefore, the network resources used by the UE can be adjusted based on the grid granularity of the smaller granularity, and the network resources of the UE can be adjusted more accurately. , to improve the accuracy of adjusting network resources.

In a possible implementation manner, the access network device acquires information of N grids within a preset range, including:

The access network device receives the information of the N grids from the policy and control function (policy control function, PCF) entity; or, the access network device receives the information of the N grids from the data analysis entity; or, the access network The device receives information from the N grids of the application function AF entity. In the embodiment of the present application, the PCF entity may perform grid division within a preset range to obtain information of N grids, and send the information to the access network device. The data analysis entity may also perform grid division within a preset range to obtain the information of the N grids, and send the information to the access network device. The grid may also be divided in a preset range by an application function (application function, AF) entity to obtain the information of the N grids, and send the information to the access network device. Therefore, the access network device can obtain the information of the N grids within the preset range through various ways.

In a possible implementation manner, the access network device acquires information of N grids within a preset range, including: the access network device performs grid division on the preset range to obtain N grids within the preset range grid information. In the embodiment of the present application, the access network device may divide the preset range to obtain information of N grids, which provides information for obtaining N grids within the preset scope.

In a possible implementation manner, the above method further includes: the access network device sends the information of the N grids to the PCF entity; or, the access network device sends the information of the N grids to the network device. In the embodiment of the present application, if the preset range is divided into grids by the access network device, the information of the N grids obtained by the division is also sent to other network elements, such as PCF entities, network devices, and the like. This enables other network elements to obtain the information of the N grids synchronously, so that subsequent access network devices can adjust the network resources of the UEs within the coverage of the N grids.

In a possible implementation manner, the above method further includes: the access network device receives a network resource analysis result from at least one grid of N grids of the network device; when the network resource analysis result satisfies the first preset condition , the access network device sends the SL radio bearer configuration to the UE within the coverage of at least one grid; or, when the network resource analysis result satisfies the first preset condition, the access network device is at least one grid according to the network resource analysis result. UEs within the grid coverage are allocated network resources. In this embodiment of the present application, the access network device further receives a network resource analysis result from at least one grid among the N grids of the network device, and when the network resource analysis result satisfies the first preset condition, can send at least one grid to at least one of the N grids. A UE within a grid coverage sends an SL radio bearer configuration, where the SL radio bearer configuration carries information about network resources available to the UE. Further, the UE can select network resources from the available network resources for SL communication. Alternatively, the access network device can directly allocate network resources to the UE according to the network resource analysis result, so that the UE can use the network resources allocated by the access network device for the UE to perform SL communication, improve the efficiency of the UE's SL communication, and avoid the UE in channel congestion. frequency band for SL communication.

In a possible implementation manner, the above method further includes: the access network device sends a first request to the network device, where the first request is used to request to obtain a network resource analysis result; wherein the first request carries at least one grid information information. In the embodiment of the present application, the access network device may request the network resource analysis result of at least one grid by sending a first request to the network device, and carry the identifier of the at least one grid in the first request, so that the network device Obtain at least one grid corresponding to the network resource analysis result requested by the first request.

In a possible implementation manner, the first request further carries the second SL network information. In the embodiment of the present application, the access network device can also carry the second SL network information in the first request, so that the network device can analyze the network resources based on the second SL network information carried in the first request, reducing the need for separate sending Signaling overhead of the second SL network information.

In a possible implementation manner, the aforementioned identifier of the first grid and the information of the second SL network can be sent through the first request, which can reduce the signaling overhead of the access network device.

In a possible implementation manner, the aforementioned network device is a data analysis entity or a network data analysis function (network data analysis function, NWDAF) entity. In the embodiments of the present application, the network resource analysis result of at least one grid may be obtained by the data analysis entity or the NWDAF entity, and various embodiments are provided. Moreover, when the network device is the data analysis entity, the workload of the NWDAF entity can be reduced.

In a possible implementation manner, the information of the N grids includes: identifiers of the N grids and coverage information of the N grids.

In a possible implementation manner, the coverage information of each grid in the N grids may include: the length and width of each grid, or the length, width and altitude of each grid.

In a possible implementation manner, the above method further includes: the access network device assigns an identifier to each of the N grids. In the embodiment of the present application, the access network device further allocates an identifier to each of the above grids, which provides a method for allocating grid identifiers.

In a possible implementation manner, the first SL network information includes at least one of the following: location information, channel quality information, V2X service information or road information of the corresponding UE. In the embodiment of the present application, the UE may report its own location information, channel quality information of the grid where it is located, V2X service information of the UE, or road information within a certain range of the current location of the UE to the access network device, so that the access network can The network access device can know the change of the communication quality of the SL communication in real time.

In a possible implementation manner, the above method further includes: the access network device determines that the UE is in the first grid according to the position of the UE and the information of the N grids. In the embodiment of the present application, the access network device may determine that the UE is in the first grid according to the location of the UE and the information of the N grids. The first grid is one or more of the N grids, and provides a way for the access network device to determine the grid where the UE is located.

In a possible implementation manner, the coverage of the first grid is smaller than the coverage of the cell currently accessed by the UE. In the embodiment of the present application, the range of the first grid where the UE is located is smaller than the coverage range of the cell that the UE is currently accessing. Therefore, the granularity of the grid is smaller than the granularity of the cell currently accessed by the UE, and the access network device can report the second SL network information to the network device based on the grid granularity, so that subsequent network resource analysis results based on the grid granularity are more accurate.

In a possible implementation manner, the coverage of each of the above-mentioned N grids is smaller than the coverage of the smallest cell under the access network device, or the coverage of each of the foregoing grids is smaller than that of the access network Average coverage of cells under the device.

In a possible implementation manner, the coverage of each of the above-mentioned N grids is smaller than the coverage of the smallest sector under the access network device, or the coverage of each of the foregoing grids is smaller than the coverage of the access network device. Average coverage of sectors under the network device.

A second aspect of the present application provides a data processing method, including: a network device acquiring information of N grids within a preset range, where N is a positive integer greater than or equal to 1; The identifier of a grid and the second SL network information related to the first grid, the N grids include the first grid; the network device is based on the information of the N grids, the second SL network information and the identifier of the first grid , obtaining a network resource analysis result of at least one grid in the N grids, where the at least one grid includes the first grid. In the embodiment of the present application, the network device may acquire information of N grids within a preset range, and receive the identifier of the first grid and the second SL network information related to the first grid from the access network device, Then, according to the information of the N grids, the identifier of the first grid, and the second SL network information related to the first grid, a network resource analysis result of at least one grid in the N grids is obtained, and the at least one grid The grid includes the first grid. The network resource analysis result can reflect the network situation of the SL communication within the coverage of the at least one grid, and can realize the analysis of the SL network performance of the at least one grid, so that the access network equipment, the PCF entity, the AF entity and other other The network element can adjust the network resources of the UE within the coverage of the at least one grid, the communication parameters of the V2X service or the QoS parameters of the C2X service based on the network resource analysis result, so as to reduce the communication delay of the UE performing the SL communication, The efficiency of data transmission of the V2X service by the UE is improved, and the delay of the V2X service is reduced.

In a possible implementation manner, the network device acquires information of N grids within a preset range, including:

The network device receives information from the N grids of the PCF entity; or the network device receives information from the N grids of the access network device; or the network device receives information from the N grids of the AF entity. Therefore, in the embodiments of the present application, the network device may acquire the information of the N grids in various ways.

In a possible implementation manner, the above method further includes: the network device sends the network resource analysis result to the access network device; or the network device sends the network resource analysis result to the PCF entity; or the network device sends the network resource to the AF entity Analyze the results. In this embodiment of the present application, the network device may send the network resource analysis result of the at least one grid to the access network device, PCF entity, or AF entity, etc., so that the access network device, PCF entity, or AF entity, etc., can As a result of network resource analysis, the network resources of the UE, the communication parameters of the V2X service or the QoS parameters of the V2X service within the coverage of the at least one grid are adjusted to reduce the delay of the SL communication of the UE and improve the efficiency of the SL communication of the UE , or improve the data transmission efficiency of the UE for the V2X service, and reduce the delay of the V2X service.

In a possible implementation manner, the above method further includes: the network device receives a first request from the access network device, where the first request is used to request to obtain a network resource analysis result, and the first request carries information of at least one grid or, the network device receives a second request from the AF entity, where the second request is used to request to obtain a network resource analysis result, and the second request carries information of at least one grid. In the embodiment of the present application, the network device further receives the first request from the access network device or the second request from the AF entity, and after receiving the first request or the second request, the network device of at least one grid The resource analysis result is sent to the access network device or the AF entity, so that the access network device or the AF entity can obtain the network resource analysis result.

In a possible implementation manner, the network device in this application is an NWDAF entity or a data analysis entity. Therefore, the present application provides various ways for obtaining the network resource decomposition result by the NWDAF entity or the data analysis entity.

In a possible implementation manner, when the network device is a data analysis entity, the network device obtains at least one grid in the N grids according to the information of the N grids, the second SL network information and the identifier of the first grid The network resource analysis result of the grid includes: the network device preprocesses the second SL network information to obtain the preprocessed SL network information; the network device preprocesses the SL network information according to the information of the N grids, the preprocessed SL network information and the identifier of the first grid , and obtain the network resource analysis result of at least one grid in the N grids. In the embodiment of the present application, when the network device is a data analysis entity, the network analysis entity may preprocess the second SL network information to obtain the preprocessed SL network information, and preprocess the SL network according to the information of the N grids information and the identifier of the first grid to obtain the network resource analysis result of at least one grid in the N grids. Analysis of the network resources of the at least one grid can be achieved.

In a possible implementation, when the network device is a data analysis entity, the network device acquires information of N grids within a preset range, and further includes: the network device divides the preset range into grids to obtain a preset Information for the N rasters in the range. In the embodiment of the present application, when the network device is a data analysis entity, the data analysis entity may further divide the preset range to obtain information of N grids within the preset range, providing a data analysis entity The way the grid is divided.

A third aspect of the present application is a data processing method, including: a PCF entity divides a preset range into grids to obtain information on N grids within the preset range, where N is a positive integer greater than or equal to 1; the PCF entity Send information for N grids. In the embodiment of the present application, the PCF entity may perform grid division, and send information of N grids obtained by grid division to other network elements. This enables other network elements to know the result of grid division. Further, the network device may analyze the network resources of at least one grid based on the grid granularity, obtain the network resource analysis result based on the grid granularity, and subsequently adjust the network resources of the UE, the communication parameters of the V2X service, or the QoS of the V2X service. When the level is selected, it can be adjusted based on the granularity of the grid to improve the accuracy of the adjustment.

In a possible implementation manner, the PCF entity sends the information of the N grids, including: the PCF entity sends the information of the N grids to the access network device; or the PCF entity sends the information of the N grids to the AF entity ; or, the PCF entity sends the information of the N grids to the network device. Therefore, the PCF entity can specifically send the information of the N grids to the access network device, the network device, or the AF entity, etc., so that other network elements can obtain the information of the N grids synchronously.

In a possible implementation manner, the above method further includes: the PCF entity receives the network resource analysis result of at least one grid in the N grids of the network device; when the network resource analysis result satisfies the second preset condition, The PCF entity sends V2X communication parameters to UEs within at least one grid coverage, where the V2X communication parameters include at least one of QoS parameters, address information or frequency band information of the V2X service. In the embodiment of the present application, the PCF entity further receives the network resource analysis result of at least one grid in the N grids from the network device, and the PCF entity can adjust the UE in the grid according to the grid granularity-based network resource analysis result Communication parameters of the V2X service. The efficiency of data transmission of the V2X service by the UE is improved, and the delay of the V2X service is reduced.

In a possible implementation manner, the aforementioned network device is a data analysis entity or an NWDAF entity.

A fourth aspect of the present application provides a data processing method, including: an AF entity divides a preset range into grids, and obtains information of N grids within the preset range, where N is a positive integer greater than or equal to 1; AF The entity sends information for N grids. In the embodiment of the present application, the AF entity may divide the grid with the preset range to obtain the information of N grids within the preset range, and send the information of the N grids to other network elements, so that other network elements can The element knows the result of the raster division. Further, the network device can obtain the network resource analysis result based on the grid granularity, and then adjust the network resources of the UE, the communication parameters of the V2X service or the QoS parameters of the V2X service based on the grid granularity, and improve the efficiency of the UE for SL communication, The efficiency of data transmission of the V2X service by the UE is improved, and the delay of the V2X service is reduced.

In a possible implementation manner, the AF entity sends the information of the N grids, including: the AF entity sends the information of the N grids to the PCF entity; or, the AF entity sends the information of the N grids to the access network device ; or, the AF entity sends the information of the N grids to the network device. In the embodiment of the present application, the AF entity can send the information of the N grids to other network elements, so that the other network elements can obtain the information of the N grids synchronously, and can subsequently obtain network resources based on grid granularity Analyze the results, and adjust the network resources of the UE, the communication parameters of the V2X service, or the QoS parameters of the V2X service according to the analysis results of the network resources based on the grid granularity, so as to improve the efficiency of the UE's SL communication and improve the data of the UE's V2X service. The transmission efficiency is reduced, and the delay of V2X service is reduced.

In a possible implementation manner, the above method further includes: the AF entity receiving a network resource analysis result from at least one grid in the N grids of the network device; when the network resource analysis result satisfies a third preset condition, The AF entity sends the QoS parameters of the V2X service to the UE that executes the V2X service provided by the AF entity within the coverage of at least one grid. In the embodiment of the present application, after obtaining the grid granularity-based network resource analysis result, the AF can send the QoS parameters of the V2X service to the UE within the coverage of at least one grid, so as to realize the QoS parameters of the V2X service within the coverage of at least one grid. Adjustment of the QoS parameters of the UE's V2X service.

In a possible implementation manner, the above method further includes: the AF entity sends a second request to the network device, the second request is used for requesting to obtain the network resource analysis result, and the second request carries information of at least one grid. Therefore, in this embodiment of the present application, the AF entity may actively request the network resource analysis result of at least one grid from the network device through the second request, so as to obtain the network resource analysis result of at least one grid based on grid granularity.

In a possible implementation, the network device is a data analysis entity or an NWDAF entity.

A fifth aspect of the present application provides a data processing apparatus, the data processing apparatus having the function of implementing the data processing method of the first aspect. This function can be implemented by hardware or by executing corresponding software by hardware. The hardware or software includes one or more modules corresponding to the above functions. The data processing device specifically includes: a transceiver unit and a processing unit;

a processing unit, configured to obtain information of N grids within a preset range, where N is a positive integer greater than or equal to 1;

a transceiver unit, configured to receive the first side link SL network information from the user equipment UE;

The transceiver unit is further configured to send the identifier of the first grid and the second SL network information related to the first grid to the network device according to the first SL network information, the UE is in the first grid, and the N grids include the first grid. grid.

In a possible implementation manner, the transceiver unit is specifically used for:

receive information from N grids of Policy and Control Function PCF entities; or,

receive information from N grids of data analysis entities; or,

Information is received from N grids of application function AF entities.

In one possible implementation,

The processing unit is specifically configured to perform grid division on the preset range to obtain information of N grids within the preset range.

In a possible implementation manner, the transceiver unit is further used for:

Send information for N grids to the PCF entity; or,

Send the information of N grids to the network device.

In one possible implementation,

a transceiver unit, further configured to receive a network resource analysis result from at least one grid in the N grids of the network device;

The transceiver unit is further configured to send the SL radio bearer configuration to the UE within the coverage of at least one grid when the network resource analysis result satisfies the first preset condition; or,

The processing unit is further configured to allocate network resources to the UE within the coverage of at least one grid according to the network resource analysis result when the network resource analysis result satisfies the first preset condition.

In one possible implementation,

The transceiver unit is further configured to send a first request to the network device, where the first request is used to request to obtain a network resource analysis result;

Wherein, the first request carries information of at least one grid.

In a possible implementation manner, the first request further carries the second SL network information.

In a possible implementation, the network device is a data analysis entity or a network data analysis function NWDAF entity.

In a possible implementation manner, the information of the N grids includes: identifiers of the N grids and coverage information of the N grids.

In a possible implementation, the processing unit is further configured to assign an identifier to each of the N grids.

In a possible implementation manner, the first SL network information includes at least one of the following: UE location information, channel quality information, V2X service information or road information.

In a possible implementation manner, the processing unit is further configured to determine that the UE is in the first grid according to the position of the UE and the information of the N grids.

In a possible implementation manner, the coverage of the first grid is smaller than the coverage of the cell currently accessed by the UE.

A sixth aspect of the present application provides a data processing apparatus, the data processing apparatus having the function of implementing the data processing method of the second aspect. This function can be implemented by hardware or by executing corresponding software by hardware. The hardware or software includes one or more modules corresponding to the above functions. The data processing device includes: a transceiver unit and a processing unit;

A transceiver unit, configured to acquire information of N grids within a preset range, where N is a positive integer greater than or equal to 1;

The transceiver unit is further configured to receive the identifier of the first grid and the second SL network information related to the first grid from the access network device, and the N grids include the first grid;

A processing unit, configured to obtain a network resource analysis result of at least one grid in the N grids according to the information of the N grids, the second SL network information and the identifier of the first grid, where the at least one grid includes the first grid grid.

In a possible implementation manner, the transceiver unit is specifically used for:

The network device receives information from the N grids of PCF entities; or,

The network device receives information from the N grids of access network devices; or,

The network device receives information from the N grids of the AF entity.

In a possible implementation manner, the transceiver unit is further used for:

Send the network resource analysis result to the access network device; or,

send the network resource analysis result to the PCF entity; or,

Send the network resource analysis result to the AF entity.

In a possible implementation manner, the transceiver unit is further used for:

Receive a first request from an access network device, where the first request is used to request to obtain a network resource analysis result, and the first request carries information about at least one grid; or,

A second request from the AF entity is received, where the second request is used for requesting to obtain a network resource analysis result, and the second request carries information of at least one grid.

In a possible implementation, the network device is an NWDAF entity or a data analysis entity.

In a possible implementation, the network device is a data analysis entity,

The processing unit is further configured to preprocess the second SL network information to obtain preprocessed SL network information;

The processing unit is further configured to obtain a network resource analysis result of at least one grid in the N grids according to the information of the N grids, the preprocessed SL network information and the identifier of the first grid.

In one possible implementation,

The processing unit is further configured to perform grid division on the preset range to obtain information of N grids within the preset range.

A seventh aspect of the present application provides a data processing apparatus, the data processing apparatus having the function of implementing the data processing method of the third aspect. This function can be implemented by hardware or by executing corresponding software by hardware. The hardware or software includes one or more modules corresponding to the above functions. The data processing device includes: a transceiver unit and a processing unit;

a processing unit, configured to perform grid division on a preset range, and obtain information of N grids within the preset range, where N is a positive integer greater than or equal to 1;

The transceiver unit is used to transmit the information of the N grids.

In a possible implementation manner, the transceiver unit is specifically used for:

Send the information of the N grids to the access network device; or,

Send information for N grids to the AF entity; or,

Send the information of N grids to the network device.

In one possible implementation,

a transceiver unit, further configured to receive a network resource analysis result from at least one grid in the N grids of the network device;

The transceiver unit is further configured to send the communication parameters of the V2X service to the UE within the coverage of at least one grid when the network resource analysis result satisfies the second preset condition, where the communication parameters of the V2X service include QoS parameters and address information of the V2X service Or at least one item of frequency band information.

In a possible implementation, the network device is a data analysis entity or an NWDAF entity.

An eighth aspect of the present application provides a data processing apparatus, the data processing apparatus having the function of implementing the data processing method of the fourth aspect. This function can be implemented by hardware or by executing corresponding software by hardware. The hardware or software includes one or more modules corresponding to the above functions. The data processing device includes: a transceiver unit and a processing unit;

a processing unit, configured to perform grid division on a preset range, and obtain information of N grids within the preset range, where N is a positive integer greater than or equal to 1;

The transceiver unit is used to transmit the information of the N grids.

In a possible implementation manner, the transceiver unit is specifically used for:

Send information for N grids to the PCF entity; or,

Send the information of the N grids to the access network device; or,

Send the information of N grids to the network device.

In one possible implementation,

a transceiver unit, further configured to receive a network resource analysis result from at least one grid in the N grids of the network device;

The transceiver unit is further configured to send the QoS parameter of the V2X service to the UE executing the V2X service provided by the AF entity within the coverage area of at least one grid when the network resource analysis result satisfies the third preset condition.

In one possible implementation,

The AF entity sends a second request to the network device, where the second request is used to request to obtain a network resource analysis result, and the second request carries information of at least one grid.

In a possible implementation, the network device is a data analysis entity or an NWDAF entity.

A ninth aspect of the embodiments of the present application provides a data processing apparatus, which may include:

A processor, a memory, and an input-output interface, the processor and the memory are connected to the input-output interface; the memory is used to store program codes; the processor executes the first aspect or the first aspect of the present application when calling the program codes in the memory The steps of the method provided by any one of the embodiments in one aspect.

A tenth aspect of the embodiments of the present application provides a data processing apparatus, which may include:

A processor, a memory, and an input-output interface, the processor and the memory are connected to the input-output interface; the memory is used to store program codes; the processor executes the second aspect or the first aspect of the present application when calling the program codes in the memory The steps of the method provided by any embodiment of the second aspect.

An eleventh aspect of the embodiments of the present application provides a data processing apparatus, which may include:

A processor, a memory, and an input-output interface, the processor, the memory are connected to the input-output interface; the memory is used to store program codes; the processor executes the third aspect or the first aspect of the present application when calling the program codes in the memory The steps of the method provided by any one of the three aspects.

A twelfth aspect of an embodiment of the present application provides a data processing apparatus, which may include:

A processor, a memory, and an input-output interface, the processor, the memory are connected to the input-output interface; the memory is used to store program codes; the processor executes the fourth aspect or the first aspect of the present application when calling the program codes in the memory Four aspects are the steps of the method provided by any one of the embodiments.

A thirteenth aspect of an embodiment of the present application provides a data processing apparatus, where the data processing apparatus can be applied to equipment such as network equipment, PCF entities, access network equipment, or AF entities. The data processing apparatus is coupled to a memory and is used for reading and execute the instructions stored in the memory, so that the data processing apparatus implements the steps of the method provided by any one of the first aspect of the first aspect to the fourth aspect of the present application. In one possible design, the data processing device is a chip or a system on a chip.

A fourteenth aspect of the present application provides a chip system, where the chip system includes a processor for supporting a network device, a PCF entity, an access network device, or an AF entity to implement any one of the first to fourth aspects of the present application. Functions involved in any of the embodiments of the first aspect, eg, processing data and/or information involved in the above method. In a possible design, the chip system further includes a memory for storing necessary program instructions and data of the PCF entity, the access network device, the network device or the AF entity. The chip system may be composed of chips, or may include chips and other discrete devices.

Wherein, the processor mentioned in any of the above may be a general-purpose central processing unit (Central Processing Unit, CPU), a microprocessor, an application-specific integrated circuit (application-specific integrated circuit, ASIC), or one or more for An integrated circuit that controls program execution of the data processing methods in the first to fourth aspects above.

A fifteenth aspect of the embodiments of the present application provides a storage medium. It should be noted that the technical solution of the present invention is essentially or a part that contributes to the prior art, or all or part of the technical solution can be produced in software The computer software product is stored in a storage medium for storing computer software instructions used by the above-mentioned device, which includes any one of the first aspects for executing the above-mentioned first aspect to the fourth aspect. One embodiment is a program designed by a data processing apparatus, such as a PCF entity, an access network device, a network device or an AF entity.

The storage medium includes: U disk, mobile hard disk, read-only memory (English abbreviation ROM, English full name: Read-Only Memory), random access memory (English abbreviation: RAM, English full name: Random Access Memory), magnetic disk or CD, etc. Various media that can store program code.

A sixteenth aspect of the embodiments of the present application provides a computer program product including instructions, which, when run on a computer, enables the computer to execute any implementation manner of any one of the first aspects of the first to fourth aspects of the present application the method described.

A seventeenth aspect of an embodiment of the present application provides a communication system, where the communication system includes an access network device, a PCF entity, and a network device;

The access network device may include the data processing apparatus provided in the fifth aspect;

The network device may include the data processing apparatus provided in the sixth aspect;

The PCF entity may include the data processing apparatus provided in the seventh aspect.

In a possible implementation manner, the communication system further includes: an AF entity;

The AF entity may include the data processing apparatus provided in the eighth aspect.

In the method provided in this application, the access network device may acquire information of N grids within a preset range, and receive the first SL network information from the UE. Then, the access network device sends the identifier of the first grid and the second SL network information related to the first grid to the network device according to the first SL network information. Since the access network device provides the network device with grid granularity-based SL network information, the network device obtains grid granularity-based network resource analysis results and adjusts network resources of UEs within the grid coverage.

Description of drawings

1 is a schematic diagram of a network architecture to which the data processing method provided by the present application is applied;

Fig. 2 is a kind of schematic flow chart of the method for data processing provided by this application;

3 is another schematic flowchart of the method for data processing provided by the present application;

Fig. 4 is another schematic flow chart of the method for data processing provided by the present application;

5 is another schematic flowchart of the method for data processing provided by the present application;

6 is another schematic flowchart of the method for data processing provided by the present application;

7A is a schematic diagram of a grid in the data processing method provided by the application;

7B is another schematic diagram of a grid in the data processing method provided by the application;

7C is another schematic diagram of a grid in the data processing method provided by the application;

FIG. 8 is a schematic diagram corresponding to grids and partitions in the data processing method provided by the present application;

Fig. 9 is another schematic diagram corresponding to grid and partition in the method for data processing provided by the present application;

10 is another schematic flowchart of the data processing method provided by the application;

11 is another schematic flowchart of the data processing method provided by the application;

12 is another schematic flowchart of the data processing method provided by the application;

13 is another schematic flowchart of the data processing method provided by the application;

14 is another schematic flowchart of the data processing method provided by the application;

15 is a schematic structural diagram of a data processing apparatus provided by the application;

16 is another schematic structural diagram of the data processing apparatus provided by the application;

17 is another schematic structural diagram of the data processing apparatus provided by the application;

18 is another schematic structural diagram of the data processing apparatus provided by the application;

19 is another schematic structural diagram of the data processing apparatus provided by the application;

20 is another schematic structural diagram of the data processing apparatus provided by the application;

21 is another schematic structural diagram of the data processing apparatus provided by the application;

22 is another schematic structural diagram of the data processing apparatus provided by the application;

23 is a schematic structural diagram of a communication system provided by the application;

FIG. 24 is another schematic structural diagram of the communication system provided by this application.

Detailed ways

The present application provides a data processing method, device and system, which are used to analyze network resources with grids as granularity, and then predict network performance, so as to more accurately predict the network situation where the UE is located, and achieve more accurate to schedule the UE's network resources.

For ease of understanding, some terms involved in the embodiments of the present application are introduced below:

Vehicle-to-everything (V2X): Vehicle information can be provided through sensors mounted on the vehicle or in-vehicle terminal equipment to achieve vehicle-to-vehicle (V2V), vehicle-to-infrastructure (vehicle-to-infrastructure) -infrastructure, V2I), vehicle-to-network (V2N) and vehicle-to-pedestrian (V2P) communication. Therefore, the terminal equipment involved in the Internet of Vehicles can be called V2X terminal equipment.

Side link (side link, SL): a link for direct communication between V2X terminal devices. Short-distance communication between V2X terminal devices may be performed through a sidelink interface, which may also be referred to as a proximity communication 5 (prosecommunication 5, PC5) interface, or a pass-through link interface.

The data processing methods provided in the embodiments of the present application can be applied to various communication networks, for example, can be applied to 5G communication networks, 3G, or 4G communication networks, and can also be applied to future communication networks, for example, 6G networks , 7G network, etc., and the names of the network elements involved in the above are not limited, and can be replaced with the names of network elements with the same or similar functions in future communication networks, which are not limited in this application.

Exemplarily, the data processing method provided in this application can be specifically applied to a V2X communication system, and the communication system can be based on the above-mentioned various communication networks.

The V2X communication system may specifically include, but is not limited to: unified data management (unified data management, UDM) network element, policy control function (policy control function, PCF) entity, network exposure function (network exposure function, NEF) entity, application Function (application function, AF) entity, unified data repository (unified data repository, UDR) network element, access management function (access and mobility management function, AMF) entity, session management function (session management function, SMF) entity, user plane A user plane function (UPF) entity, a radio access network (RAN) device, a network data analysis function (NWDAF) entity (not shown in the figure), a data analysis entity, and the like. And the number of each network element or device may be one or more.

The AMF entity is mainly responsible for the authentication of terminal equipment, the mobility management of terminal equipment, the selection of network slices, and the selection of session management functional entities. In the embodiments of the present application, the AMF entity may forward the data sent or received by the PCF entity, which will not be repeated in the following embodiments of the present application.

The PCF entity is mainly responsible for providing policy rules to the network entity. Including providing a unified policy framework to control network behavior, or providing policy rules to control layer network functions, and responsible for obtaining user subscription information related to policy decisions. It is used to manage network behavior, provide policies and rules for the control plane, and generally make policy decisions based on contract information.

The RAN may be a network composed of multiple RAN devices to implement functions of the wireless physical layer, resource scheduling and wireless resource management, wireless access control, and mobility management functions. The RAN equipment is connected to the UPF entity through the user plane interface N3, and is used to transmit the data of the terminal equipment. The RAN device establishes a control plane signaling connection with the AMF entity through the control plane interface N2 to implement functions such as radio access bearer control. Wherein, FIG. 1 of the present application shows the wireless access network equipment, that is, the RAN equipment, which can also be replaced with wired access network equipment. In FIG. 1, only the RAN equipment is used for exemplary illustration, and in the following description of this application , directly referred to as access network equipment, including RAN equipment and wired access network equipment. Specifically, the access network device may be a device with a central control function, such as a macro base station, a micro base station, a hotspot (pico), a home base station (femeto), a transmission point (TP), a relay (relay), a Access point (access point, AP), etc. If the access network device is a base station, the base station may be a base station (eNodeB, eNB) in long term evolution (LTE), a base station (gNodeB, gNB) in new radio (NR), and the like.

User equipment (user equipment, UE) is used to provide voice/data connectivity to users, for example, a handheld device or a vehicle-mounted device with a wireless connection function. It may also include a smart mobile phone, a mobile station (mobile station, MS), a mobile terminal (mobile terminal, MT), etc., which may also be referred to as terminal equipment hereinafter.

The UPF entity, as an anchor point of a protocol data unit (protocol data unit, PDU) session connection, is responsible for data packet filtering, data transmission/forwarding, rate control, and generation of charging information for the user equipment.

The UDM network element mainly manages and controls user data. For example, the management of subscription information may include: obtaining subscription information from the UDR network element and providing it to other network elements (such as AMF entities), generating 3GPP authentication credentials for the terminal device, and registering and maintaining the network element currently serving the terminal device.

The UDR network element is mainly used to store user data. The user data may include subscription data invoked by the UDM network element, policy information invoked by the PCF entity, structured data for capability opening, and application data invoked by the NEF entity.

The NEF entity is used to connect other internal network elements of the core network and external application servers of the core network, and to provide services such as authentication and data forwarding when the external application servers initiate service requests to the core network, so as to provide network capability information to the external application servers, or Provide the information of the external application server to the core network element. In the embodiments of the present application, when the AF entity performs data transmission with core network network elements or access network devices, for example, PCF entities, access network devices, data analysis entities, NWDAF entities, etc., the NEF entity may forward. Specifically, when the AF entity sends data to the core network element or access network equipment, etc., the NEF entity can perform security authentication on the data (the NEF authenticates the AF identifier carried in the message sent by the AF, confirming that the AF is operating Commercially trusted AF), identity conversion (messages sent by AF may carry external identifiers, such as the user identifier to be served or the operation identifier of the message, etc. NEF needs to convert these external identifiers into internal identifiers recognized by core network elements ) and other steps, so that the core network element or the access network device can safely and correctly receive the data sent by the AF entity. The AF approved by the operator can directly send the message to the PCF entity through the NEF or store the message in the UDR or UDM network element through the NEF, and then the PCF entity can read or receive these messages in the UDR or UDM network element. The core network Which method the network element uses to obtain the AF message is determined by the operator in actual deployment. When the AF needs to send messages to the access network device or to the UE through the core network element, the PCF entity needs to send these messages to the access network device through the AMF entity or the PCF entity through the AMF entity and then through the access network device. The network device sends it to the UE. The specific steps will not be repeated in the following embodiments of the present application.

The SMF entity is mainly responsible for the control plane functions of UE session management, including UPF selection, IP address allocation, session QoS management, acquisition of policy control and charging (policy control and charging, PCC) policies (from the PCF entity).

The AF entity, the AF entity is specifically the application server corresponding to the application. With application service function, it interacts with core network elements to provide services for terminal equipment. For example, interact with the PCF entity to perform service policy control, or interact with the NEF entity to obtain network capability information or provide application information to the network, or interact with the PCF entity to provide data network access point information to the PCF entity for use. The PCF entity generates routing information of the corresponding data service.

The NWDAF entity is used to analyze and predict the data of core network elements.

The data analysis entity can be used to perform data analysis and prediction on the information of the base station. The data analysis entity may be specifically deployed in the access network device, or may be an independent device deployed on the access network side. In this application, the data analysis entity may implement part of the functions of the access network device, and the data analysis entity may also implement part of the functions of the NWDAF entity.

In addition, in addition to the network elements included in FIG. 1, the V2X communication system may also include other network elements (not shown in the figure), such as Authentication Server Function (AUSF), network slice Selection functions (Network Slice Selection Function, NSSF), etc., the embodiments of the present application are only exemplary descriptions, and may be adjusted according to actual application scenarios.

Exemplarily, a specific application scenario is described by taking the access network device as a base station as an example. For example, in a V2X communication scenario, the UE performs SL communication through the PC5 interface, and the SL carries important services, such as safety services, and sensor sharing services for autonomous driving. And different from the Uu interface communication, the base station can directly obtain the network resource status of the UE within its coverage, such as channel quality, congestion and the like. In the PC5 interface communication between the UE and the UE, the base station cannot directly obtain the communication quality of the PC5 interface of the UE within its coverage, such as channel quality parameters and congestion situation information. Estimating the performance of the network according to the channel quality reported by the current UE can only determine the network condition of the current location of the UE. After the UE reports the SL network information, as the position of the UE moves, the SL network information at the location of the UE has changed. The base station cannot accurately allocate or adjust the SL network information for the UE according to the SL network information reported by the UE Internet resources. Therefore, the embodiments of the present application provide a data processing method, which can more accurately adjust network resources for UE to perform SL communication.

The data processing method provided by the present application will be described below based on the network architecture of FIG. 1 above.

Referring to FIG. 2 , an embodiment of the present application provides a data processing method, which is specifically described as follows.

201. The access network device acquires information of N grids within a preset range.

The preset range may be a range set based on a cell, a sector or a base station, or a range set based on a map. For example, the preset range is a road area in the map, or, when the access network device is one or more base stations, the preset range is one or more cells under the one or more base stations, or, When the access network device is one or more base stations, the preset range is all or part of sectors under the one or more base stations. Wherein, a cell under the base station may be divided into one or more sectors.

The N grids may be grids obtained by dividing the preset range, and N is a positive integer greater than or equal to 1. The division of the grid can take various granularities. For example, the granularity is divided into the coverage of the cell with the minimum coverage within the preset range, so that the coverage of each grid is smaller than the minimum coverage. For another example, the granularity is the coverage of the smallest sector of the base station within the preset range, so that the coverage of each grid is smaller than the coverage of the smallest sector.

Wherein, the information of the N grids may include: the identification and coverage information of each grid in the N grids. The coverage size of each grid in the N grids may be the same or different.

The coverage information of each grid may include: the length and width of each grid, or the length, width and altitude of each grid. The raster identifier can be used to uniquely identify a raster, for example, the raster name. It should be pointed out that there are many situations in the coverage of each grid in the N grids. For example, the size of the coverage of each grid may be a preset value, that is, the coverage of each grid The ranges are all the same size. The coverage size of each grid may also be different, or, the coverage size of some grids in the N grids may also be the same.

Typically, the coverage of each raster can be divided into smaller ranges. For example, the coverage size of each grid is smaller than the coverage size of the smallest cell under the base station, or the coverage size of each grid is smaller than the average coverage size of multiple cells under the base station, or, the The coverage size of each grid is smaller than the coverage size of the smallest sector under the base station, etc., so that when the network device analyzes network resources in the future, it can be based on a smaller granularity than the cell, or more than the minimum sector granularity. Small grid granularity is used for analysis to improve the accuracy of the analysis results of network resources.

The above-mentioned network device and the network device in the following embodiments of the present application may be the NWDAF entity or the data analysis entity in FIG. 1 , which will not be repeated in the following embodiments of the present application.

Wherein, step 201 can be implemented in various ways, as follows.

Manner 1, the access network device may receive the information of the N grids from other network elements.

Wherein, the other network element may be a PCF entity, the above-mentioned network device, or an AF entity, which is not limited.

For example, the PCF entity divides the preset range to obtain N grids, and sends the information of the N grids to the access network device, and then the access network device receives the information of the N grids from the PCF entity.

For another example, the data analysis entity may divide the preset range to obtain N grids, and send the information of the N grids to the access network device, and the access network device receives the information of the N grids from the data analysis entity. .

For another example, the AF entity may divide the preset range to obtain N grids, and send the information of the N grids to the access network device, and the access network device receives the information of the N grids from the AF entity.

In a second manner, the access network device divides the preset range into grids to obtain information of N grids within the preset range.

In an example, the access network device acquires the information of the map, and the preset range may be a part of the area or the whole area in the map. The access network device may divide the preset range based on the information of the map, obtain N grids within the preset scope, and assign an identifier to each grid in the N grids, thereby obtaining N grids grid information.

The information of the map may include information of geographic locations within the preset range, for example, the map may include roads, mountains, buildings, and the like within the preset range. The map information may be stored on the access network device, or may be sent to the access network device by other network elements. For example, the map information may be stored by an application server (AS) or a UDR network element. sent to the access network equipment.

Wherein, the access network device divides the preset range based on the information of the map, which may be divided according to the preset size, for example, the length of each grid is 20 meters and the width is 15 meters.

It should be noted that, if the above-mentioned method 2 is adopted, the above-mentioned method may further include: the access network device sends the information of the N grids to other network elements, for example, the PCF entity, the NWDAF entity, the AF entity or the data analysis entity , without restriction.

202. The access network device receives the first SL network information from the UE.

The access network device may receive first SL network information from one or more UEs.

Specifically, the first SL network information may include at least one of the following: UE location information, channel quality information, V2X service information, or road information, and the like.

Wherein, the location information of the UE may include the longitude, latitude, altitude, etc. of the location where the UE is located.

The channel quality information may include information representing the communication quality of the UE currently performing SL communication, and may specifically include channel quality reference information, or channel busy ratio (channel busy ratio, CBR) information, and the like. The channel quality reference information may include: information used to measure the channel quality corresponding to the data transmission of the V2X service based on the PC5 interface, for example, block error rate (block error rate, BLER), signal to interference plus noise (signal to interference plus noise) ratio, SINR), received power, etc.

The V2X service information may include relevant information of the V2X service currently executed by the UE, for example, the service type of the V2X service, the occupancy of the channel used to transmit the data of the V2X service, the data packet priority of the V2X service, the Communication parameters of the V2X service, interface information corresponding to the V2X service, etc. Specifically, the communication parameters of the V2X service may include: the level of the PC5 resource of the V2X service or the PC5 quality of service identifier (PC5 QoS identifier, PQI) of the V2X service, etc.; the interface information corresponding to the V2X service may include: used for transmitting the V2X The type or identification of the communication interface of the business data, etc.

Wherein, the road information may include the situation of the road where the UE is currently located, for example, the road information includes the traffic flow density, vehicle speed and the like within a certain range around the location of the UE on the current road. Wherein, the certain range may be on the road, with the position of the UE as the center, and the length of the range of 100 meters before and after the position of the UE. The road information may also include road condition information collected by sensors or cameras on the UE, for example, road images, temperature, humidity, visibility, and the like.

In an optional implementation manner, the first SL network information further includes time information, that is, the collection time of the first SL network information, so that the access network device determines the first SL network information according to the collection time of the first SL network information. Whether a SL network information is available, or the available weights. This time information may also be referred to as a time stamp hereinafter. For example, the access network device may acquire the collection time of the first SL network information according to the time stamp, so as to determine whether the first SL network information has expired according to the collection time. If the difference between the collection time of the first SL network information and the current time is greater than a preset time value, the first SL network information may be discarded.

It should be noted that the UE may periodically report the first SL network information, so that the access network device may acquire the SL network information of the UE in real time. Furthermore, the access network device may obtain information on the communication quality of the SL communication performed by the UE according to the first SL network information reported by the UE, so as to perform network resource adjustment or network resource allocation for the UE.

203. The access network device sends the identifier of the first grid and the second SL network information related to the first grid to the network device according to the first SL network information.

The first grid is the grid where the UE is located, that is, the UE is located in the first grid. The N grids include the first grid, in other words, the first grid is one or more of the N grids.

The second SL network information related to the first grid may refer to SL communication information related to the one or more grids. For example, the second SL network information may include: identifiers of UEs within the first grid, channel quality information within the coverage of the first grid, and V2X service information of one or more UEs within the coverage of the first grid Or road information within the coverage area of the first grid, etc. The channel quality information, V2X service information, and road information can all refer to the relevant description in step 202 .

Wherein, the first SL network information and the second SL network information may be the same or different.

Wherein, when the first SL network information is the same as the second SL network information, step 203 may include: using the first SL network information as the second SL network information, and sending the identification of the first grid and the first grid to the network device 2. SL network information.

When the first SL network information is different from the second SL network information, step 203 may include: the access network device obtains the second SL network information according to the first SL network information, and sends the identifier of the first grid to the network device and the second SL network information.

Wherein, the access network device may obtain the second SL network information according to the first SL network information in two ways.

Manner 1: The access network device preprocesses the first SL network information to obtain the second SL network information.

Exemplarily, if the access network device receives a set of first SL network information, it may add, delete or modify part of data in the set of first SL network information to obtain second SL network information. If the access network device receives multiple sets of first SL network information, and the access network device receives multiple sets of first SL network information, if the information includes different frequency bands (or channels), different roads or different locations, etc. Different information included in the multiple sets of first SL network information is classified and combined (for example, the first SL network information of the same location and different frequency bands is classified and combined, or the first SL network information of different locations of the same frequency band is classified and combined, etc.). The access network device may also calculate the parameters included in the multiple first SL network information to obtain the second SL network information. For example, the parameters used to measure the channel quality of the same channel included in the multiple sets of first SL network information, such as block error rate (block error rate, BLER), signal to interference plus noise ratio (signal to interference plus noise ratio, SINR), received power, etc., perform a weighted or average operation to obtain the calculated parameters, and then obtain the second SL network information, where the second SL network information includes the calculated parameters. In this embodiment of the present application, the second SL network information can be obtained by preprocessing the first SL network information, thereby reducing the redundancy of the second SL network information sent by the access network device to the network device, and improving the subsequent network information. Efficiency with which the device performs network resource analysis based on the second SL network information.

Manner 2: The access network device sends the first SL network information to the data analysis entity, the data analysis entity preprocesses the first SL network information to obtain the second SL network information, and sends the second SL network information to the access network device.

In addition, in step 203, the access network device may determine that the UE is located in the first grid according to the location of the UE and the information of the N grids. The location of the UE may be reported by the UE, for example, reported through the first SL network information, or obtained by the access network device locating the UE, or the access network device may obtain it from other network elements, not be restricted.

In a specific implementation manner, the coverage of the first grid is smaller than the coverage of the cell currently accessed by the UE, that is, the granularity of the first grid is smaller than the granularity of the cell. The access network device sends the SL network information of the first grid, for example, the second SL network information to the network device, for the network device to obtain the network resource analysis result based on the first grid. Since the first grid has smaller granularity than cells, the accuracy of the network resource analysis result based on the first grid is higher, and the method shown in FIG. 2 can greatly improve the accuracy of the network resource analysis result.

In the method provided by the embodiment of the present application, the access network device may acquire information of N grids within a preset range, and receive the first SL network information from the UE. Then, according to the first SL network information, the access network device sends the identifier of the first grid and the second SL network information related to the first grid to the network device, which are used for the network device to analyze the network resources and obtain the network resource analysis. result. Since the access network device provides the SL network information based on the grid granularity, the network device can analyze the network resources based on the grid granularity, so that the access network device can more accurately adjust the grid coverage according to the network resources. The UE can use the network resources that adapt to the change of the communication quality of the SL communication to perform the SL communication, improve the efficiency of the UE’s SL communication, reduce the delay of the UE’s SL communication, and avoid the occurrence of channels when the UE performs the SL communication. congestion situation. In addition, the granularity of the foregoing grid may be smaller than the cell granularity, sector granularity, etc. Therefore, the access network device may adjust the network resources of the UE based on the grid granularity according to the network resource analysis result of the grid granularity, so as to improve the adjustment of the network resources of the UE. The accuracy of the UE can achieve more accurate adjustment of the UE's network resources.

In a possible implementation manner, after the foregoing step 203, the foregoing method further includes: the access network device sends a first request to the network device.

Wherein, the first request is used for requesting to obtain the network resource analysis result of at least one grid. Moreover, the first request may carry the information of the at least one grid. For example, the first request may carry information such as the identifier and coverage of the at least one grid.

Wherein, the network resource analysis result of the at least one grid is an analysis result of the network resource of the at least one grid. The at least one grid may be located within the coverage area of the access network device.

In a possible implementation manner, the above-mentioned first request further carries the second SL network information in the above-mentioned step 203 .

In another possible implementation manner, in the foregoing step 203, a specific manner for the access network device to send the second SL network information to the network device may be: the access network device sends a first request to the network device.

Wherein, the first request is used for requesting to obtain the network resource analysis result of at least one grid. In addition, the first request carries the information of the at least one grid and the second SL network information in the foregoing step 203 .

In a possible implementation manner, after the foregoing step 203, or after the access network device sends the foregoing first request to the network device, the foregoing method further includes:

The access network device receives a network resource analysis result from at least one grid in the N grids of the network device;

When the network resource analysis result satisfies the first preset condition, the access network device sends the SL radio bearer configuration to the UE within the coverage of the at least one grid; or,

When the network resource analysis result satisfies the first preset condition, the access network device allocates network resources to the UE within the at least one grid range according to the network resource analysis result.

The network resource analysis result of the at least one grid may include: the QoS level supported by the SL communication in the at least one grid, the congestion level of the SL communication in the at least one grid, the SL communication in the at least one grid The QoS key performance indicator (key performance indicator, KPI) that the communication satisfies or adjustment indication information, etc.

Specifically, the QoS level may include a PC5 quality of service identifier (PC5 QoS identifier, PQI). The PQI may be composed of multiple QoS parameters, such as delay, packet loss rate, priority, and the like.

Wherein, the congestion degree of SL communication in the at least one grid can be used to characterize the congestion situation of SL communication in the at least one grid. The network device may determine the congestion level of the SL communication in the at least one grid according to the number of UEs performing the V2X service or the channel occupancy in the at least one grid. Further, the network device may also combine parameters related to channel quality, such as SINR, received power, BLER and other parameters, to determine the degree of congestion of the SL communication in the at least one grid.

The QoS KPI may include: delay or packet loss rate, etc. Specifically, the delay may include an average delay or a maximum delay supported by each grid in the at least one grid, and the like. The packet loss rate may include: a maximum packet loss rate or an average packet loss rate of data transmission within the coverage area of the at least one grid.

The adjustment indication information may be resource adjustment indication information, which is used to indicate that network resources used by UEs within the coverage of the at least one grid need to be adjusted when performing SL communication.

The first preset condition may be: the parameter value in the network resource analysis result is within the first preset range, or the network resource analysis result includes the above-mentioned resource adjustment indication information, which is not limited. For example, if the network resource analysis result carries the QoS level supported by the SL communication in at least one grid range, correspondingly, the first preset condition includes: the QoS level currently supported by the SL communication within the at least one grid coverage area is low The QoS level of the V2X service of the UE within the range of the at least one grid. For another example, the first preset condition includes: the above-mentioned resource adjustment indication information is carried in the network resource analysis result.

Wherein, when the access network device sends the SL radio bearer configuration to the UE within the coverage of the at least one grid, the SL radio bearer configuration may include information about the network resources available to the UE, for example, the frequency of the PC5 resources available to the UE information, time domain information, and interface information (for example, the type or identifier of the interface, etc.) that supports V2X service data transmission in the PC5 resources available to the UE. Further, the UE may select the available network resources according to the information of the network resources available to the UE carried in the SL radio bearer configuration. It can be understood that the access network device can send the SL radio bearer configuration to the UE within the coverage of the at least one grid to notify the UE which PC5 resources are available, and the UE can select the available PC5 resources according to the SL radio bearer configuration. SL Communications.

Wherein, in the case that the access network device allocates network resources to UEs within the at least one grid range according to the network resource analysis result, the access network device may use the control channel to provide the at least one grid The information of the network resources allocated by the UEs within the coverage area is sent to the UEs within the coverage area of the at least one grid. Specifically, the access network device may, according to at least one grid range carried in the network resource analysis result, support the QoS level of SL communication, the congestion level of SL communication, the QoS KPI satisfied by SL communication, etc., from the at least one grid Among the network resources within the coverage, network resources corresponding to the communication parameters of the UE's V2X service within the coverage of the at least one grid are determined, and network resources are allocated to the UE within the coverage of the at least one grid.

Specifically, the information of the network resources allocated to the UE within the coverage of the at least one grid may include: frequency band information, time domain information of the network resources allocated by the access network device to the UE, and interface information supporting the transmission of V2X service data (for example, the type or identity of the interface). Further, the UE updates the current network resource configuration of the UE according to the received network resource information from the access network device, and then the UE uses the network resources allocated by the access network device to perform SL communication.

For example, when the access network device determines that channel congestion occurs in a certain frequency band according to the network resource result, the access network device can avoid the frequency band where the channel congestion occurs when allocating network resources to the UE, thereby avoiding the occurrence of channel congestion in the UE. The SL communication is performed in the frequency band with channel congestion, which reduces the time delay of the UE performing the SL communication and improves the efficiency of the UE performing the SL communication.

For another example, if the above-mentioned resource adjustment indication information is carried in the network resource analysis result, the access network device allocates the UEs within the coverage of each grid according to the network resources of each grid in the at least one grid. The network resources used in SL communication, so that the network resources for UEs within the coverage of each grid to perform SL communication can be allocated by the access network device, so that the access network device can perform SL communication based on grid granularity. The network resources of the SL communication are scheduled to avoid channel congestion caused by the UE's self-selecting of network resources.

In another specific implementation manner, when the above-mentioned network device is an NWDAF entity, and the data analysis entity is a device deployed independently of the access network device, the above-mentioned step 201 or step 203 may also be performed by the data analysis entity, The workload of the access network equipment can be reduced.

Referring to FIG. 3 , an embodiment of the present application provides another data processing method, which is specifically described as follows.

301. The network device acquires information of N grids within a preset range.

Wherein, for the information of the N grids within the preset range, reference may be made to the relevant description in the foregoing step 201, and details are not repeated here.

Wherein, step 301 can be implemented in various ways, as described below.

Manner 1: The network device receives information of N grids from other network elements, and the other network elements may be PCF entities, access network devices, or AF entities, which are not limited.

For example, the PCF entity divides the preset range to obtain N grids, and sends the information of the N grids to the network device, and then the network device receives the information of the N grids from the PCF entity.

For another example, the access network device may divide the preset range to obtain N grids, and send the information of the N grids to the network device, and then the network device receives the information of the N grids from the data analysis entity.

For another example, the AF entity may divide the preset range to obtain N grids, and send the information of the N grids to the network device, and then the network device receives the information of the N grids from the AF entity.

Manner 2: When the network device is a data analysis entity, the network device divides the preset range into grids to obtain information about N grids within the preset range.

Specifically, the manner in which the data analysis entity divides the preset range into a grid may be similar to the second manner in the foregoing step 202, and the access network device therein may be replaced by the data analysis entity, which will not be repeated here.

It should be noted that, if step 301 can be implemented by the above-mentioned method 2, after step 301, the method may further include: the data analysis entity sends the information of the N grids to other network elements, for example, the access network Device, PCF entity, NWDAF entity or AF entity, without limitation.

302. The network device receives the identifier of the first grid and the second SL network information related to the first grid from the access network device.

Wherein, the N grids described in step 301 include the first grid, and the first grid may be one or more of the N grids.

In a possible implementation manner, when the information of the N grids received by the network device comes from the access network device, the network device can simultaneously receive the information of the N grids from the access network device through the same message, The identification of the first grid and the second SL network information. It can also be understood that the access network device may send the information of the N grids, the identifier of the first grid, and the second SL network information to the network device through the same message. For example, the access network device may send a first message to the network device, where the first message carries the information of the N grids, the identifier of the first grid, and the second SL network information.

For details of the second SL network information, reference may be made to the relevant description in the foregoing step 203 .

303. The network device obtains a network resource analysis result of at least one grid in the N grids according to the information of the N grids, the second SL network information, and the identifier of the first grid.

The network device may analyze the network resources of at least one grid in the N grids according to the information of the N grids, the second SL network information and the identifier of the first grid, and obtain the information of the at least one grid. Network resource analysis results.

Wherein, the at least one grid includes a first grid. For example, the at least one grid may include a first grid and grids adjacent to the first grid.

Specifically, after obtaining the identifier of the first grid and the second SL network information, the network device may determine that the second SL network information is related to the first grid based on the identifier of the first grid. Then, the network device obtains at least one grid network resource analysis result based on the second SL network information and through a preset algorithm.

The preset algorithm may be a Kalman filter algorithm or a neural network algorithm or the like. For example, when the preset algorithm is a neural network algorithm, the number of UEs within the coverage of the first grid included in the second SL network information, the V2X service information performed by the UEs within the coverage of the first grid, One or more items of channel quality information within the coverage area of the first grid or road information within the coverage area of the first grid are used as inputs to the neural network algorithm, and network resource analysis results of at least one grid are output.

For the network resource analysis result, reference may be made to the relevant description in the foregoing step 203 .

In the method provided by the embodiment of the present application, the network device receives information of N grids and second SL network information related to the first grid. Therefore, the access network device can send the second SL network information to the network device based on the grid granularity, and the network device can obtain the network resource analysis result of at least one grid based on the grid granularity. Therefore, the network resources of the UE within the coverage of the grid can be accurately adjusted based on the network resource analysis result of the grid granularity. Further, the UE can use the adjusted network resources to perform SL communication, thereby improving the efficiency of the UE performing SL communication. , reducing the delay of the UE performing SL communication. In addition, the granularity of the grid in the embodiment of the present application is relatively small, for example, the granularity of the grid may be smaller than the granularity of the cell, the granularity of the sector, etc. Therefore, the network device may obtain the grid-based second SL network information based on the grid-based second SL network information. Network resource analysis results with grid granularity, the obtained network resource analysis results are more accurate. Further, when adjusting the network resources of the UE, the communication parameters of the V2X service or the QoS parameters of the V2X service, etc. based on the network resource analysis results, it can be adjusted according to the More accurate network resource analysis results Adjust the UE's network resources, V2X service communication parameters or V2X service QoS parameters, improve the accuracy of adjusting UE's network resources, V2X service communication parameters or V2X service QoS parameters, and realize the more accurate adjustment of network resources, communication parameters of V2X services or QoS parameters of V2X services.

In a possible implementation manner, when the network device is a data analysis entity, step 303 may include: the data analysis entity preprocesses the second SL network information to obtain preprocessed SL network information. Then, based on the preprocessed SL network information, the information of the N grids, and the identifier of the first grid, analyze the network resources of at least one grid in the N grids, and obtain the network resource analysis result of the at least one grid .

Wherein, for the manner of preprocessing the second SL network information by the data analysis entity, reference may be made to the manner in which the access network device preprocesses the first SL network information in the foregoing step 203, which will not be repeated here.

In a possible implementation manner, after step 303, the above method further includes:

The network device sends the network resource analysis result of the at least one grid to other network elements, for example, the access network device, the PCF entity or the AF entity, etc., which is not limited.

In a possible implementation manner, before or after step 303, the above method further includes: the network device receives a first request from the access network device, where the first request is used to request to obtain the network resource analysis result, and the The first request carries information of the at least one grid, for example, an identifier of the at least one grid, coverage information, and the like. After step 303, or if the network device receives the first request after step 303, after the network device receives the first request, the network device also sends the network resource analysis result to the access network device. Therefore, in this embodiment of the present application, the access network device may request the network device for the network resource analysis result of the at least one grid according to requirements, so that the access network device can, according to the network resource analysis result of the at least one grid, perform an The UEs within the coverage of the at least one grid perform network resource adjustment or allocation, and the like.

In another possible implementation manner, before or after step 303, the above method further includes: the network device further receives a second request from the AF entity, where the second request is used for requesting to obtain the network resource analysis result, and the The second request carries the information of the at least one grid, for example, the identifier of the at least one grid, coverage information, and the like. After step 303, or if the network device receives the second request after step 303, after the network device receives the first request, the network device also sends the network resource analysis result to the AF entity. In this embodiment of the present application, the AF entity may request the network device for the network resource analysis result of the at least one grid according to requirements, so that the AF entity may adjust the at least one grid according to the network resource analysis result of the at least one grid QoS parameters of some V2X services of the UE within the coverage area, etc.

Referring to FIG. 4 , an embodiment of the present application provides another data processing method, which is specifically described as follows.

401. The PCF entity performs grid division on a preset range to obtain information of N grids within the preset range.

Wherein, the PCF entity may perform grid division on the preset range to obtain information of N grids, and the information of the N grids may refer to the relevant description in the foregoing step 201 .

Specifically, for the way that the PCF entity divides the preset range, refer to the way that the access network device divides the preset range in the second method of step 202 to obtain the relevant description of the information of the N grids, and divide the access network equipment into the information of the N grids. It is sufficient to replace the network device with a PCF entity, which will not be repeated here.

402. The PCF entity sends the information of the N grids.

The PCF entity may send the information of the N grids to other network elements. The other network elements may include: AF entities, access network equipment or network equipment, etc., which are not limited.

In the method provided by this embodiment of the present application, the PCF entity may divide the preset range into grids to obtain N grids, and send the information of the N grids to other network elements, so that other network elements can know the grids The result of division. The network device can obtain the network resource analysis result of at least one grid based on the grid granularity, and then can accurately adjust the communication parameters of the V2X service of the UE based on the granularity of the grid, so that the UE can use the communication of the adjusted VX service. Parameter for V2X business, improve the efficiency of V2X business, reduce the delay of V2X business.

In a possible implementation manner, after step 402, the above method further includes: the PCF entity receives the network resource analysis result of at least one grid in the N grids from the network device, and the network resource analysis result can refer to the above Relevant description in step 203.

And, when the network resource analysis result satisfies the second preset condition, the PCF entity may send the communication parameters of the V2X service to the UE within the coverage of the at least one grid, and the communication parameters of the V2X service may include the QoS parameters of the V2X service , at least one of address information or frequency band information.

Wherein, the QoS parameters may include one or more of the following: PC5 QoS identifier (PC5 QoS identifier, PQI), used to indicate the QoS requirements of the UE; PC5 priority information (PC5 priority level), used to indicate the sending of V2X service messages Priority); PC5 Guaranteed Flow Bite Rate (GFBR); PC5 Maximum Flow Bite Rate (MFBR); Packet Error Rate (packet error rate), used to indicate the packets that can be received error probability, etc. The QoS parameter may be generated by the PCF entity for the UE within the coverage of the at least one grid, or the PCF entity may receive the QoS parameter from one or more AF entities, or the PCF entity may receive the QoS parameter from one or more AF entities Some parameters in this QoS parameter. The address information may include address information that the UE can use when performing the V2X service. For example, the address information may include a specific address that can be accessed by one of the V2X services of the UE. The frequency band information is the information of the frequency band that the UE can use when performing the V2X service.

In addition, when the network resource analysis result satisfies the second preset condition, the PCF entity may also send a control policy to the UE within the coverage of the at least one grid, where the control policy is used to adjust the data used when the UE transmits the data of the V2X service interface. For example, the control policy can be used to assign the UE to use the PC5 interface to transmit V2X service data in the first frequency band, and to use the Uu interface to transmit V2X service data in the second frequency band. Alternatively, the UE can use the PC5 interface to transmit V2X data in the first time period. Service data, the Uu port can be used to transmit V2X service data and so on in the second time period.

The second preset condition may be: the parameter value in the network resource analysis result is within the second preset range, or the network resource analysis result includes adjustment indication information and the like.

The adjustment indication information may be communication parameter adjustment indication information of the V2X service, and the communication parameter adjustment indication information of the V2X service is used to indicate that the communication parameters of the V2X service of the UE within the coverage of the at least one grid need to be adjusted.

The second preset condition may be the same as or different from the first preset condition described in step 203 above.

Therefore, in this embodiment of the present application, the PCF entity can deliver the communication parameters of the V2X service to UEs within the coverage of at least one grid according to the network resource analysis result from at least one grid of the network device, so as to adjust the at least one grid. Communication parameters of the V2X service of the UE within the coverage of one grid, or the PCF entity may also issue a control policy to the UE within the coverage of the at least one grid, so as to control the UE within the coverage of the at least one grid to perform The interface used for data transmission of V2X services. Further, the UE can perform the V2X service according to the communication parameters or control policies of the V2X service delivered by the PCF entity, which can improve the efficiency of the data transmission of the V2X service by the UE and reduce the delay of the data transmission of the V2X service by the UE.

Referring to FIG. 5 , an embodiment of the present application provides another data processing method, which is specifically described as follows.

501. The AF entity divides a preset range into grids to obtain information of N grids within the preset range.

The AF entity may divide the preset range into grids to obtain information of N grids. For the information of the N grids, reference may be made to the relevant description in 201 above, and details are not repeated here.

Specifically, the manner in which the AF entity divides the preset range may be similar to the manner in which the access network device divides the preset range in the second method of step 202 to obtain information of N grids, and divides the access network device into the information of the N grids. It is sufficient to replace it with an AF entity, which will not be repeated here.

502. The AF entity sends the information of the N grids.

The AF entity may send the information of the N grids to other network elements, and the other network elements may include: access network equipment, NWDAF entity or PCF entity, etc., which are not limited.

In the embodiment of the present application, the AF entity may divide the preset range into grids to obtain N grids, and send the information of the N grids to other network elements, such as network equipment, access network equipment, etc. . This enables other network elements to know the result of grid division. In addition, the network device can obtain the network resource analysis result of at least one grid based on the grid granularity, and can further realize the adjustment of the QoS parameters of the V2X service of the UE based on the grid granularity. Further, the UE can use the adjusted QoS parameters of the V2X service to perform the V2X service, thereby improving the efficiency of the V2X service and reducing the delay of the V2X service.

In an implementation manner, after step 502, or before the AF entity described in the foregoing step 502 receives the network resource analysis result from at least one grid of the N grids of the network device, the above method further includes: : The AF entity sends a second request to the network device.

Wherein, the second request is used to request to obtain the network resource analysis result, and the second request carries information of at least one grid, for example, the identifier of the at least one grid, coverage information, and the like.

In a possible implementation manner, after step 501, or after the AF entity sends the second request to the network device, the above method further includes: the AF entity receives at least one grid from the N grids from the network device The results of network resource analysis. When the network resource analysis result satisfies the third preset condition, the AF entity sends the QoS parameter of the V2X service to the UE in the at least one grid that performs the V2X service provided by the AF entity. For the QoS parameters of the V2X service, reference may be made to the relevant description in step 402 above.

Wherein, the third preset condition may include: the parameter value in the network resource analysis result is in a third preset range, or the network resource analysis result includes adjustment indication information and the like.

Wherein, the third preset condition may be the same as or different from the first preset condition or the second preset condition.

The adjustment indication information may include QoS parameter adjustment indication information of the V2X service. The QoS parameter adjustment indication information of the V2X service is used to indicate that the QoS parameters of the V2X service of the UE within the coverage of the at least one grid need to be adjusted.

Therefore, in the embodiment of the present application, the AF entity may adjust the QoS parameters of the V2X service of the UE within the coverage of the at least one grid according to the network resource analysis result of the at least one grid from the network device, so that the UE can The V2X service is performed by using the QoS parameters that better match the channel quality of the SL communication, so that the UE can use the QoS parameters of the V2X service delivered by the AF to perform the V2X service.

In another implementation manner, when the network resource analysis result satisfies the third preset condition, the AF entity can also send the QoS parameters of the V2X service to the PCF entity through the NEF entity, and the PCF entity can send the QoS parameters of the V2X service to the PCF entity. The parameters are sent to the UE in the at least one grid that performs the V2X service provided by the AF entity through the AMF entity, so that the AF entity can indirectly adjust the QoS parameters of the V2X service of the UE within the coverage of the at least one grid through the PCF entity. .

Based on the data processing methods provided in the above-mentioned FIGS. 2-5 , the data processing methods provided by the present application will be further described below.

601. The access network device performs map rasterization.

Wherein, the access network device divides the preset range into grids based on the information of the map, and obtains information of N grids within the preset range, where N is a positive integer greater than or equal to 1. Wherein, for the rasterization of the map in step 601, reference may be made to the relevant description in the second method in step 202 above.

Specifically, the access network device obtains the information of N grids after gridizing the map. For the information of the N grids, please refer to the relevant description in the above step 201 .

Wherein, each grid in the N grids has a corresponding identifier, and one grid can be in one-to-one correspondence with one identifier. The identifier of each grid may be assigned to each grid when the access network device divides the grid, or the access network device may assign an identifier to each grid after the grid is divided. Specifically, the identification of each grid may be assigned according to a preset rule. For example, an identifier can be assigned to each grid in the order of grid division, or an identifier can be assigned to each grid randomly, or an identifier can be assigned to each grid according to the order in which each grid is arranged, etc. .

The preset range may be the cell coverage under the access network device, or the sector coverage under the access network device, or the access network device or other network elements according to preset rules based on map planning A predetermined range, for example, the preset range may be a road area on the map.

The N grids may be obtained by dividing the preset range by the access network device according to the preset size. For example, the access network device may divide the road according to the preset length, width or height (altitude), etc., to obtain N grids. The coverage area of each of the N grids may be smaller than a preset area. For example, the coverage of each grid may be smaller than the coverage of one or more cells under the access network device, or the size of the coverage of each grid is smaller than the average coverage of cells under the access network device Wait.

It should be noted that the shape of each grid may be a rectangle, a circle, a polygon, etc., and the shape of each grid may be the same or different, and may be adjusted according to actual application scenarios.

In an example, the preset range is taken as an example of a road in the map for description. As shown in FIG. 7A , the access network device may perform grid processing based on the road information of the map information, and divide the road into multiple grids. The width of the road can be taken as the width of each grid, and the length of each grid can be determined according to the operator's setting. It can be understood that the access network device segments the roads on the map, each segment of the road is a grid, and the length of each segment of the road can be set by the operator. When the width of the grid is the width of the road, the value of this width may be different in different scenarios. For example, the lane width of an urban road is 3.5 meters, a diversion lane at an intersection is 2.3-2.5 meters per lane, a trunk road (including expressways) is 3.75 meters per lane, and the shoulder (emergency stop zone of the expressway) is 1.5-2.5 meters, etc. . Also, there may be scenarios such as elevated roads and tunnels. Therefore, in some specific application scenarios, the coverage information of each grid may also include altitude.

In an example, the above-mentioned preset range is a cell under one or more base stations as an example for description. As shown in Figure 7B. Wherein, a base station is taken as an example, and the base station includes one or more cells, and three cells are used for description here. The base station may divide the coverage of the three cells to obtain multiple grids. A cell may be divided into one or more grids, and the size of the coverage of each grid is not greater than the size of the coverage of the smallest cell under the base station.

In an example, the above-mentioned preset range is a sector under one or more base stations as an example for description. The base station may also divide a sector into one or more grids based on the coverage of the sectors within its coverage. As shown in Figure 7C. Wherein, one base station may include one or more sectors, and three sectors are used for description here. The base station can divide the coverage of the three sectors to obtain multiple grids. Wherein, a sector may be divided into one or more grids, and the size of the coverage of each grid is not greater than the size of the coverage of the smallest sector under the base station.

In a possible implementation manner, when the access network device is one or more base stations, after the access network device divides and obtains the information of N grids, it can associate each grid with one or more base stations one or more of the cells below are matched. Then save the information of the grid to the data of the corresponding cell. For example, the coverage area of cell A includes grid 1, grid 2, and grid 5, and the coverage area of cell B includes grid 3, grid 4, and grid 6. The identifier of 5 is stored in the data of cell A, and the identifiers of grid 3, grid 4 and grid 5 can be stored in the data of cell B, etc. In addition, other network elements, such as an AMF entity, NEF entity, etc., can also match the N grids with the aforementioned one or more cells, and the process is related to the access network device matching the N grids with the aforementioned one or more cells. The manner in which the cells are matched is similar and will not be repeated here.

In another possible specific application scenario, in 3GPP TS 36.331 (5.10.13.2), area division is performed based on a map to obtain one or more zones. Then you can associate PC5 resources with zones, for example, save PC5 resources to the relevant data of the corresponding zone, please refer to the relevant standards for specific steps. In this embodiment of the present application, an access network device, a PCF entity, or a network device may match the grid with the zone, and associate the grid with the zone. Specifically, the information of the zone where each grid is located in the above-mentioned N grids can be saved in the information of each grid, or the information of each grid can be saved to the location where each grid is located The information of the zone is medium.

Wherein, the size of the coverage area of the grid provided by the present application is smaller than the size of the average coverage area of the zone, or the size of the coverage area of the grid provided by the present application is smaller than the size of the minimum coverage area of the zone. It can be understood that the grid obtained based on the map division in the embodiment of the present application may be a subset of the zone. For example, as shown in Figure 8, a zone can be divided into multiple grids. Among them, each grid has a corresponding PC5 resource. Moreover, each zone has a corresponding zone identification number (identification, ID). The ID of each grid can be associated with a zone ID. For example, the ID of each raster can contain the zone ID of the corresponding zone. When the coverage of the zone needs to be adjusted subsequently, the coverage of the zone can be adjusted with the grid as the granularity. As shown in FIG. 9 , with respect to FIG. 8 , one or more grids in FIG. 9 can be divided from zone A into zone B. When adjusting the coverage of a zone, it is only necessary to adjust the identification of the grid in the zone, for example, adding or deleting the identification of the grid corresponding to the zone, etc., without the need to re-adjust the longitude and latitude or Adjust the length, etc. The complexity of adjusting the zone can be reduced.

In a specific implementation manner, after step 601, the above method further includes: the access network device sends the information of the N grids to other network elements, for example, a PCF entity, a data analysis entity, an NWDAF entity or an AF entity etc., without limitation.

Optionally, step 601 may be replaced with step 6011 .

6011. The PCF entity performs map rasterization.

The step of rasterizing the map in the above step 601 may also be performed by the PCF entity. The step of performing map rasterization by the PCF entity is similar to the step of performing map rasterization by the access network device in step 601, and the access network device in step 601 may be replaced by the PCF entity, which will not be repeated.

In a specific implementation manner, after step 6011, the above method further includes: the PCF entity sends the information of the N grids to other network elements, for example, access network equipment, NWDAF entity, data analysis entity or AF entities, etc., without limitation.

Optionally, step 601 may be replaced with step 6011 .

6012. The AF entity performs map rasterization.

The step of rasterizing the map in the above step 601 can also be performed by the AF entity. The step of performing map rasterization by the AF entity is similar to the step of performing map rasterization by the access network device in step 601, and the access network device in step 601 may be replaced by the AF entity, which will not be repeated.

In a specific implementation manner, after step 6012, the above method further includes: the AF entity sends the information of the N grids to other network elements, for example, access network equipment, NWDAF entity, data analysis entity or PCF entities, etc., without limitation.

602. The UE reports the first SL network information to the access network device.

For the first SL network information, reference may be made to the relevant description in the foregoing step 202 .

The UE may report the first SL network information to the access network device through radio resource control (radio resource control, RRC) signaling.

There are various ways for the UE to report the first SL network information, as described below.

Manner 1: The UE may periodically report the first SL network information to the access network device.

The period for reporting the first SL network information may be written into the configuration information delivered to the UE by the PCF entity, and the UE reads the reporting period from the configuration information, and then reports the first SL network information according to the reporting period. Or, in the signaling sent by the access network device to the UE, it carries an indication instructing the UE to periodically report the first SL network information to the access network device, and the reporting period. Report the first SL network information to the access network device automatically.

For example, when the UE initiates a V2X service request to the access network device or the PCF entity, or when the UE periodically performs configuration update or registration update, etc., the PCF entity can deliver configuration information to the UE through the AMF entity. The configuration information can carry the period for the UE to report the first SL network information.

For another example, when the access network device sends radio resource control (radio resource control, RRC) signaling to the UE, the RRC signaling carries an instruction instructing the UE to periodically report the first SL network information to the access network device, and reporting cycle.

Therefore, in this method, the UE can periodically report the first SL network information, for example, the UE reports the first SL network information to the access network device f1 times every minute, so that the access network device can periodically obtain the first SL network information. SL network information. Furthermore, the access network device may also periodically send the second SL network information to the network device, and periodically receive the network resource analysis result from the network device, so that the access network device periodically scans the grid coverage area. The adjustment or allocation of the network resources of the UE. Further, the UE can use the adjusted or allocated network resources to perform SL communication, thereby improving the efficiency of the UE performing the SL communication and reducing the time delay of the UE performing the SL communication.

Manner 2: The UE reports the first SL network information according to the trigger condition.

Wherein, the access network device carries information that triggers the trigger condition for the UE to report the first SL network information to the access network device in the signaling sent to the UE.

The triggering condition may include: CBR is lower than a preset threshold, or the current channel quality cannot meet the current communication requirements, for example, the delay of the UE performing the SL communication is higher than the first threshold, or the loss of the UE performing the SL communication The packet rate is higher than the second threshold, etc., which cannot meet the needs of V2X services.

Specifically, the access network device may carry the trigger condition information in the RRC signaling sent to the UE.

Therefore, in this manner, when the UE determines that the CBR is lower than the preset threshold, or when the UE monitors that the current channel quality cannot meet the current communication requirements, it can report the first SL network information to the access network device, so that the access network can The network access device can obtain the change of the communication quality when the UE performs the SL communication in time.

Manner 3: When the access network device needs to acquire the first SL network information, it directly delivers to the UE reporting indication information that instructs the UE to report the first SL network information.

Further, after receiving the reporting indication information from the access network device, the UE may report the first SL network information to the access network device.

Therefore, in the third mode, the access network device can notify the UE to report the first SL network information according to the requirements, which can reduce the amount of data sent by the UE and reduce the signaling overhead of the UE.

In addition, after step 602, the above method further includes: the first SL network information may carry the location information of the UE, and the access network determines that the UE is in the first grid according to the location information. For example, the first SL network information carries the longitude and latitude of the location of the UE, and the access network device may, according to the longitude and latitude of the location of the UE, and the longitude and latitude coordinates of each grid, or the first SL network The information carries the longitude and latitude of the location of the UE and is converted into plane coordinates, and is compared with the plane coordinates converted from the longitude and latitude of each grid above to determine that the UE is in the first grid, and the first grid is included in the grid. The above N grids.

603. The access network device performs data preprocessing.

Wherein, step 603 in this embodiment of the present application is an optional step.

After receiving the first SL network information sent by the UE, the access network device may preprocess the first SL network information to obtain the second SL network information.

The specific steps of the preprocessing and the second SL network information may refer to the relevant description in the foregoing step 203 .

In an example, if there are two UEs reporting the first SL network information of the SL communication to the access network device in the first frequency band, the first grid, and the first time period, the access network device may report the first SL network information of the SL communication to the two UEs. The first frequency band, the first grid, and the first SL network information reported in the first time period are preprocessed, for example, the data included in the first SL network information is processed by weighting, averaging, etc., so as to obtain the preprocessed SL network information . Therefore, in this embodiment of the present application, the data redundancy of the first SL network information can be reduced by preprocessing the first SL network information by the access network device, and the efficiency of data analysis by the network device can be improved.

In an example, if there are multiple UEs reporting their currently used or monitored CBRs in the same grid, the access network device performs weighted average or other quantization operations on the CBRs reported by multiple UEs to obtain each grid A CBR corresponding to the grid, thereby reducing the redundancy of the CBR of the same grid.

In a possible implementation manner, if there are multiple sets of first SL network information, each set of first SL network information in the multiple sets of first SL network information may carry different information of the corresponding UE, for example, Information about the location of each UE, information about the V2X service performed by each UE, etc., for different information in each set of first SL network information, the information may be directly included in the second SL network information without preprocessing That's it.

In an optional implementation manner, the access network device periodically preprocesses the first SL network information, and the period of preprocessing the first SL network information is generally smaller than that in the foregoing step 602 when the UE reports the first SL The cycle of network information. For example, the access network device may perform f2 preprocessing on the first SL network information every minute, where f2 is smaller than f1 in the foregoing step 602 .

In another implementation manner, when the data analysis entity is deployed independently of the access network device, step 603 may also be performed by the data analysis entity. After the access network device receives the first SL network information, the first SL The network information is sent to the data analysis entity. The process of preprocessing the first SL network information by the data analysis entity is similar to the step of preprocessing the first SL network information by the access network device, and details are not repeated here.

604. The access network device sends the identifier of the first grid and the second SL network information to the network device.

Wherein, step 604 in this embodiment of the present application is similar to step 203 above, and details are not repeated here.

In addition, when the data analysis entity performs step 603, the data analysis entity may also send the identifier of the first grid and the second SL network information to the NWDAF entity.

605. The access network device sends an SL network performance prediction request to the network device.

Wherein, the SL network performance prediction request sent by the access network device to the network device, that is, the first request described in the foregoing step 203, refer to the relevant description in the foregoing step 203 for details, which will not be repeated here.

In a possible implementation manner, the access network device may send the SL network performance prediction request, the identifier of the first grid, and the second SL network information through the same message.

Specifically, in step 605, it can be understood that, if the access network device needs to predict the SL network performance in some areas, it can compare the second SL network information and the first grid to the area where the SL network performance prediction needs to be performed. The identification of the grid is sent to the network device, so as to request the network device to obtain a network resource analysis result of at least one grid, where the at least one grid may be the first grid or the first grid and grids near the first grid. The network resource analysis result can be used by the access network device to adjust or allocate network resources used by the UE.

In a specific implementation manner, the access network device may periodically send an SL network performance prediction request to the network device, so as to request the network resource analysis result of at least one grid, so as to realize all the UEs in the at least one grid. Real-time regulation of used network resources. For example, the access network device may send the SL network performance prediction request to the network device f3 times per minute, where f3 is less than f2 in the foregoing step 603 . Moreover, when sending the SL network performance prediction request, the access network device carries the second SL network information in the current period, and for the second SL network information, please refer to the relevant description in the foregoing step 203 .

In another specific implementation manner, the access network device may send the SL network performance prediction request to the network device according to the trigger event. The trigger event may include: the UE requests the access network device to allocate network resources, or the value of the CBR reported by the UE is greater than the preset value, or the value of the road information vehicle density reported by the UE is greater than the preset vehicle density value, etc.

Specifically, the access network device can send the SL network performance prediction request, the identifier of the first grid, and the second SL network information through the same message. The second SL network information may be the first SL network information in the foregoing step 602, or may be the SL network information after preprocessing the first SL network information.

Exemplarily, two scenarios of the preprocessed SL network information and the unprocessed first SL network information are exemplarily described.

Scenario 1: The access network device sends the preprocessed SL network information to the network device.

Specifically, when the access network device sends the SL network performance prediction request, the identifier of the first grid, and the processed data of the first SL network information to the network device through the same message, see Table 1 for the specific content of the message.

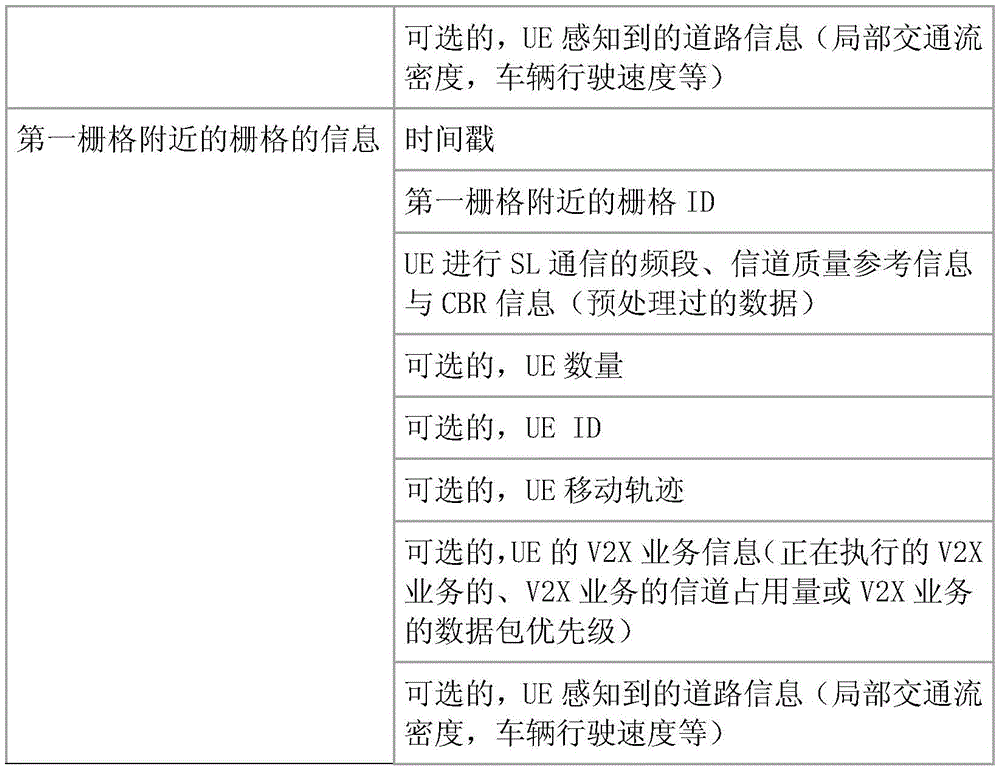

Table 1

Wherein, the content requested by the access network device to the network device, which can be understood as the SL network performance prediction request, may include the coverage of at least one grid (including the grids near the first grid in Table 1) The QoS level supported by the SL communication, or the congestion level of the SL communication under the coverage of at least one grid, etc.

The information of the first grid and the information of the grids near the first grid in Table 1 may include the identifier of the first grid and the information of the second SL network. The grids near the first grid can be understood as grids adjacent to the first grid.

The information of the first grid may include a timestamp, an ID of the first grid, a frequency band in which the UE performs SL communication, channel quality reference information and CBR information (preprocessed data), and the like. Optionally, the information of the first grid further includes the number of UEs under the first grid, the UE IDs of the UEs within the coverage of the first grid, the movement track of the UEs within the coverage of the first grid, the first grid The V2X service information of the UE within the grid coverage (for example, the ongoing V2X service of the UE, the channel occupancy of the V2X service or the priority of the data packet of the V2X service, etc., refer to the relevant description in the above step 202), the UE perceives One or more items of road information (for example, local traffic flow density, vehicle speed, temperature, humidity, visibility, etc., see the relevant description in step 202 above) and other information. Wherein, the frequency band, channel quality reference information and CBR information for the UE to perform SL communication are preprocessed data, and for the preprocessing step, refer to the relevant description in the above step 203 . The information of the grids near the first grid is similar to the information of the first grid, and details are not repeated here.

In the first scenario, the access network device can send the preprocessed SL network information to the network device, which can reduce the redundancy of the sent data and improve the data sending efficiency. In addition, after the network device receives the preprocessed SL network information, the data volume of the preprocessed SL network information is less than that of the unpreprocessed SL network information. The network information obtains the network resource analysis result, which can reduce the workload of the network device and improve the work efficiency of the network device.

Scenario 2: The access network device sends unpreprocessed SL network information to the network device.

When the access network device sends the SL network performance prediction request, the identifier of the first grid and the unpreprocessed first SL network information to the network device through the same message, the specific content of the message may refer to Table 2.

Table 2

Among them, the content included in Table 2 is similar to the content included in Table 1, and the similar content will not be repeated. The difference is that the frequency bands, channel quality reference information, and CBR information for UEs within the coverage area of each grid in the first grid and the grids near the first grid carried in Table 2 for SL communication are unpredicted. processed data.

In the second scenario, if the access network device sends unpreprocessed SL network information to the network device, it may carry a large amount of first SL network information related to the first grid. The network device can more accurately obtain the usage of network resources under each grid based on the unpreprocessed SL network information. In practical applications, when the SL performance prediction request is sent, the more accurate the data carried in the SL network performance message, the more accurate the network resource analysis result obtained subsequently.

It should be noted that step 605 in the embodiment of the present application is an optional step, that is, step 605 may not be performed, or step 605 may be performed, which is not limited.

Optionally, the above step 605 can also be replaced with 6051.

6051. The AF entity sends an SL network performance prediction request to the network device.

The above-mentioned step 605 may also be performed by the AF entity.

The SL network performance prediction request sent by the AF entity to the network device is the second request in the foregoing step 502 . The SL network performance prediction request is used to request the network resource analysis result of at least one grid from the network device.

The AF entity may be unable to obtain the SL network information of the UE under at least one grid. Therefore, the SL network performance prediction request sent by the AF entity to the network device may not carry the second SL network information, and the access network The device sends the second SL network information to the network device.

Specifically, for the manner in which the AF entity sends the SL network performance prediction request to the network device, reference may be made to the manner in which the access network device sends the SL performance prediction request to the network device in the foregoing step 605 .

In a specific implementation manner, if the information of N grids is stored on the AF entity, the SL network performance prediction request sent by the AF entity to the network device may carry the information of at least one grid, for example, the at least one grid. identification, coverage, etc.

In another specific implementation manner, when the information of the N grids is not stored on the AF entity, the SL network performance prediction request sent by the AF entity to the network device may carry the location information corresponding to the network resource analysis result to be obtained. . For example, the SL network performance prediction request may carry: the longitude and latitude of the area for which the prediction is requested, or the information of single or multiple paths of the UE, or the coordinate information of the geometric area of the requested prediction range, etc. The network device may determine at least one grid corresponding to the network resource analysis result requested by the AF entity according to the location information of the UE carried in the SL network performance prediction request. Therefore, even if the AF entity does not include the information of the N grids, the location information of the requested area can be sent to the network device, so as to request the network device to obtain the network resource analysis result.

606. The network device performs data analysis.

Wherein, for step 606 in this embodiment of the present application, reference may be made to the foregoing step 303, and details are not repeated here.

There are various ways to trigger the network device to perform data analysis, as described below.

Manner 1: After step 605 or 6051, the network device may be triggered by the SL network performance prediction request to perform data analysis.

Wherein, in the first manner, the content included in the network resource analysis result may be different according to the content of the request carried in the SL network performance prediction request.

For example, if the SL network performance prediction request is used to request the network device to analyze the congestion situation of the SL communication, the network resource analysis result carries the congestion degree of the SL communication. If the SL network performance prediction request is used to request the network device to analyze the QoS level supported by the SL communication, the network resource analysis result may include the QoS level supported by the SL communication. If the SL network performance prediction request is used to request the network device to analyze some QoS parameter indicators in the SL communication, the network resource analysis result may include an indication of the QoS parameter indicators of the at least one grid that can meet the V2X service requirements, for example, The network resource analysis result may include indicators such as delay or packet loss rate, or the network resource analysis result may directly include an indication of whether the QoS indicator of the V2X service is satisfied, and the like.

In a possible scenario, when the SL network performance prediction request is sent by the AF entity, and the AF entity does not store the information of the above N grids, the SL network performance prediction request carries the information of the location that needs to be requested. , after receiving the SL network performance prediction request, the network device determines at least one grid corresponding to the location information according to the location information carried in the SL network performance prediction request. Then, the network resources of the at least one grid are analyzed to obtain a network resource analysis result.

Method 2: After step 604, data analysis can be performed.

In mode 2, if the access network device periodically sends the identifier of the first grid and the second SL network information related to the first grid to the network device, correspondingly, the network device may also periodically The identifier of the first grid and the second SL network information related to the first grid are used to analyze the network resources of the at least one grid to obtain the analysis result of the network resources of the at least one grid. The period for the network device to analyze the network resources of the at least one grid may be adjusted according to the period for the access network device to send the identifier of the first grid and the second SL network information related to the first grid.

In an example, the access network device may periodically send the SL network performance prediction request and the second SL network information within a preset time period to the network device. For example, the access network device may send the second SL network information within 5 minutes to the network device. So that the network device can obtain the network resource analysis result of the at least one grid based on the SL network performance prediction request and the second SL network information within the preset time period. The network resource analysis result may include information on the communication quality of the SL communication within the coverage area of the at least one grid in the future preset time period. Specifically, the network device may use the second SL network information collected in a preset time period as an input according to a preset algorithm, for example, a Kalman filter algorithm, a neural network algorithm, etc., and output the network resource analysis of the at least one grid As a result, the network resource analysis result may include information on the communication quality of the SL communication within the coverage area of the at least one grid in the future preset time period. The preset time period may be determined by the network device according to the prediction algorithm, or may be directly determined by the access network device.

Therefore, the access network device can send the SL network performance prediction request and the second SL network information within the preset time period to the network device, and request the network resource analysis result of the at least one grid, so that the access network device can obtain the result based on the prediction The network resource analysis result of the at least one grid in the future preset time period is adjusted, and the network resource of the UE is adjusted. It can be understood that the analysis or prediction of the communication quality of the SL communication can be realized based on the granularity of the grid through the Kalman filter algorithm or the neural network algorithm, etc., and then the communication quality of the SL communication can be analyzed or predicted accurately based on the results. Adjust the network resources of the UE to avoid channel congestion when the UE performs SL communication.

607. The network device sends the network resource analysis result to the PCF entity.

Wherein, after obtaining the network resource analysis result of the at least one grid, the network device may send the network resource analysis result of the at least one grid to the PCF entity.

Specifically, if the network device periodically analyzes the network resources of at least one grid, the network device may periodically send the network resource analysis result to the PCF entity.

It should be noted that step 607 in this embodiment of the present application is an optional step, that is, the network device may not send the network resource analysis result of at least one grid to the PCF entity.

608. The network device sends the network resource analysis result to the AF entity.

Wherein, after obtaining the network resource analysis result of the at least one grid, the network device may send the network resource analysis result of the at least one grid to the AF entity.

Specifically, there are many ways to trigger the network device to send the network resource analysis result to the AF entity, as described below.

Manner 1: The network device periodically sends the network resource analysis result to the AF entity. For example, if the network device periodically analyzes the network resources of at least one grid, the network device may periodically send the network resource analysis result to the AF entity.

Manner 2: The network device receives the SL network performance prediction request from the AF entity, and sends the network resource analysis result to the AF entity.

More specifically, the network device may forward the network resource analysis result to the AF entity through the NEF entity.

609. The network device sends the network resource analysis result to the access network device.

Wherein, after obtaining the network resource analysis result of the at least one grid, the network device may send the network resource analysis result of the at least one grid to the access network device.

Specifically, there are various manners for triggering the network device to send the network resource analysis result to the access network device, as described below.

Manner 1: The network device periodically sends the network resource analysis result to the access network device. For example, if the network device periodically analyzes the network resources of at least one grid, the network device periodically sends the network resource analysis result to the access network device.

Manner 2: The access network device sends an SL network performance prediction request to the network device, and the network device sends the network resource analysis result to the access network device.

610. The access network device sends the information of the network resource to the UE.

The information of the network resources is information of network resources available to the UE, or information of network resources allocated by the access network device to the UE. When the information of the network resource is the information of the network resource available to the UE, the information of the network resource may be sent to the UE by the access network device through the SL radio bearer configuration. When the network resource information is information of network resources allocated by the access network device to the UE, the access network device may directly send the network resource information to the UE.

Wherein, after the access network device receives the network resource analysis result of at least one grid from the network device, when the network resource analysis result satisfies the first preset condition, the access network device covers the at least one grid to the coverage area. The UE within the SL radio bearer configuration is sent; or, when the network resource analysis result satisfies the first preset condition, the access network device allocates network resources to the UE within the coverage of the at least one grid according to the network resource analysis result, and send the information of the allocated network resources to the UE.

For step 610, reference may be made to the relevant description of the above-mentioned step 203, and the step 610 will be described in more detail below with some specific scenarios.

For example, the network resource analysis result carries the QoS level supported by the SL communication in at least one grid range. Correspondingly, the first preset condition is that the QoS level carried in the network resource analysis result is lower than the preset QoS level. Therefore, when the network resource analysis result satisfies the first preset condition, the UE under the at least one grid needs to adjust the network resources used for the SL communication. The access network device may deliver the SL radio bearer to the UE under the at least one grid, and the SL radio bearer may include information about the network resources available to the UE, so that the UE can select the available network resources according to the SL radio bearer for SL. communication.

Wherein, the access network device may send the SL radio bearer configuration to the UE through RRC signaling or a system information block (system information block, SIB) message.

Generally, the access network device may send the SL radio bearer configuration to the UE within the coverage of the at least one grid, and notify the UE of the available PC5 resources. Specifically, the access network device may configure corresponding PC5 resources for the UE according to the PC5 authorization information or QoS parameters included in the communication parameters of the V2X service of each UE. For example, the higher the QoS level of the UE, the more PC5 resources are allocated to the UE; or, the more PC5 resources the UE is authorized to use, the more available PC5 resources are allocated to the UE.

For another example, if the network resource analysis result carries a value representing the degree of congestion in at least one grid, the first preset condition may be that the value indicating the degree of congestion in at least one grid exceeds a preset value. Then when the value exceeds the preset value, the access network device determines that the network resource analysis result satisfies the first preset condition, which can be understood as the congestion degree of the SL communication in at least one grid is relatively high, and the at least one grid needs to be congested. Adjust the network resources used by UEs within the grid coverage when performing V2X communication services. The access network device may allocate network resources for SL communication to the UE according to the network resource result, and deliver the information of the network resources allocated to the UE for SL communication to the UE. Further, the UE can update the network resource configuration according to the information of the network resources allocated by the access network device to the UE for SL communication, and use the network resources allocated by the access network device to the UE for SL communication to perform SL communication.

In an example, the frequency band for direct communication that the UE can use when performing the V2X service is the 5905-5925 MHz frequency band, which can also be understood as the working frequency band for the direct communication of the Internet of Vehicles in LTE-V2X applications. When the density of vehicle nodes on the road is too large, the channel congestion is easy to occur in the pass-through working frequency band of 20MHz bandwidth. When the access network device determines that the network resource analysis result satisfies the first preset condition, it may be understood that the communication quality of the current SL communication is poor, or a situation of channel congestion occurs. The access network device can send the SL radio bearer configuration to the UE to notify the UE of available PC5 resources, so that the UE can select PC5 resources for communication, or the access network device can allocate PC5 resources to the UE according to the network resource analysis result. Therefore, in this example, the UE can perform SL communication through the available PC5 resources or allocated PC5 resources, so as to improve the communication efficiency of the UE in the SL communication, and avoid channel congestion when the UE performs the SL communication.

Usually, the SL radio bearer configuration can also be understood as a pre-configured SL radio bearer, that is, the access network device predicts the possible poor communication quality or channel congestion of the SL communication according to the network resource analysis result obtained by the network device analysis. Therefore, through the pre-configured SL radio bearer, situations such as poor communication quality or channel congestion when the UE performs SL communication are avoided.

611. The PCF entity sends the communication parameters of the V2X service to the UE.

For step 611 in this embodiment of the present application, reference may be made to related descriptions after step 402 above, and details are not repeated here.

Wherein, when the network resource analysis result of at least one grid satisfies the second preset condition, the communication quality of the network resources in the at least one grid is poor, and there may be situations such as high delay and low transmission efficiency. Therefore, when the network resource analysis result satisfies the second preset condition, the PCF entity may send the communication parameters of the V2X service to one or more UEs within the coverage of the at least one grid according to the network resource analysis result, so as to realize the Adjustment of communication parameters of the V2X service of one or more UEs within the coverage of at least one grid.

For example, if the communication quality of the SL communication in at least one grid is poor and the QoS level supported by the SL communication is lowered, the PCF entity can reduce the V2X of the UE within the at least one grid by delivering the communication parameters of the V2X service The QoS level of the service is adapted to the change of the communication quality of the SL communication and avoids the channel congestion of the SL communication. Alternatively, the PCF entity adjusts the frequency band used by the UE to perform the V2X service by delivering the communication parameters of the V2X service to the UE, thereby avoiding the UE to communicate in the frequency band with poor channel quality, improving the communication quality of the SL communication performed by the UE, and reducing the communication quality of the UE. time delay.

For another example, if the communication quality of the channel in at least one grid is good and the QoS level supported by the SL communication is improved, the PCF entity can also correspondingly improve the QoS of the UEs within the range of the at least one grid by delivering the communication parameters of the V2X service. The QoS level of the V2X service is adapted to the communication quality of the SL communication and improves the communication quality of the UE in the SL communication. Alternatively, the PCF entity adjusts the frequency band used by the UE for the V2X service by delivering the communication parameters of the V2X service to the UE, so that the UE can communicate in the frequency band with better channel quality, and the communication quality of the SL communication by the UE can also be improved. The delay for the UE to perform SL communication.

612. The AF entity sends the QoS parameters of the V2X service to the UE.

For step 612 in this embodiment of the present application, reference may be made to the relevant description in the foregoing step 502, and details are not repeated here.

The V2X service referred to in this step is the service provided by the AF entity for the UE. For example, vehicles share sensor information services, vehicles periodically broadcast their own position, speed and other status information services, vehicles forward information services of other vehicles or roadside equipment, and so on.

Specifically, for the network resource analysis result, reference may be made to the relevant description of the foregoing step 203 .

Wherein, when the network resource analysis result satisfies the third preset condition, it can be understood that the communication quality of the network resources in the at least one grid is poor, and there may be situations such as high transmission delay and low transmission efficiency. Therefore, when the network resource analysis result satisfies the third preset condition, the AF entity may send the QoS parameter of the V2X service to one or more UEs within the coverage of the at least one grid according to the network resource analysis result, and the QoS parameter may be Used to adjust the QoS parameters of the UE's V2X service.

Therefore, the AF entity can adjust the QoS parameters of the UE's V2X service based on the grid granularity through the network resource analysis result based on the grid granularity, so as to more accurately adjust the QoS parameters of the UE's V2X service.

For example, if the communication quality of the SL communication in at least one grid is poor and the QoS level supported by the SL communication is lowered, the AF entity may deliver the QoS parameters of the V2X service to the UEs within the range of the at least one grid, reducing the at least one QoS parameter of the V2X service. The QoS level of the UE's V2X service within the grid range. Thus, the situation of channel congestion of SL communication is avoided.

For another example, if the communication quality of the channel in at least one grid is better, the QoS level supported by the SL communication is improved. Then, the AF entity can deliver the QoS parameters of the V2X service to the UEs within the at least one grid range, and improve the QoS level of the V2X services of the UEs within the at least one grid range. Therefore, the communication quality of the SL communication performed by the UE is improved, and the communication delay of the UE is reduced.

In an example, after the AF entity receives the network resource analysis result of at least one grid from the network device, if the network resource analysis result satisfies the third preset condition, it can be understood that the network resource is within the coverage of the at least one grid. The communication quality of the PC5 resource may be poor, or the channel may be congested. Therefore, the AF entity may send the QoS parameters of the V2X service to the UE that performs the V2X service within the coverage of the at least one grid. This enables the UE to configure the QoS parameters of the V2X service executed by the UE according to the QoS parameters of the V2X service. Therefore, the AF entity can adjust the QoS parameters of the UE's V2X service to make the QoS parameters of the UE's V2X service more suitable for the communication quality of the SL communication, improve the communication efficiency of the UE's SL communication, and reduce the communication delay of the UE.

In a specific scenario, in the above step 611, the QoS parameters included in the communication parameters of the V2X service sent by the PCF entity to the UE may be sent by one or more AF entities to the PCF entity, and then sent by the PCF entity to the UE. UE. Specifically, the AF entity may be an entity corresponding to the V2X service. The communication parameters of the V2X service sent by the PCF entity to the UE may include communication parameters of one or more V2X services of the UE, and the communication parameters of the one or more V2X services may include QoS parameters of the one or more V2X services. The QoS parameters of the one or more V2X services may be sent by the AF entity corresponding to the one or more V2X services to the PCF entity through the NEF entity, and then sent by the PCF entity to the UE.

Therefore, in the embodiment of the present application, one of the access network device, the PCF entity or the AF entity performs map rasterization, and notifies other network elements of the information of the N grids obtained by the rasterization. The UE within the coverage of the first grid may report the first SL network information to the access network device, and the access network device may send the identifier of the first grid and the second SL network information related to the first grid to the network device . The network device can obtain the network resource analysis result of at least one grid based on the information of the N grids, the identifier of the first grid and the second SL network information. and send the network resource analysis result to the access network device, the PCF entity and/or the AF entity, so that the access network device, the PCF entity and/or the AF entity can analyze the network resources of the UE, the communication parameters of the V2X service or the V2X entity The QoS parameters of the service and the like are adjusted to avoid the situation that the UE within the coverage of the at least one grid has poor communication quality or cannot communicate due to channel congestion of the SL communication.

The specific flow of the data processing method provided by the present application is described in detail above, and some specific application scenarios of the data processing method provided by the present application are described below.

Scenario 1: Map rasterization is performed by access network equipment.

Please refer to FIG. 10 , another schematic flowchart of the data processing method provided by the present application, which is specifically described as follows.

1001. The access network device performs map rasterization.

Wherein, in the embodiment of the present application, the access network device performs map rasterization to obtain information of N grids. For the information of the N grids, please refer to the relevant description in the above step 201 .

For example, after obtaining the map information, the access network device divides the road in the map into N segments based on the map information, that is, N grids are obtained. The length of each grid is the length of the N segments, and the width of each grid is the width of the road, or the width of each grid is greater than the width of the road.

When the access network device is a base station, there may be multiple base stations. Each base station can perform grid division on the roads within its coverage area, and by performing grid division on multiple base stations, information of N grids can be obtained. In addition, when the base station divides the grid, the size of the coverage of each grid may be smaller than the size of the coverage of the smallest cell under the base station, so that the granularity of the divided grid is smaller than that of the cell. Alternatively, when the base station divides the grid, the size of the coverage of each grid may be smaller than the size of the coverage of the smallest sector under the base station, so that the granularity of the divided grid is smaller than that of the sector.

Specifically, the shape of each grid may be a circle, an ellipse, a square, or other polygons, etc., and the shape of each grid may be different. Therefore, the coverage information of each raster may also contain different content. For example, if the shape of the grid is circular, the coverage information of the grid may include the longitude, latitude, and radius of the center of the circle, and indication data indicating that the grid is circular in shape. If the shape of the grid is a polygon, the coverage information of the grid may include the longitude and latitude of the location of each vertex, or further include indication data indicating that the shape of the grid is a polygon, and the like.

For the specific steps of performing map rasterization by the access network device, reference may be made to the foregoing step 601, which will not be repeated here.

1002. The access network device sends the information of the N grids to the NWDAF entity.

The access network device may send the information of the N grids to the NWDAF entity after rasterizing the map to obtain the information of the N grids.

1003. The access network device sends the information of the N grids to the PCF entity.

The access network device may send the information of the N grids to the PCF entity after rasterizing the map to obtain the information of the N grids.

1004. The UE reports the first SL network information to the access network device.

1005. The access network device performs data preprocessing.

Wherein, for steps 1004-1005 in this embodiment of the present application, reference may be made to the above-mentioned steps 602-603, and details are not repeated here.

1006. The access network device sends the second SL network information to the NWDAF entity.

1007. The access network device sends an SL network performance prediction request to the NWDAF entity.

Wherein, the network device in the above steps 604-605 may be an NWDAF entity. For steps 1006-1007 in this embodiment of the present application, reference may be made to the above steps 604-605, and the network device in steps 604-605 can be replaced by an NWDAF entity. The details are not repeated here.

1008. The NWDAF entity conducts data analysis.

Among them, in the embodiment of the present application, the NWDAF entity performs data analysis. For the specific data analysis process, reference may be made to the foregoing step 606, which will not be repeated here.

1009. The NWDAF entity sends the network resource analysis result to the access network device.

Wherein, for step 1009 in this embodiment of the present application, reference may be made to the foregoing step 609, and details are not repeated here.

For example, after the NWDAF entity performs data analysis and obtains the network resource analysis result of at least one grid, the network resource analysis result is sent to the access network device. The network resource analysis result can be understood as, in a certain period of time thereafter, the QoS level, congestion level, or QoS KPI situation supported by the SL communication within the coverage of the at least one grid.

1010. The NWDAF entity sends the network resource analysis result to the PCF entity.

Specifically, for step 1010 in this embodiment of the present application, reference may be made to the foregoing step 607, and details are not repeated here.

1011. The access network device sends the information of the network resource to the UE.

For step 1011 in this embodiment of the present application, reference may be made to the foregoing step 610, and details are not repeated here.

Wherein, after the access network device receives the network resource analysis result from the NWDAF entity, if the network resource analysis result satisfies the first preset condition. It can be understood that in a certain period of time thereafter, the communication quality of the SL communication within the coverage area of the at least one grid is poor, for example, the QoS level supported by the SL communication is reduced or the channel congestion degree is high. The access network device may adjust or allocate PC5 resources for UEs within the coverage of the at least one grid, or for UEs that are about to enter the coverage of the at least one grid, so that the UEs can use available PC5 resources for communication. The communication efficiency of the UE in the at least one grid can be improved, and the channel congestion degree of the SL communication in the coverage area of the at least one grid can be reduced.

Generally, for some UEs with high priority, high importance of service data or large amount of transmitted data, the access network equipment can configure more PC5 resources, so that the communication transmission of such UEs can be guaranteed and the communication transmission can be improved. reliability.

1012. The PCF entity delivers the control policy and the communication parameters of the V2X service to the UE.

For step 1012 in this embodiment of the present application, reference may be made to the foregoing step 611, and details are not repeated here.

It can be understood that the PCF entity determines, according to the network resource analysis result, that in a certain period of time thereafter, the communication quality of the SL communication within the coverage of the at least one grid changes greatly, for example, the QoS level supported by the SL communication is reduced, and the channel is congested. high degree. Therefore, the PCF entity can also deliver the control policy and the communication parameters of the V2X service to the UEs within the coverage of at least one grid. The control strategy can be used to notify the UE in which time period or frequency band or the PC5 interface or Uu interface used for data transmission of the V2X service. Therefore, the UEs within the coverage of the at least one grid use the same interface to communicate in the same time period or the same frequency band, so as to reduce the channel congestion degree of the SL communication covered by the at least one grid.

Generally, when the QoS level supported by the SL communication is low, the PCF entity can reduce the QoS level of the V2X service of the UE within the coverage of the at least one grid by delivering the communication parameters of the V2X service to the UE, or reduce some transmissions. The QoS level of the V2X service for UEs with lower data importance. When the QoS level supported by the SL communication is higher, the PCF entity may also improve the QoS level of the V2X service of the UE within the coverage of the at least one grid by delivering the communication parameters of the V2X service to the UE.

Specifically, the PCF entity can deliver the control policy and the communication parameters of the V2X service to the UE within the coverage of the at least one grid through a downlink non-access stratum (Non-access stratum, NAS) message via the AMF entity , or a UE that is about to enter the coverage area of the at least one grid.

In addition, if the access network device does not send the information of the N grids to the PCF entity after rasterizing the map, the NWDAF entity may carry the at least one grid network resource analysis result when sending the network resource analysis result of the at least one grid to the PCF entity. Information of one grid, for example, identification coverage information of the at least one grid, and the like. In addition, the NWDAF entity may also send the information of the N grids to the PCF entity; or, after receiving the network resource analysis result of at least one grid, the PCF entity requests the access network device for the information of the N grids, etc. .

In the embodiment of the present application, the access network device may perform map rasterization and notify other network elements. In addition, the access network device also sends the second SL network information and the SL network performance prediction request to the NWDAF entity, so that the NWDAF entity can obtain the network resource analysis of at least one grid based on the information of the N grids and the second SL network information result. Sending the network resource analysis result to the access network device and the PCF entity, so that the access network device and the PCF entity can adjust the network resources of the UE, the communication parameters of the V2X service, etc. based on the network resource analysis result of grid granularity, The UEs within the coverage area of the at least one grid are prevented from experiencing poor communication quality of the SL communication, channel congestion of the SL communication, and the like.

Scenario 2. Map rasterization by PCF entity.

Please refer to FIG. 11 , another schematic flowchart of the data processing method provided by the present application, which is specifically described as follows.

1101. The PCF entity performs map rasterization.

In the embodiment of the present application, the map is rasterized by the PCF entity to obtain information of N grids.

Specifically, step 1101 in this embodiment of the present application is similar to step 6011 above, and details are not described herein again.

1102. The PCF entity sends the information of the N grids to the access network device.

After the PCF entity performs map rasterization and obtains the information of the N grids, it sends the information of the N grids to the access network device, so that the access network device can obtain the information of the N grids.

1103. The PCF entity sends the information of the N grids to the NWDAF entity.

After the PCF entity performs map rasterization and obtains the information of the N grids, it sends the information of the N grids to the NWDAF entity, so that the NWDAF entity can obtain the information of the N grids.

For the information of the N grids in the above steps 1102-1103, reference may be made to the above step 601, and details are not repeated here.

1104. The UE reports the first SL network information to the access network device.

1105. The access network device performs data preprocessing.

1106. The access network device sends the second SL network information to the NWDAF entity.

1107. The access network device sends an SL network performance prediction request to the NWDAF entity.

1108. The NWDAF entity performs data analysis.

1109. The NWDAF entity sends the network resource analysis result to the access network device.

1110. The NWDAF entity sends the network resource analysis result to the PCF entity.

1111. The access network device sends the information of the network resource to the UE.

1112. The PCF entity delivers the control policy and the communication parameters of the V2X service to the UE.

Steps 1104 to 1112 in this embodiment of the present application are similar to the foregoing steps 1004 to 1012, and details are not described herein again.

In addition, in the embodiment of the present application, the NWDAF entity may also send the network resource analysis result to the AF entity. For details, please refer to the above steps 608 and 612.

In the embodiment of the present application, the PCF entity may perform map rasterization and notify other network elements. The access network device sends the second SL network information and the SL network performance prediction request to the NWDAF entity, so that the NWDAF entity can obtain the network resource analysis result of at least one grid based on the information of the N grids and the second SL network information. The network resource analysis result is sent to the access network device and the PCF entity, so that the access network device and the PCF entity can analyze the network resources of the UE, the communication parameters of the V2X service or the communication parameters of the V2X service based on the network resource analysis result of the grid granularity. QoS parameters, etc. are adjusted to avoid the occurrence of poor communication quality of SL communication, channel congestion of SL communication, etc., for UEs within the coverage of the at least one grid.

Scenario 3. Map rasterization by AF entity.

Please refer to FIG. 12 , another schematic flowchart of the data processing method provided by the present application, which is specifically described as follows.

1201. The AF entity performs map rasterization.

Specifically, step 1201 in this embodiment of the present application is similar to step 6011 above, and details are not described herein again.

1202. The AF entity sends the information of the N grids to the PCF entity.

The AF entity performs map rasterization, and after obtaining the information of the N grids, sends the information of the N grids to the PCF entity, so that the PCF entity can obtain the information of the N grids.

1203. The AF entity sends the information of the N grids to the NWDAF entity.

The AF entity performs map rasterization, and after obtaining the information of the N grids, sends the information of the N grids to the NWDAF entity, so that the NWDAF entity can obtain the information of the N grids.

1204. The AF entity sends the information of the N grids to the access network device.

The AF entity performs map rasterization, and after obtaining the information of the N grids, sends the information of the N grids to the access network device, so that the access network device can obtain the information of the N grids.

It should be noted that, in the embodiment of the present application, the AF entity may not send the information of the N grids to the PCF entity or the access network device, that is, steps 1202 and 1204 are optional steps.

1205. The UE reports the first SL network information to the access network device.

1206. The access network device performs data preprocessing.

1207. The access network device sends the second SL network information to the NWDAF entity.

Steps 1205-1007 in this embodiment of the present application are similar to the above-mentioned steps 1004-1006, and are not repeated here.

1208. The AF entity sends an SL network performance prediction request to the NWDAF entity.

The SL network performance prediction request sent by the AF entity to the NWDAF entity may be understood as the second request described in the above step 203 . The SL network performance prediction request is used to request to obtain the network resource analysis result of at least one grid from the network device.

Specifically, after the AF entity performs map rasterization, the information of N grids can be obtained. Therefore, the AF can carry the requested information of at least one grid in the SL network performance prediction request, for example, the at least one grid cell identification, coverage information, etc.

1209. The NWDAF entity conducts data analysis.

The specific process of the data analysis performed by the NWDAF entity may refer to the above 606, which will not be repeated here.

In another specific implementation manner, after the NWDAF entity receives the SL network performance prediction request from the AF, because the SL network performance prediction request does not carry the second SL network information, the NWDAF entity also sends a message to the access network device. Indication data, instructing the access network device to send the second SL network information to the NWDAF entity. This enables the NWDAF entity to acquire the second SL network information, and subsequently perform data analysis based on the second SL network information.

In another specific implementation manner, if the AF entity does not send the information of the N grids to the access network device, the NWDAF entity may send indication data to the access network device, and the indication data carries the N grids grid information, so that the access network device can obtain the grid division result, associate the second SL network information with the first grid in the N grids, and associate the second SL network information with the first grid The identification of the grid is sent to the NWDAF entity.

More specifically, the indication data sent by the NWDAF entity to the access network device may include: the NWDAF entity requests the information of at least one grid for prediction in the SL network performance prediction request from the AF entity, or the location information of the area for which prediction is requested. , which is sent to the AMF entity by indicating data. The AMF entity searches the information or location information of the at least one grid, the corresponding access network device, and then sends the indication data to the access network device. This enables the access network device to report the second SL network information related to the first grid in the at least one grid according to the indication data. The at least one grid may include a first grid, or a first grid and a grid adjacent to the first grid.

It should be noted that this application does not limit the execution order of step 1208 and step 1207. Step 1207 may be executed first, or step 1208 may be executed first, which may be adjusted according to actual application scenarios.

1210. The NWDAF entity sends the network resource analysis result to the access network device.

1211. The NWDAF entity sends the network resource analysis result to the PCF entity.

1212. The access network device sends the information of the network resource to the UE.

1213. The PCF entity delivers the control policy and the communication parameters of the V2X service to the UE.

1214. The AF entity sends the QoS parameters of the V2X service to the UE.

Steps 1210-1214 in this embodiment of the present application are similar to the above-mentioned steps 606-612, and are not repeated here.

In the embodiment of the present application, the AF entity performs map rasterization, and sends the grid division result to other network elements, such as access network equipment, PCF entity, NWDAF entity, and the like. In addition, the AF entity also sends a SL network performance prediction request to the NWDAF entity, and the NWDAF entity can obtain the network resource analysis result of at least one grid based on the information of the N grids and the second SL network information. The network resource analysis result is sent to the access network device and the PCF entity, so that the access network device and the PCF entity can analyze the network resources of the UE, the communication parameters of the V2X service, or the communication parameters of the V2X service based on the network resource analysis result of the grid granularity. QoS parameters, etc. are adjusted to avoid the occurrence of poor communication quality of SL communication, channel congestion of SL communication, etc., for UEs within the coverage of the at least one grid.

Scenario 4. Map rasterization by data analysis entity.

Please refer to FIG. 13 , another schematic flowchart of the data processing method provided by the present application, which is specifically described as follows.

1301. The data analysis entity performs map rasterization.

Wherein, in the embodiment of the present application, the data analysis entity is independently deployed with respect to the access network equipment, and the data analysis entity performs map rasterization to obtain information of N grids. For the information of the N grids, reference may be made to the relevant description in the foregoing step 201, and details are not repeated here.

Specifically, step 1301 in the embodiment of the present application is similar to the step of performing map rasterization by the access network device in the foregoing step 601, and details are not repeated here, and the difference is that the foregoing step 601 is performed by the access network device , step 1301 is performed by the data analysis entity.

1302. The data analysis entity sends the information of the N grids to the PCF entity.

The data analysis entity performs map rasterization, and after obtaining the information of the N grids, sends the information of the N grids to the PCF entity, so that the PCF entity can obtain the information of the N grids.

1303. The data analysis entity sends the information of the N grids to the NWDAF entity.

The data analysis entity performs map rasterization, and after obtaining the information of the N grids, sends the information of the N grids to the NWDAF entity, so that the NWDAF entity can obtain the information of the N grids.

1304. The data analysis entity sends the information of the N grids to the access network device.

The data analysis entity performs map rasterization, and after obtaining the information of the N grids, sends the information of the N grids to the NWDAF, so that the access network device can obtain the information of the N grids.

1305. The UE reports the first SL network information to the access network device.

Wherein, step 1305 in this embodiment of the present application is similar to step 602 above, and details are not repeated here.

1306. The access network device sends the first SL network information to the data analysis entity.

Wherein, after the receiving network device receives the first SL network information reported by the UE, the access network device may forward the first SL network information to the data analysis entity, and the data analysis entity performs subsequent data preprocessing.

1307. The data analysis entity performs data preprocessing.

Specifically, the data preprocessing process performed by the data analysis entity is similar to the data preprocessing process performed by the access network device, and reference may be made to the foregoing step 603 .

1308. The data analysis entity sends the second SL network information to the NWDAF entity.

When the data analysis entity performs data preprocessing to obtain the second SL network information related to the first grid, the data analysis entity may send the identifier of the first grid and the second SL network information to the NWDAF entity. Specifically, for the second SL network information, reference may be made to the relevant description in the foregoing step 203, which will not be repeated here.

1309. The data analysis entity sends an SL network performance prediction request to the NWDAF entity.

Wherein, in the embodiment of the present application, the data analysis entity sends the SL network performance prediction request to the NWDAF entity, and the SL network performance prediction request is similar to the first request described in the above step 203, and details are not repeated here.

The data analysis entity sends the SL network performance prediction request to the NWDAF entity, which is similar to the step in which the access network sends the SL network performance prediction request to the NWDAF entity. Please refer to step 605 above.

In addition, after preprocessing to obtain the second SL network information, the data analysis entity can also send the identifier of the first grid, the second SL network information and the SL network prediction request through the same message, so as to request the NWDAF for at least one grid. Network resource analysis results. The SL network prediction request also carries the information of the at least one grid, for example, the identifier of the at least one grid, coverage information, and the like.

1310. The NWDAF entity performs data analysis.

1311. The NWDAF entity sends the network resource analysis result to the access network device.

1312. The NWDAF entity sends the network resource analysis result to the PCF entity.

1313. The access network device sends the information of the network resource to the UE.

1314. The PCF entity delivers the control policy and the communication parameters of the V2X service to the UE.

Steps 1310-1314 in this embodiment of the present application are similar to the above-mentioned steps 1008-1012, and are not repeated here.

In addition, in the embodiment of the present application, the NWDAF entity may also send the network resource analysis result to the AF entity. For details, please refer to the above steps 608 and 612.

In the embodiments of the present application, the data analysis entity may perform map rasterization and notify other network elements. In addition, data preprocessing can also be performed by the data analysis entity, thereby reducing the workload of the access network equipment. The data analysis entity also sends the second SL network information and the SL network performance prediction request to the NWDAF entity, so that the NWDAF entity can obtain the network resource analysis result of at least one grid based on the information of the N grids and the second SL network information. The network resource analysis result is sent to the access network device and the PCF entity, so that the grid granularity-based network resource analysis result of the access network device and the PCF entity can affect the network resources of the UE, the communication parameters of the V2X service, or the communication parameters of the V2X service. QoS parameters and the like are adjusted to avoid situations such as poor communication quality, channel congestion of SL communication, etc. occurring in the network resources used by the UE within the coverage of the at least one grid.

Scenario 5. Data analysis is performed by a data analysis entity.

Please refer to FIG. 14 , another schematic flowchart of the data processing method provided by the present application, which is specifically described as follows.

1401. Perform map rasterization by one of the access network device, the data analysis entity, the PCF entity, or the AF entity.

Among them, in the embodiment of the present application, one of the access network equipment, the data analysis entity or the PCF entity may perform map rasterization, obtain information of N grids, and send the rasterization result to other network elements .

For example, the access network device may perform map rasterization, and send the information of the N grids to the data analysis entity, the PCF entity or the AF entity. For details, refer to the above steps 1001-1003. The data analysis entity may also perform map rasterization, and send the information of the N grids to the access network device, the PCF entity or the AF entity. For details, refer to the above steps 1301-1304. The map rasterization may also be performed by the PCF entity, and the obtained information of the N grids is sent to the access network device, the data analysis entity or the AF entity. For details, refer to steps 1101-1103. The AF entity may also perform map rasterization, and send the information of the N grids to the access network device, the data analysis entity or the PCF entity. For details, please refer to steps 1201-1204.

1402. The UE reports the first SL network information to the access network device.

1403. The access network device performs data preprocessing.

1404. The access network device sends the second SL network information to the data analysis entity.

For steps 1402-1404 in this embodiment of the present application, reference may be made to the foregoing steps 602-604.

In addition, the steps in this embodiment of the present application may also be replaced with the foregoing steps 1305-1307.

1405. The access network device sends an SL network performance prediction request to the data analysis entity

Wherein, the access network device sends the SL network performance prediction request to the data analysis entity, which is used to request the network resource analysis result of at least one grid from the data analysis entity. Wherein, the SL network performance prediction request may be understood as the first request. The SL network performance prediction request carries information of at least one grid.

Specifically, for step 1405 in this embodiment of the present application, please refer to the foregoing step 605, and details are not repeated here.

1406. The data analysis entity performs data analysis.

Among them, in the embodiments of the present application, data analysis is performed by a data analysis entity.

The steps of data analysis performed by the data analysis entity are similar to the above-mentioned step 606, and are not repeated here.

1407. The data analysis entity sends the network resource analysis result to the access network device.

1408. The data analysis entity sends the network resource analysis result to the PCF entity.

1409. The data analysis entity sends the network resource analysis result to the AF entity.

1410. The access network device sends the information of the network resource to the UE.

1411. The PCF entity delivers the control policy and the communication parameters of the V2X service to the UE.

1412. The AF entity sends the QoS parameters of the V2X service to the UE.

Steps 1210 to 1214 in this embodiment of the present application are similar to the foregoing steps 606 to 612, and the network device in steps 606 to 612 may be replaced with a data analysis entity, which will not be repeated here.

In the embodiment of the present application, the map rasterization is performed by one of the access network device, the data analysis entity, the PCF entity or the AF entity. The access network device also sends a SL network performance prediction request to the data analysis entity, and the data analysis entity may obtain a network resource analysis result of at least one grid based on the information of the N grids and the second SL network information. The network resource analysis result is sent to the access network device and the PCF entity, so that the access network device and the PCF entity can analyze the network resources of the UE, the communication parameters of the V2X service or the communication parameters of the V2X service based on the network resource analysis result of the grid granularity. QoS parameters and the like are adjusted to avoid situations such as poor communication quality and channel congestion of SL communication occurring when the UEs within the coverage of the at least one grid perform SL communication.

The method provided by the present application has been described in detail above, and the following describes a data processing apparatus provided in the embodiment of the present application based on the above method. Referring to FIG. 15 , an embodiment of a data processing apparatus in an embodiment of the present application, the data processing apparatus may be an access network device, or a chip or chip system located on an access network device, and the data processing apparatus may be used to execute For the steps performed by the access network device in the embodiments shown in FIGS. 2-14, reference may be made to the relevant descriptions in the foregoing method embodiments.

The data processing apparatus includes: a transceiver unit 1501 and a processing unit 1502 .

a transceiver unit, configured to acquire information of N grids within a preset range, where N is a positive integer greater than or equal to 1;

a transceiver unit, further configured to receive the first side link SL network information from the user equipment UE;

The access network device sends the identifier of the first grid and the second SL network information related to the first grid to the network device according to the first SL network information, and the UE is in the first grid , the N grids include the first grid.

In a possible implementation manner, the transceiver unit 1501 is specifically used for:

receive information from N grids of Policy and Control Function PCF entities; or,

receive information from N grids of data analysis entities; or,

Information is received from N grids of application function AF entities.

In one possible implementation,

The processing unit 1502 is specifically configured to perform grid division on the preset range to obtain information of N grids within the preset range.

In a possible implementation manner, the transceiver unit 1501 is further configured to:

Send information for N grids to the PCF entity; or,

Send the information of N grids to the network device.

In one possible implementation,

The transceiver unit 1501 is further configured to receive a network resource analysis result from at least one grid in the N grids of the network device;

The transceiver unit 1501 is further configured to send the SL radio bearer configuration to the UE within the coverage of at least one grid when the network resource analysis result satisfies the first preset condition; or,

The processing unit 1502 is further configured to allocate network resources to the UE within the coverage of at least one grid according to the network resource analysis result when the network resource analysis result satisfies the first preset condition.

In one possible implementation,

The transceiver unit 1501 is further configured to send a first request to the network device, where the first request is used for requesting to obtain a network resource analysis result; wherein, the first request carries information of at least one grid.

In a possible implementation manner, the first request further carries the second SL network information.

In a possible implementation manner, the network device is a data analysis entity or a network data analysis function NWDAF entity.

In a possible implementation manner, the information of the N grids includes:

Identification of the N grids and coverage information of the N grids.

In one possible implementation,

The processing unit 1502 is further configured to assign an identifier to each of the N grids.

In a possible implementation manner, the first SL network information includes at least one of the following: UE location information, channel quality information, V2X service information or road information.

In one possible implementation,

The processing unit 1502 is further configured to determine that the UE is in the first grid according to the position of the UE and the information of the N grids.

In a possible implementation manner, the coverage of the first grid is smaller than the coverage of the cell currently accessed by the UE.

Referring to FIG. 16 , another data processing apparatus is provided in the embodiment of the present application. The data processing apparatus may be a network device, or a chip or a chip system located on the network device, and the data processing apparatus may be used to execute FIG. 2- For the steps performed by the network device in the embodiment shown in 14, reference may be made to the relevant descriptions in the foregoing method embodiments.

The data processing apparatus includes: a transceiver unit 1601 and a processing unit 1602;

A transceiver unit 1601, configured to acquire information of N grids within a preset range, where N is a positive integer greater than or equal to 1;

The transceiver unit 1601 is further configured to receive the identifier of the first grid and the second SL network information related to the first grid from the access network device, and the N grids include the first grid;

The processing unit 1602 is configured to obtain a network resource analysis result of at least one grid in the N grids according to the information of the N grids, the second SL network information and the identifier of the first grid, where the at least one grid includes the first grid. a grid.

In a possible implementation manner, the transceiver unit 1601 is specifically used for:

The network device receives information from the N grids of PCF entities; or,

The network device receives information from the N grids of access network devices; or,

The network device receives information from the N grids of the AF entity.

In a possible implementation manner, the transceiver unit 1601 is further configured to:

Send the network resource analysis result to the access network device; or,

send the network resource analysis result to the PCF entity; or,

Send the network resource analysis result to the AF entity.

In a possible implementation manner, the transceiver unit 1601 is further configured to:

Receive a first request from an access network device, where the first request is used to request to obtain a network resource analysis result, and the first request carries information about at least one grid; or,

A second request from the AF entity is received, where the second request is used for requesting to obtain a network resource analysis result, and the second request carries information of at least one grid.

In a possible implementation manner, the network device is an NWDAF entity or a data analysis entity.

In a possible implementation manner, the network device is a data analysis entity,

The processing unit 1602 is further configured to preprocess the second SL network information to obtain preprocessed SL network information;

The processing unit 1602 is further configured to obtain a network resource analysis result of at least one grid in the N grids according to the information of the N grids, the preprocessed SL network information and the identifier of the first grid.

In one possible implementation,

The processing unit 1602 is further configured to perform grid division on the preset range to obtain information of N grids within the preset range.

Referring to FIG. 17 , another data processing apparatus is provided in the embodiment of the present application. The data processing apparatus may be a PCF entity, or a chip or a chip system located on the PCF entity, and the data processing apparatus may be used to execute FIG. 2- For the steps performed by the PCF entity in the embodiment shown in 14, reference may be made to the relevant descriptions in the foregoing method embodiments.

The data processing apparatus includes: a transceiver unit 1701 and a processing unit 1702;

A processing unit 1702, configured to perform grid division on a preset range, and obtain information of N grids within the preset range, where N is a positive integer greater than or equal to 1;

The transceiver unit 1701 is configured to transmit the information of the N grids.

In a possible implementation manner, the transceiver unit 1701 is specifically used for:

Send the information of the N grids to the access network device; or,

Send information for N grids to the AF entity; or,

Send the information of N grids to the network device.

In one possible implementation,

The transceiver unit 1701 is further configured to receive a network resource analysis result from at least one grid in the N grids of the network device;

The transceiver unit 1701 is further configured to send communication parameters of the V2X service to UEs within the coverage of at least one grid when the network resource analysis result satisfies the second preset condition, where the communication parameters of the V2X service include QoS parameters and addresses of the V2X service information or at least one of frequency band information.

In a possible implementation manner, the network device is a data analysis entity or an NWDAF entity.

Referring to FIG. 18 , another data processing apparatus is provided in the embodiment of the present application. The data processing apparatus may be an AF entity, or a chip or a chip system located on the AF entity, and the data processing apparatus may be used to execute FIG. 2- For the steps performed by the AF entity in the embodiment shown in 14, reference may be made to the relevant descriptions in the foregoing method embodiments.

The data processing apparatus includes: a transceiver unit 1801 and a processing unit 1802;

The processing unit 1802 is configured to perform grid division on a preset range, and obtain information of N grids within the preset range, where N is a positive integer greater than or equal to 1;

The transceiver unit 1801 is configured to transmit the information of the N grids.

In a possible implementation manner, the transceiver unit 1801 is specifically used for:

Send information for N grids to the PCF entity; or,

Send the information of the N grids to the access network device; or,

Send the information of N grids to the network device.

In one possible implementation,

The transceiver unit 1801 is further configured to receive a network resource analysis result from at least one grid in the N grids of the network device;

The transceiver unit 1801 is further configured to send the QoS parameter of the V2X service to the UE executing the V2X service provided by the AF entity within the coverage area of at least one grid when the network resource analysis result satisfies the third preset condition.

In one possible implementation,

The AF entity sends a second request to the network device, where the second request is used to request to obtain a network resource analysis result, and the second request carries information of at least one grid.

In a possible implementation manner, the network device is a data analysis entity or an NWDAF entity.

The present application also provides a data processing apparatus 1900, please refer to FIG. 19, an embodiment of the data processing apparatus in the embodiment of the present application, the data processing apparatus may be an access network device, or a chip or a chip located on the access network device system, the data processing apparatus may be configured to perform the steps performed by the access network device in any of the embodiments shown in FIGS. 2-14 , and reference may be made to the relevant descriptions in the foregoing method embodiments.

The data processing apparatus 1900 includes: a processor 1901 , a memory 1902 and an input and output device 1903 .

In a possible implementation manner, the processor 1901, the memory 1902, and the input/output device 1903 are respectively connected to the bus, and the memory stores computer instructions.

The transceiver unit 1501 in the foregoing embodiment may specifically be the input/output device 1903 in this embodiment, so the specific implementation of the input/output device 1903 will not be described again.

The processing unit 1502 in the foregoing embodiment may specifically be the processor 1901 in this embodiment, so the specific implementation of the processor 1901 will not be described again.

In an implementation manner, the data processing apparatus 1900 may include more or less components than those shown in FIG. 19 , which are merely illustrative and not limited in this application.

The present application also provides a data processing apparatus 2000, please refer to FIG. 20, an embodiment of the data processing apparatus in the embodiment of the present application, the data processing apparatus may be a network device, or a chip or chip system located on the network device, the data The processing apparatus may be configured to perform the steps performed by the network device in any of the embodiments shown in FIGS. 2-14 , and reference may be made to the relevant descriptions in the foregoing method embodiments.

The data processing apparatus 2000 includes: a processor 2001 , a memory 2002 and an input and output device 2003 .

In a possible implementation manner, the processor 2001, the memory 2002, and the input/output device 2003 are respectively connected to the bus, and the memory stores computer instructions.

The transceiver unit 1601 in the foregoing embodiment may specifically be the input/output device 2003 in this embodiment, and thus the specific implementation of the input/output device 2003 will not be described again.

The processing unit 1602 in the foregoing embodiment may specifically be the processor 2001 in this embodiment, so the specific implementation of the processor 2001 will not be described again.

In an implementation manner, the data processing apparatus 2000 may include more or less components than those shown in FIG. 20 , which are merely illustrative and not limited in this application.

The present application also provides a data processing apparatus 2100, please refer to FIG. 21, an embodiment of the data processing apparatus in the embodiments of the present application, the data processing apparatus may be a PCF entity, or a chip or chip system located on the PCF entity, the data processing The processing apparatus may be configured to perform the steps performed by the PCF entity in any of the embodiments shown in FIGS. 2-14 , and reference may be made to the relevant descriptions in the foregoing method embodiments.

The data processing apparatus 2100 includes: a processor 2101 , a memory 2102 and an input and output device 2103 .

In a possible implementation manner, the processor 2101, the memory 2102, and the input/output device 2103 are respectively connected to the bus, and the memory stores computer instructions.

The transceiver unit 1701 in the foregoing embodiment may specifically be the input/output device 2103 in this embodiment, and thus the specific implementation of the input/output device 2103 will not be described again.

The processing unit 1702 in the foregoing embodiment may specifically be the processor 2101 in this embodiment, so the specific implementation of the processor 2101 will not be described again.

In an implementation manner, the data processing apparatus 2100 may include more or less components than those shown in FIG. 21 , which are merely illustrative and not limited in this application.

The present application also provides a data processing apparatus 2200, please refer to FIG. 22, an embodiment of the data processing apparatus in the embodiment of the present application, the data processing apparatus may be an AF entity, or a chip or chip system located on the AF entity, the data The processing apparatus may be configured to perform the steps performed by the AF entity in any of the embodiments shown in FIGS. 2-14 , and reference may be made to the relevant descriptions in the foregoing method embodiments.

The data processing apparatus 2200 includes: a processor 2201 , a memory 2202 and an input and output device 2203 .

In a possible implementation manner, the processor 2201, the memory 2202, and the input/output device 2203 are respectively connected to the bus, and the memory stores computer instructions.

The transceiver unit 1801 in the foregoing embodiment may specifically be the input/output device 2203 in this embodiment, and thus the specific implementation of the input/output device 2203 will not be described again.

The processing unit 1802 in the foregoing embodiment may specifically be the processor 2201 in this embodiment, so the specific implementation of the processor 2201 will not be described again.

In an implementation manner, the data processing apparatus 2200 may include more or less components than those shown in FIG. 22 , which are merely illustrative and not limited in this application.

Referring to FIG. 23 , an embodiment of the present application further provides a communication system, where the communication network includes: an access network device, a PCF entity, and a network device.

The access network device may include the data processing apparatus shown in FIG. 15 , and is configured to perform all or part of the steps performed by the access network device in any of the embodiments shown in FIGS. 2-14 .

The network device may include the data processing apparatus shown in FIG. 16 , which is configured to perform all or part of the steps performed by the network device in any of the embodiments shown in FIGS. 2-14 .

The PCF entity may include the data processing apparatus shown in FIG. 17 , and is configured to execute all or part of the steps performed by the PCF entity in any of the embodiments shown in FIGS. 4-14 .

In a possible implementation manner, the communication system may further include a UE, and the UE may be configured to perform all or part of the steps performed by the UE in any of the foregoing implementation manners shown in FIGS. 2-14 .

Referring to FIG. 24 , an embodiment of the present application further provides a communication system, where the communication network includes: an access network device, a PCF entity, a network device, and an AF entity.

The access network device may include the data processing apparatus shown in FIG. 15 , and is configured to perform all or part of the steps performed by the access network device in any of the embodiments shown in FIGS. 2-14 .

The network device may include the data processing apparatus shown in FIG. 16 , which is configured to perform all or part of the steps performed by the network device in any of the embodiments shown in FIGS. 2-14 .

The PCF entity may include the aforementioned data processing apparatus shown in FIG. 17 , and is configured to perform all or part of the steps performed by the PCF entity in any of the foregoing embodiments shown in FIGS. 2-14 .

The AF entity may include the data processing apparatus shown in the foregoing FIG. 18 , and is configured to perform all or part of the steps performed by the AF entity in any of the foregoing embodiments shown in FIGS. 2-14 .

In a possible implementation manner, the communication system may further include a UE, and the UE may be configured to perform all or part of the steps performed by the UE in any of the foregoing implementation manners shown in FIGS. 2-14 .

The present application provides a chip system, the chip system includes a processor for supporting a data processing apparatus to implement the functions involved in the above aspects, for example, for example, sending or processing the data and/or information involved in the above methods. In a possible design, the chip system further includes a memory for storing necessary program instructions and data. The chip system may be composed of chips, or may include chips and other discrete devices.

In another possible design, when the data processing apparatus is a chip in a terminal device, an access network device, a network device, an AF entity or a PCF entity, etc., the chip includes: a processing unit and a communication unit, the processing unit For example, it may be a processor, and the communication unit may be, for example, an input/output interface, a pin or a circuit, or the like. The processing unit can execute the computer execution instructions stored in the storage unit, so that the chip in the terminal device, access network device, network device, AF entity or PCF entity, etc. executes the connection in any of the above-mentioned embodiments in FIGS. 2-14 . Steps of a method performed by a network access device, a network device, a PCF entity or an AF entity. Optionally, the storage unit is a storage unit in the chip, such as a register, a cache, etc., and the storage unit may also be in the terminal device, access network device, network device, AF entity or PCF entity, etc. A storage unit located outside the chip, such as read-only memory (ROM) or other types of static storage devices that can store static information and instructions, random access memory (RAM), and the like.

Embodiments of the present application further provide a computer-readable storage medium on which a computer program is stored, and when the computer program is executed by a computer, implements the method flow related to the data processing apparatus in any of the above method embodiments. Correspondingly, the computer may be the above data processing device. The data processing apparatus includes access network equipment, network equipment, PCF entity or AF entity.

The embodiments of the present application also provide a computer program or a computer program product including the computer program, when the computer program is executed on a computer, the computer will enable the computer to implement the data processing and data processing in any of the above method embodiments Device-related method flow. Correspondingly, the computer may be the above-mentioned data processing device.

In each of the above embodiments in FIGS. 2-14 , it may be implemented in whole or in part by software, hardware, firmware, or any combination thereof. When implemented in software, it can be implemented in whole or in part in the form of a computer program product.

The computer program product includes one or more computer instructions. When the computer program instructions are loaded and executed on a computer, all or part of the processes or functions described in the embodiments of the present application are generated. The computer may be a general purpose computer, special purpose computer, computer network, or other programmable device. The computer instructions may be stored in or transmitted from one computer-readable storage medium to another computer-readable storage medium, for example, the computer instructions may be downloaded from a website site, computer, server, or data center Transmission to another website site, computer, server, or data center is by wire (eg, coaxial cable, fiber optic, digital subscriber line (DSL)) or wireless (eg, infrared, wireless, microwave, etc.). The computer-readable storage medium may be any available medium that can be stored by a computer, or a data storage device such as a server, data center, etc., which includes one or more available media integrated. The usable media may be magnetic media (eg, floppy disks, hard disks, magnetic tapes), optical media (eg, DVD), or semiconductor media (eg, Solid State Disk (SSD)), among others.

It should be understood that the processor mentioned in this application may be a central processing unit (Central Processing Unit, CPU), and may also be other general-purpose processors, digital signal processors (Digital Signal Processor, DSP), application specific integrated circuits (Application Specific Integrated Circuits) Circuit, ASIC), off-the-shelf programmable gate array (Field Programmable Gate Array, FPGA) or other programmable logic devices, discrete gate or transistor logic devices, discrete hardware components, and the like. A general purpose processor may be a microprocessor or the processor may be any conventional processor or the like.

It should also be understood that the number of processors in the present application may be one or multiple, and may be adjusted according to actual application scenarios, which is merely illustrative and not limiting. The number of memories in this embodiment of the present application may be one or more, and may be specifically adjusted according to actual application scenarios, which is merely illustrative and not limiting.

It should also be noted that, when the data processing device includes a processor (or a processing unit) and a memory, the processor in this application may be integrated with the memory, or the processor and the memory may be connected through an interface. Adjustment according to actual application scenarios is not limited.

Those skilled in the art can clearly understand that, for the convenience and brevity of description, the specific working process of the system, device and unit described above may refer to the corresponding process in the foregoing method embodiments, which will not be repeated here.

In the several embodiments provided in this application, it should be understood that the disclosed system, apparatus and method may be implemented in other manners. For example, the apparatus embodiments described above are only illustrative. For example, the division of the units is only a logical function division. In actual implementation, there may be other division methods. For example, multiple units or components may be combined or Can be integrated into another system, or some features can be ignored, or not implemented. On the other hand, the shown or discussed mutual coupling or direct coupling or communication connection may be through some interfaces, indirect coupling or communication connection of devices or units, and may be in electrical, mechanical or other forms.

The units described as separate components may or may not be physically separated, and components displayed as units may or may not be physical units, that is, may be located in one place, or may be distributed to multiple network units. Some or all of the units may be selected according to actual needs to achieve the purpose of the solution in this embodiment.

In addition, each functional unit in each embodiment of the present application may be integrated into one processing unit, or each unit may exist physically alone, or two or more units may be integrated into one unit. The above-mentioned integrated units may be implemented in the form of hardware, or may be implemented in the form of software functional units.

The integrated unit, if implemented in the form of a software functional unit and sold or used as an independent product, may be stored in a computer-readable storage medium. Based on this understanding, the technical solutions of the present application can be embodied in the form of software products in essence, or the parts that contribute to the prior art, or all or part of the technical solutions, and the computer software products are stored in a storage medium , including several instructions for causing a computer device (which may be a personal computer, a server, or other devices, etc.) to execute all or part of the steps of the methods described in the respective embodiments of FIGS. 2-14 of the present application.

It should be understood that a storage medium or memory referred to in this application may include volatile memory or non-volatile memory, or may include both volatile and non-volatile memory. Wherein, the non-volatile memory may be Read-Only Memory (ROM), Programmable Read-Only Memory (PROM), Erasable Programmable Read-Only Memory (Erasable PROM, EPROM), Erase programmable read-only memory (Electrically EPROM, EEPROM) or flash memory. The volatile memory may be random access memory (RAM), which is used as an external cache. By way of example and not limitation, many forms of RAM are available, such as Static RAM (SRAM), Dynamic RAM (DRAM), Synchronous DRAM, SDRAM), double data rate synchronous dynamic random access memory (Double DataRate SDRAM, DDR SDRAM), enhanced synchronous dynamic random access memory (Enhanced SDRAM, ESDRAM), synchronous link dynamic random access memory (Synch link DRAM, SLDRAM) ) and direct memory bus random access memory (Direct Rambus RAM, DR RAM).

It should be noted that the memory described herein is intended to include, but not be limited to, these and any other suitable types of memory.

As mentioned above, the above embodiments are only used to illustrate the technical solutions of the present application, but not to limit them; although the present application has been described in detail with reference to the foregoing embodiments, those of ordinary skill in the art should understand: The technical solutions described in the embodiments are modified, or some technical features thereof are equivalently replaced; and these modifications or replacements do not make the essence of the corresponding technical solutions deviate from the scope of the technical solutions of the embodiments of the present application.

Claims (37)

1. A method of data processing, comprising:

the method comprises the steps that access network equipment obtains information of N grids in a preset range, wherein N is a positive integer greater than or equal to 1;

the access network equipment receives first side link SL network information from User Equipment (UE);

the access network equipment sends an identifier of a first grid and second SL network information related to the first grid to network equipment according to the first SL network information, the UE is in the first grid, and the N grids comprise the first grid;

the access network device receiving a network resource analysis result from at least one grid of the N grids of the network device;

when the network resource analysis result meets a first preset condition, the access network equipment sends SL radio bearer configuration to the UE in the coverage range of the at least one grid; or,

and when the network resource analysis result meets a first preset condition, the access network equipment allocates network resources for the UE in the at least one grid coverage range according to the network resource analysis result.

2. The method of claim 1, wherein the obtaining, by the access network device, information of N grids within a preset range includes:

the access network equipment receives the information of the N grids from a Policy and Control Function (PCF) entity; or,

the access network device receiving information of the N grids from a data analysis entity; or,

the access network equipment receives the information of the N grids from an Application Function (AF) entity.

3. The method of claim 1, wherein the obtaining, by the access network device, information of N grids within a preset range includes:

and the access network equipment performs grid division on the preset range to obtain the information of the N grids in the preset range.

4. The method of claim 3, further comprising:

the access network equipment sends the information of the N grids to a PCF entity; or,

and the access network equipment sends the information of the N grids to the network equipment.

5. The method according to any one of claims 1-4, further comprising:

the access network equipment sends a first request to the network equipment, wherein the first request is used for requesting to obtain the network resource analysis result;

wherein the first request carries information of the at least one grid.

6. The method of claim 5, wherein the first request further carries the second SL network information.

7. The method of any of claims 1-4, wherein the network device is a data analysis entity or a network data analysis function (NWDAF) entity.

8. The method according to any of claims 1-4, wherein the information of the N grids comprises:

the identities of the N grids and the coverage information of the N grids.

9. The method according to any one of claims 1-4, further comprising:

the access network device assigns an identifier to each of the N grids.

10. The method according to any of claims 1-4, wherein the first SL network information comprises at least one of: location information, channel quality information, V2X service information, or road information of the UE.

11. The method according to any one of claims 1-4, further comprising:

and the access network equipment determines that the UE is in the first grid according to the position of the UE and the information of the N grids.

12. The method of any of claims 1-4, wherein a coverage of the first grid is less than a coverage of a current access cell of the UE.

13. A method of data processing, comprising:

the method comprises the steps that network equipment obtains information of N grids in a preset range, wherein N is a positive integer greater than or equal to 1;

the network equipment receives identification of a first grid from access network equipment and second SL network information related to the first grid, wherein the N grids comprise the first grid;

and the network equipment obtains a network resource analysis result of at least one grid in the N grids according to the information of the N grids, the second SL network information and the identification of the first grid, wherein the at least one grid comprises the first grid.

14. The method of claim 13, wherein the network device obtains information of N grids within a preset range, and the method comprises:

the network equipment receives the information of the N grids from the PCF entity; or,

the network device receiving information from the N grids of an access network device; or,

the network device receives information of the N grids from an AF entity.

15. The method according to claim 13 or 14, characterized in that the method further comprises:

the network equipment sends the network resource analysis result to the access network equipment; or,

the network equipment sends the network resource analysis result to a PCF entity; or,

and the network equipment sends the network resource analysis result to an AF entity.

16. The method according to claim 13 or 14, characterized in that the method further comprises:

the network device receives a first request from the access network device, wherein the first request is used for requesting to obtain the network resource analysis result, and the first request carries the information of the at least one grid; or,

and the network equipment receives a second request from an AF entity, wherein the second request is used for requesting to obtain the network resource analysis result and carries the information of the at least one grid.

17. The method of claim 13 or 14, wherein the network device is an NWDAF entity or a data analysis entity.

18. The method according to claim 13 or 14, wherein the network device is a data analysis entity, and the network device obtains a network resource analysis result of at least one grid of the N grids according to the information of the N grids, the second SL network information, and the identifier of the first grid, and includes:

the network equipment preprocesses the second SL network information to obtain preprocessed SL network information;

and the network equipment obtains a network resource analysis result of at least one grid in the N grids according to the information of the N grids, the information of the preprocessed SL network and the identifier of the first grid.

19. The method according to claim 13 or 14, wherein the network device is a data analysis entity, and the network device obtains information of N grids within a preset range, and further comprising:

and the network equipment performs grid division on the preset range to obtain the information of the N grids in the preset range.

20. A method of data processing, comprising:

a Policy and Control Function (PCF) entity performs grid division on a preset range to obtain information of N grids in the preset range, wherein N is a positive integer greater than or equal to 1;

and the PCF entity sends the information of the N grids, wherein the information of the N grids is used for sending an identifier of a first grid and second SL network information related to the first grid to network equipment after the access network equipment receives first SL network information from UE, the UE is in the first grid, and the N grids comprise the first grid.

21. The method of claim 20, wherein the PCF entity sends information for the N grids, comprising:

the PCF entity sends the information of the N grids to access network equipment; or,

the PCF entity sends the information of the N grids to an AF entity; or,

and the PCF entity sends the information of the N grids to network equipment.

22. The method according to claim 20 or 21, further comprising:

the PCF entity receives a network resource analysis result of at least one grid in the N grids from the network equipment;

when the network resource analysis result meets a second preset condition, the PCF entity sends communication parameters of the V2X service to the UE within the at least one grid coverage area, where the communication parameters of the V2X service include at least one of QoS parameters, address information, or frequency band information of the V2X service.

23. The method of claim 20 or 21, wherein the network device is a data analysis entity or an NWDAF entity.

24. A method of data processing, comprising:

the AF entity performs grid division on a preset range to obtain the information of N grids in the preset range, wherein N is a positive integer greater than or equal to 1;

the AF entity sends the information of the N grids, where the information of the N grids is used for an access network device to send, after receiving first SL network information from a UE, an identifier of a first grid and second SL network information related to the first grid to the network device, where the UE is in the first grid, and the N grids include the first grid.

25. The method of claim 24, wherein the AF entity sends the information of the N grids, comprising:

the AF entity sends the information of the N grids to a PCF entity; or,

the AF entity sends the information of the N grids to access network equipment; or,

and the AF entity sends the information of the N grids to the network equipment.

26. The method of claim 24 or 25, further comprising:

the AF entity receiving a network resource analysis result of at least one grid in the N grids of the network equipment;

when the network resource analysis result meets a third preset condition, the AF entity sends the QoS parameters of V2X service to the UE which executes the V2X service provided by the AF entity in the coverage range of the at least one grid.

27. The method of claim 26, further comprising:

and the AF entity sends a second request to the network equipment, wherein the second request is used for requesting to obtain the network resource analysis result and the second request carries the information of the at least one grid.

28. The method of claim 24 or 25, wherein the network device is a data analysis entity or an NWDAF entity.

29. A data processing apparatus, comprising: a processor and a memory;

the memory is used for storing programs;

the processor is configured to execute the program to implement the method according to any one of claims 1-12.

30. A data processing apparatus, comprising: a processor and a memory;

the memory is used for storing programs;

the processor is configured to execute the program to implement the method of any one of claims 13-19.

31. A data processing apparatus, comprising: a processor and a memory;

the memory is used for storing programs;

the processor is configured to execute the program to implement the method of any one of claims 20-23.

32. A data processing apparatus, comprising: a processor and a memory;

the memory is used for storing programs;

the processor is configured to execute the program to implement the method of any one of claims 24-28.

33. A communication system, comprising: access network equipment, network equipment and a PCF entity;

the access network device for implementing the method according to any one of claims 1-12;

the network device for implementing the method of any one of claims 13-19;

the PCF entity for implementing the method according to any of claims 20-23.

34. The communication system of claim 33, further comprising: an AF entity;

the AF entity for implementing the method of any one of claims 24-28.

35. A computer-readable storage medium comprising instructions that, when executed on a computer, cause the computer to perform the method of any of claims 1 to 28.

36. A data processing apparatus comprising a processor and a memory, wherein the processor is coupled to the memory for reading and executing instructions stored in the memory to carry out the steps of any of claims 1 to 28.

37. The apparatus of claim 36, wherein the data processing apparatus is a chip or a system on a chip.

Images
