Abstract

Embodiments of the present invention provide an application setting method and an electronic device, which relate to the technical field of electronic devices. The embodiment of the present invention receives a first operation for a target application icon, the target application icon includes icons of at least two applications, displays a first target setting page of the target application in response to the first operation, receives a first target setting page for the first application In the second operation of the target setting page, in response to the second operation, target permissions of the target applications are set in batches. When the user needs to set permissions for multiple applications, he directly performs the first operation on the icon of the target application to display the first target setting page of the target application, and the user performs the second operation on the first target setting page, which can be done once The permission setting for multiple applications at the same time is realized, the operation steps are simple, and the user does not need to remember the set path, and the permission setting for the application can be performed more conveniently and quickly.

Description

Application setting method and electronic device

technical field

Embodiments of the present invention relate to the technical field of electronic devices, and in particular, to a method for setting an application program and an electronic device.

Background technique

With the continuous development of electronic device technology, traditional browser access has been unable to meet the actual needs of users, making various applications emerge as the times require, and most users' electronic devices are installed with various applications , applications include traditional applications and fast applications.

In the actual use process, users need to set permissions for the applications installed in the electronic device according to their actual needs. The current permissions setting steps for applications are usually: find the settings icon on the desktop of the electronic device, click the settings icon, and then Find the application management in the settings page, click the application management to enter the application management page, and then find an application that needs to be set on the application management page, and set the permissions for the application. When you need to set permissions for other applications, also You need to exit to the application management page, and find the corresponding application on the application management page to set permissions.

In the current application setting method, when there are many application programs to be set, many steps are repeatedly performed, resulting in complicated operations.

SUMMARY OF THE INVENTION

Embodiments of the present invention provide an application setting method and an electronic device, so as to solve the problem that in the current application setting method, when there are many application programs to be set, many repeated steps are performed, resulting in complicated operation.

In order to solve the above-mentioned technical problems, the present invention is achieved in this way:

In a first aspect, an embodiment of the present invention provides a method for setting an application program, which is applied to an electronic device, and the method includes:

receiving a first operation for a target application icon, wherein the target application icon includes icons of at least two applications;

In response to the first operation, displaying a first target setting page of a target application, wherein the target application is the at least two applications;

receiving a second operation for the first target settings page;

In response to the second operation, target permissions of the target applications are set in batches.

In a second aspect, an embodiment of the present invention provides an electronic device, including:

a first operation receiving module, configured to receive a first operation for a target application icon, wherein the target application icon includes icons of at least two applications;

a first target setting page display module, configured to display a first target setting page of a target application program in response to the first operation, wherein the target application program is the at least two application programs;

A second operation receiving module, configured to receive a second operation for the first target setting page;

A target permission setting module, configured to set target permissions of the target application programs in batches in response to the second operation.

In a third aspect, an embodiment of the present invention further provides an electronic device, including a processor, a memory, and a computer program stored on the memory and executable on the processor, the computer program being executed by the processor When executed, implement the steps of the application setting method described above.

In a fourth aspect, an embodiment of the present invention further provides a computer-readable storage medium, where a computer program is stored on the computer-readable storage medium, and when the computer program is executed by a processor, the steps of the foregoing application program setting method are implemented.

In this embodiment of the present invention, by receiving a first operation for a target application icon, the target application icon includes icons of at least two applications, and in response to the first operation, a first target setting page of the target application is displayed, and the target application The application programs are at least two application programs, receive a second operation for the first target setting page, and in response to the second operation, set target permissions of the target applications in batches. When the user needs to set permissions for multiple applications, the user can directly perform the first operation on the icon of the target application to display the first target setting page of the target application, and the user can perform the second operation on the first target setting page. The permission setting for multiple applications at the same time is realized, the operation steps are simple, and the user does not need to remember the set path, and the permission setting for the application can be performed more conveniently and quickly.

Description of drawings

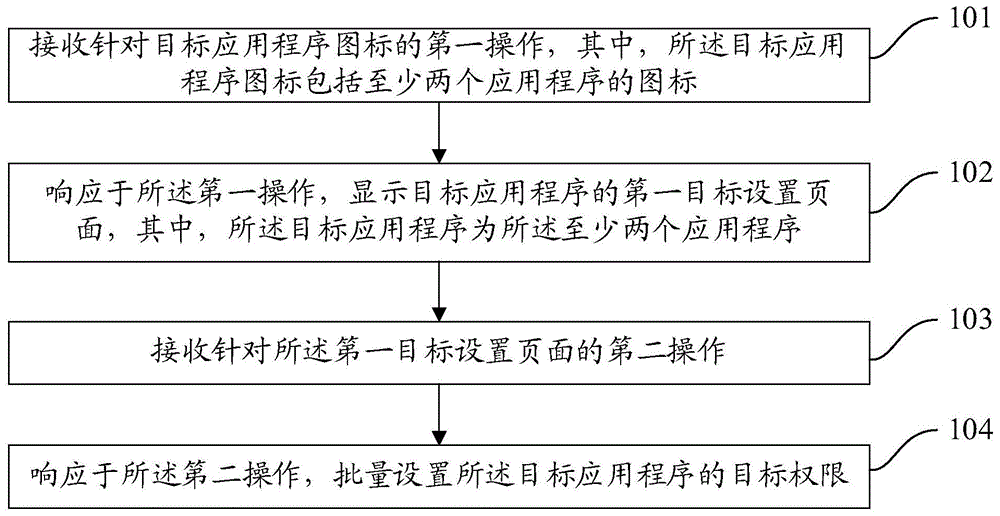

1 shows a flowchart of a method for setting an application program according to Embodiment 1 of the present invention;

2 shows a flowchart of a method for setting an application program according to Embodiment 2 of the present invention;

3 shows a schematic diagram of an electronic device desktop according to an embodiment of the present invention;

FIG. 4 shows a schematic diagram of a setting list task bar according to an embodiment of the present invention;

5 shows a schematic diagram of a first target setting page according to an embodiment of the present invention;

FIG. 6 shows a schematic diagram of batch setting of second applications according to an embodiment of the present invention;

FIG. 7 shows a flowchart of a method for setting an application program according to Embodiment 3 of the present invention;

8 shows a flowchart of a method for setting an application program according to Embodiment 4 of the present invention;

FIG. 9 shows a schematic diagram of a second target setting page according to an embodiment of the present invention;

10 shows a structural block diagram of a mobile electronic device according to Embodiment 5 of the present invention;

11 shows a structural block diagram of another electronic device according to Embodiment 5 of the present invention;

FIG. 12 shows a schematic diagram of a hardware structure of an electronic device according to Embodiment 6 of the present invention.

Detailed ways

The technical solutions in the embodiments of the present invention will be clearly and completely described below with reference to the accompanying drawings in the embodiments of the present invention. Obviously, the described embodiments are part of the embodiments of the present invention, but not all of the embodiments. Based on the embodiments of the present invention, all other embodiments obtained by those of ordinary skill in the art without creative efforts shall fall within the protection scope of the present invention.

Example 1

Referring to FIG. 1, a flowchart of a method for setting an application program according to Embodiment 1 of the present invention is shown, which is applied to an electronic device and may specifically include the following steps:

Step 101: Receive a first operation for a target application icon, wherein the target application icon includes icons of at least two applications.

In this embodiment of the present invention, various application programs are installed on the electronic device, such as social, work, and entertainment applications. The application programs include traditional applications and quick applications. Traditional applications need to be downloaded and installed. It can be used after installation. After the installation is complete, the corresponding application icon will be generated on the desktop of the electronic device, and the quick application can be used without installation. The user can also choose to add the application icon of the quick application to the desktop of the electronic device.

When the user needs to perform permission settings on at least two applications, the icons of the at least two applications requiring permission settings are determined as the target application icons, and the user performs the first operation on the target application icons, and the electronic device receives the user The first action for the target application icon.

For example, the application icons displayed on the desktop of the electronic device include WeChat icons, Alipay icons, Taobao icons and Weibo icons, etc. When the user needs to set permissions for WeChat and Alipay, the WeChat icon and Alipay icon are determined as the target application icons , the user swipes up from the position where the WeChat icon and the Alipay icon are located simultaneously with two fingers, and the electronic device receives the user's first operation on the target application program icon.

Of course, the first operation is not limited to the operation of sliding up from the location where the icon of the target application is located, and may also include operations such as double-clicking, long-pressing, and the like.

Step 102: In response to the first operation, display a first target setting page of a target application, where the target application is the at least two applications.

In this embodiment of the present invention, after receiving the user's first operation on the icon of the target application, in response to the first operation, the first target setting page of the target application is displayed on the screen of the electronic device.

Wherein, the target application program icon includes at least two application program icons, the application program corresponding to the target application program icon is the target application program, and the target application program refers to at least two application programs.

For example, if the target application icons include WeChat icons and Alipay icons, the target applications are WeChat and Alipay.

Step 103: Receive a second operation for the first target setting page.

In this embodiment of the present invention, at least one setting type is displayed on the first target setting page, such as authority management, networking management, notification management, storage management, and privacy management, etc. Each setting type includes multiple setting items, such as authority Management includes storage settings, phone settings, location settings, contacts settings, microphone settings, camera settings, and individual permission settings. A second operation is performed on a setting item included in at least one setting type on a target setting page, and the electronic device receives the user's second operation on the first target setting page.

The second operation is actually a click operation on at least one setting item included in the setting type. When the setting item is currently on, the user clicks the setting item once, and the setting item can be switched from the on state to the off state. When the user clicks the setting item again, the setting item can be switched from the off state to the on state, and the user selects the number of click operations according to actual needs, so that the final state of the setting item meets the requirements.

For example, if the target applications are WeChat and Alipay, the contact setting item and camera setting item setting in the current permission management are both enabled. The user only needs to click the camera setting item once, and set the camera setting item without clicking the contact setting item. is off, while the Contacts setting remains on.

Step 104, in response to the second operation, set target permissions of the target applications in batches.

In this embodiment of the present invention, after receiving the second operation of the user on the first target setting page, in response to the second operation, the target permissions of the target applications are set in batches.

The target permission refers to the state corresponding to the setting item included in the target setting type in the first target setting page by the user, that is, whether the setting item is in an open state or a closed state. Make batch settings.

For example, if the target applications are WeChat and Alipay, and the target permissions include the closed status of the camera setting item and the open status of the contact setting item, after batch settings are performed on the target applications according to the target permissions, WeChat and Alipay are not allowed to use the camera. And allow WeChat and Alipay to read contact information.

Since the target application refers to at least two applications, after the target permission is determined, the target permission setting can be performed on at least two applications at one time.

In this embodiment of the present invention, when the user needs to set permissions for multiple applications, the user directly performs the first operation on the icon of the target application, and displays the first target setting page of the target application, and the user performs the first operation on the first target setting page. In the second operation, the permission setting for multiple applications at the same time can be realized at one time, the operation steps are simple, and the user does not need to remember the set path, and the permission setting for the application can be performed more conveniently and quickly.

Embodiment 2

Referring to FIG. 2, a flowchart of a method for setting an application program according to Embodiment 2 of the present invention is shown, which may specifically include the following steps:

Step 201, receiving a third operation on the desktop of the electronic device.

In the embodiment of the present invention, an application icon corresponding to an application is displayed on the desktop of the electronic device. As shown in FIG. 3 , the desktop of the electronic device displays Taobao, Weibo, Kugou Music, Album, QQ, WeChat, Alipay, Sticky Notes, Icons for applications such as phone calls, text messages, browsers, and cameras.

When the user needs to perform permission setting on the application, the user performs a third operation on the electronic device desktop, and the electronic device receives the user's third operation on the electronic device desktop.

The third operation may be a long-press operation. When the user presses the desktop of the electronic device for longer than the first set duration, the user's long-press operation on the desktop of the electronic device can be received, and the first set duration can be set manually. Certainly.

Step 202: In response to the third operation, display a first setting control on each application icon displayed on the desktop of the electronic device.

In this embodiment of the present invention, after receiving the third operation by the user on the desktop of the electronic device, in response to the third operation, the first setting control is displayed on each application icon displayed on the desktop of the electronic device.

As shown in FIG. 3 , if the user presses the electronic device desktop 20 for a long time, the electronic device desktop 20 is divided into an editing area 21 , a desktop thumbnail area 22 and a fixed area 23 , and the fixed area 23 is used to display the applications corresponding to the applications commonly used by the user. The program icons, from left to right, are the application program icons corresponding to phone calls, text messages, browsers and cameras, and the editing area 21 is used to display the application program icons corresponding to the application programs in the electronic device except the applications commonly used by the user, which are respectively The application icons corresponding to Taobao, Weibo, Kugou Music, Photo Album, QQ, WeChat, Alipay and Notes, and the desktop thumbnail area 22 is used to display thumbnails of multiple desktops of the electronic device.

A first setting control 211 is set at the first designated position of each application icon in the editing area 21, and an uninstall control 212 is set at the second designated position of each application icon in the editing area 21. An application double-opening control 213 is provided at the third designated position of each application icon in the area 21 . Among them, the first setting control 211 is used to call the first setting type list corresponding to the application, so as to set permissions for the application; the uninstall control 212 is used to uninstall the corresponding application, for example, when the user clicks on the microblog icon When the control 212 is uninstalled, the microblog is uninstalled from the electronic device; the application double-open control 213 is used to perform a separate operation on the application, so that the desktop of the electronic device can display two identical application icons, for example, when the user clicks on the WeChat icon When the dual-opening control 213 is applied, two WeChat icons are displayed on the desktop of the electronic device, and the user can use the two WeChat accounts to log in to two different accounts respectively.

The first designated position may be located at the lower left corner of the application icon, the second designated position may be at the upper left corner of the application icon, and the third designated position may be at the lower right corner of the application icon. Of course, the first designated position, the second designated position The designated position and the third designated position may also be located at other positions of the application icon, which is not limited in this embodiment of the present invention.

An exit control 214 is also provided in the editing area 21. When the user clicks the exit control 214, the electronic device exits the editing operation of the application, that is, the first setting control 211, the uninstall control 212 and the application dual-opening control are no longer displayed on the application icon. 213, so that the electronic device can be returned to the normal desktop in the case that the user triggers the desktop of the electronic device by mistake.

In addition, the editing area 21 also displays information such as the current time, the current geographic location of the electronic device, and the weather at the current location. For example, the current time is 11:08 on April 29, Monday, the electronic The current location of the device is Yuhuatai District, the weather at the current location is light rain, and the temperature is 14°C.

Step 203: Receive a first operation for the first setting control on the icon of the target application.

In this embodiment of the present invention, when the user needs to perform permission setting on at least two application programs, the icons of the at least two application programs that need to perform permission setting are determined as the target application program icon, and the user sets the first icon on the target application program icon. Once the setting control performs the first operation, the electronic device receives the user's first operation on the first setting control on the icon of the target application program. The first operation may be a click operation.

As shown in Figure 3, the target applications that the user needs to set permissions for include WeChat, QQ, Taobao and Kugou Music. Then the electronic device receives the user's first operation on the first setting control on the icon of the target application program.

Step 204, in response to the first operation, display a first target setting page of the target application.

This step 204 is similar to the step 102 in the previous embodiment, and details are not repeated here.

In addition, optionally, step 204 may specifically be:

Step 2041, in response to the first operation, add the target application icon to the setting list task bar.

In this embodiment of the present invention, after receiving the first operation by the user on the first setting control on the icon of the target application, in response to the first operation, the icon of the target application is added to the setting list task bar.

As shown in Figure 4, the user clicks the first setting control 211 on the WeChat icon, QQ icon, Taobao icon and Kugou Music icon in turn, and then adds the WeChat icon, QQ icon, Taobao icon and Kugou Music icon to the setting list in the taskbar 24.

Optionally, after step 2041, it also includes step A1 and step A2:

Step A1: Receive a fifth operation for deleting a control on a first application icon in the target application icon.

Step A2, in response to the fifth operation, delete the first application icon from the setting list task bar.

In the embodiment of the invention, a delete control is set on the target application icon in the task bar of the settings list. When the user finds that there is a first application that does not require permission setting in the target application icon added to the task bar of the settings list, By clicking the delete control on the first application icon corresponding to the first application, the electronic device receives the user's fifth operation for deleting the control on the first application icon in the target application icon.

Then, after receiving the fifth operation for the delete control on the first application icon among the target application icons, in response to the fifth operation, the first application icon is deleted from the setting list task bar.

As shown in FIG. 4 , the target application icons in the task bar 24 of the setting list include the WeChat icon, the QQ icon, the Taobao icon and the Kugou Music icon, and the WeChat icon, the QQ icon, the Taobao icon and the Kugou Music icon are all set with Delete control 242, when the user does not need to set Kugou Music, click the delete control 242 on the Kugou Music icon to delete the Kugou Music icon from the setting list task bar 24.

By first adding the target application icon to the task bar of the settings list, the user can check whether the added target application icon is accurate, and set the delete control on the target application icon in the task bar of the settings list. When there is an application icon, the first application icon can be deleted from the setting list task bar by clicking the delete control on the first application icon, so that the target application requiring permission setting is more accurate, and there is no need to return to the electronic Re-select the target application to be set on the device desktop, and the setting operation is more convenient.

Step 2042: Receive a fourth operation for the second setting control in the setting list task bar.

In the embodiment of the invention, a second setting control is set in the task bar of the setting list. When the user checks that the icon of the target application program to be set is correct in the task bar of the setting list, the user can click the second setting control, and the electronic device receives the A fourth operation performed by the user on the second setting control in the task bar of the setting list.

As shown in FIG. 4 , a second setting control 241 is provided in the setting list task bar 24 , and the user can click the second setting control 241 , and the electronic device receives the user's first setting control 241 in the setting list task bar 24 . Four operations.

Step 2043, in response to the fourth operation, display the first target setting page of the target application.

In this embodiment of the present invention, after receiving the fourth operation by the user for the second setting control in the task bar of the settings list, in response to the fourth operation, the target application corresponding to the icon of the target application program in the task bar of the settings list is called. A list of the first setting types for the program.

As shown in FIG. 4 , a second setting control 241 is provided in the setting list task bar 24, and the target application icons added in the setting list task bar 24 include WeChat icons, QQ icons, Taobao icons and Kugou music icons. When the first application icon in the setting list task bar 24 is not deleted, click the second setting control 241 to retrieve the first setting type list corresponding to WeChat, QQ, Taobao and Kugou Music. At this time, the first setting The type list includes the setting types common to WeChat, QQ, Taobao and Kugou Music; if the user deletes the Kugou Music icon in the task bar 24 of the setting list, click the second setting control 241 to call WeChat, QQ and Kugou Music. The first setting type list corresponding to Taobao. In this case, the first setting type list includes the setting types common to WeChat, QQ and Taobao.

After the first setting type list of the target application is called, the first target setting page of the target application is displayed on the screen of the electronic device. The first target setting page includes the icon of the target application and the first setting type list. The first The list of setting types includes at least one setting type.

As shown in FIG. 5 , after clicking the second setting control 241 to retrieve the first setting type list corresponding to WeChat, QQ and Taobao, you can jump to the first target setting page 30 as shown in FIG. 5 . The settings page 30 includes the WeChat icon, the QQ icon, and the Taobao icon. In addition, it also includes a first setting type list corresponding to WeChat, QQ, and Taobao. The first setting type list includes the setting types common to WeChat, QQ, and Taobao, respectively. For rights management, networking management, notification management, storage management and privacy management.

Step 205: Receive a second operation for the first target setting page.

This step 205 is similar to the step 103 in the previous embodiment, and will not be repeated here.

Optionally, step 103 or step 205 may specifically include:

Step 2051: Receive the second application icon in the target application icons displayed on the first target setting page, and the first target setting type in the first setting type list displayed on the first target setting page. Second operation.

In this embodiment of the present invention, the user may, according to actual needs, determine the second application icon from the target application icons displayed on the first target setting page, and the first setting type list displayed on the first target setting page. The target setting type is determined in at least one setting type of the first target setting type, and the user clicks the second application icon and the target setting type, and the electronic device receives the second application icon from the target application icons displayed by the user on the first target setting page, and The second operation of the target setting type in the first setting type list displayed on the first target setting page.

As shown in FIG. 5 , the user clicks the WeChat icon and the QQ icon, and determines that the second application icon includes the WeChat icon and the QQ icon, then the selected control 31 is displayed at the corresponding position of the WeChat icon and the QQ icon, but the user does not click on Taobao icon, the unselected control 32 is displayed at the corresponding position of the Taobao icon. If the WeChat icon is clicked again, the selected control 31 can be changed to the unselected control 32; then, the user clicks on the permission management to determine that the target setting type is permission manage.

Step 206, in response to the second operation, set target permissions of the target applications in batches.

This step 206 is similar to the step 104 in the previous embodiment, and is not repeated here.

Optionally, when step 205 or step 103 is specifically the above step 2051, step 104 or step 206 may also specifically be:

Step 2061, in response to the second operation, perform batch settings on second applications in the target applications according to the target permissions included in the target setting type, wherein the second application is the second application The application corresponding to the application icon.

In this embodiment of the present invention, after receiving the user for the second application icon in the target application icons displayed on the first target setting page, and the target setting in the first setting type list displayed on the first target setting page After the second operation of the type, in response to the second operation, jump to the third target setting page corresponding to the target setting type, and at least one setting item included in the target setting type is displayed on the third target setting page. The state of the setting item is selected, and finally, the permission setting is performed on the second application program according to the state of at least one setting item included in the target setting type, and the second application program refers to the application program corresponding to the second application program icon.

As shown in FIG. 6 , after the user clicks the WeChat icon and the QQ icon in FIG. 5 and the permission management, the user jumps to the third target setting page 40 as shown in FIG. 6 , and the third target setting page 40 displays the permission The management includes multiple settings, including storage settings, phone settings, location settings, contacts settings, microphone settings, camera settings, and individual permission settings. Users can select the status of the settings according to actual needs. After the user's selection is completed, WeChat and QQ are set according to the status of multiple setting items included in the authority management.

For example, if the user sets the status of the contact setting item, the microphone setting item and the camera setting item to the ON state, after batch settings are performed on WeChat and QQ according to the target permissions included in the permission management, WeChat and QQ are allowed to read the contact information. , allows WeChat and QQ to use the microphone, and allows WeChat and QQ to use the camera.

It should be noted that the second application is multiple applications in the target application. At this time, the target permissions of the multiple applications can be set in batches; of course, the second application can also be one of the target applications. An application, at this time, can only set permissions for this application.

In this embodiment of the present invention, when the user needs to set permissions for multiple applications, the user directly performs a third operation on the desktop of the electronic device, and displays the first setting control on each application icon displayed on the desktop of the electronic device. The first setting control on the application icon performs the first operation, adding the target application icon to the setting list taskbar, and the user can check whether the added target application icon is accurate. When there is an application icon, the redundant first application icon can be deleted from the task bar of the setting list, and then the user can perform a fourth operation on the second setting control in the task bar of the setting list to display the first application icon of the target application. On the target setting page, the user can perform the second operation on the first target setting page, and can set permissions for multiple applications at one time. The operation steps are simple, and the user does not need to remember the set path. The application performs permission settings.

Embodiment 3

Referring to FIG. 7 , a flowchart of a method for setting an application program according to Embodiment 3 of the present invention is shown, which may specifically include the following steps:

Step 701: Receive a first operation for a target application icon, wherein the target application icon includes icons of at least two applications.

The principle of this step is similar to that of step 101 in the above-mentioned first embodiment, and details are not repeated here.

Step 702: In response to the first operation, display a first target setting page of a target application, where the target application is the at least two applications.

The principle of this step is similar to that of step 102 in the above-mentioned first embodiment, and details are not repeated here.

Step 703: Receive a sixth operation for adding a control displayed on the first target setting page.

In the embodiment of the present invention, an add control is also set on the first target setting page. When the user sees that in addition to the displayed target application icon on the first target setting page, he also wants to set other applications, At this time, the user can click on the add control displayed on the first goal setting page, and the electronic device receives the user's sixth operation for adding the control displayed on the first goal setting page.

As shown in FIG. 5 , the WeChat icon, the QQ icon and the Taobao icon are displayed on the first target setting page 30 of the electronic device. When the user still wants to set Alipay, click the add control 33 on the first target setting page 30, Then, the electronic device receives the sixth operation of the user with respect to the adding control 33 displayed on the first target setting page 30 .

Step 704, in response to the sixth operation, display all application icons in the electronic device.

In this embodiment of the present invention, after receiving the sixth operation of the user for adding a control displayed on the first target setting page, in response to the sixth operation, the electronic device is displayed in the form of a floating window on the first target setting page in response to the sixth operation. of all application icons.

Step 705: Receive a seventh operation for a third application icon in all the application icons.

In this embodiment of the present invention, after all application icons in the electronic device are displayed in the form of a floating window on the first target setting page, the user selects a third application icon to be added from all application icons in the electronic device, Then, the third application program icon is clicked, and the electronic device receives the seventh operation of the user for the third application program icon among all the application program icons.

Step 706, in response to the seventh operation, adding the third application icon to the first target setting page.

In this embodiment of the present invention, after receiving the seventh operation of the user for the third application icon among all application icons, in response to the seventh operation, the third application icon is added to the first target setting page, and the third application icon is added to the first target setting page. That is, the third application icon is displayed on the first target setting page as the newly added target application icon.

By setting the add control on the first target setting page, when the user omits the third application that needs to be set, the user can click the add control to add the third application icon corresponding to the missing third application to the first target setting page , so that in the subsequent process, the missing third application program and the target application program originally added on the first target setting page can be set at the same time, and the operation is simpler.

Step 707: Receive a second operation for the first target setting page.

The principle of this step is similar to that of step 103 in the above-mentioned first embodiment, and details are not repeated here.

Step 708, in response to the second operation, set target permissions of the target applications in batches.

The principle of this step is similar to that of step 104 in the above-mentioned first embodiment, and details are not repeated here.

In the embodiment of the present invention, when the user needs to perform permission settings on multiple applications, the user directly performs the first operation on the icon of the target application, displays the first target setting page of the target application, and sets the addition on the first target setting page. Control, when the user omits the third application that needs to be set, the user can click the add control to add the third application icon corresponding to the missing third application to the first target setting page, and then the user can set the first target By performing the second operation on the page, the permission settings for multiple applications at the same time can be realized at one time, the operation steps are simple, and the user does not need to remember the set path, and the permission settings for the applications can be performed more conveniently and quickly.

Embodiment 4

Referring to FIG. 8 , a flowchart of a method for setting an application program according to Embodiment 4 of the present invention is shown, which may specifically include the following steps:

Step 801: Receive a first operation for a target application icon, wherein the target application icon includes icons of at least two applications.

The principle of this step is similar to that of step 101 in the above-mentioned first embodiment, and details are not repeated here.

Step 802: In response to the first operation, display a first target setting page of a target application, where the target application is the at least two applications.

The principle of this step is similar to that of step 102 in the above-mentioned first embodiment, and details are not repeated here.

Step 803: Receive an eighth operation for a third setting control on a fourth application icon in the target application icon.

In the embodiment of the present invention, a third setting control is set on the target application icon displayed on the first target setting page. When the user needs to perform internal settings on the fourth application in the target application, click the fourth application corresponding to the third setting control on the fourth application icon, the electronic device receives the user's eighth operation on the third setting control on the fourth application icon in the target application icon.

As shown in FIG. 5 , the WeChat icon, the QQ icon and the Taobao icon are displayed on the first target setting page 30 of the electronic device. The WeChat icon, the QQ icon and the Taobao icon are all provided with a third setting control 34. During the internal setting, Taobao is determined as the fourth application, the user clicks the third setting control 34 on the Taobao icon, and the electronic device receives the user's eighth operation on the third setting control on the fourth application icon.

Step 804, in response to the eighth operation, displaying a second target setting page.

In this embodiment of the present invention, after receiving the eighth operation by the user for the third setting control on the fourth application icon in the target application icon, in response to the eighth operation, the second operation in the fourth application is called. Set type list.

After the second setting type list inside the fourth application is called, a second target setting page is displayed on the screen of the electronic device, the second target setting page includes the target application icon and the second setting type list, and the target application Icons and a list of secondary settings types are displayed in a split screen on the secondary target settings page. Wherein, the second setting type list includes at least one function management item.

As shown in FIG. 9 , after the user clicks the third setting control 34 on the Taobao icon in FIG. 5 to retrieve the second setting type list inside Taobao, the user jumps to the second target setting page 50 as shown in FIG. 9 . , a second setting type list is displayed on the second target setting page 50, and the function management items included in the second setting type list are: personal data, my shipping address, account and security, regional settings, sound effects and notifications, privacy , General, Feedback and About Taobao.

Step 805: Receive a ninth operation for the target function management item in the second setting type list displayed on the second target setting page.

In this embodiment of the present invention, the user can click the target function management item in the second setting type list according to actual needs, and the electronic device receives the user's target function management item in the second setting type list displayed on the second target setting page. The ninth operation of the item.

Step 806, in response to the ninth operation, perform function setting on a fourth application program according to the setting parameters of the target function management item, wherein the fourth application program is an application program corresponding to the fourth application program icon .

In this embodiment of the present invention, after receiving the ninth operation by the user for the target function management item in the second setting type list displayed on the second target setting page, in response to the ninth operation, jump to the fourth target setting On the fourth target setting page, the user can set parameters for the target function management item, and finally, perform function settings on the fourth application according to the setting parameters of the target function management item.

As shown in Figure 9, when the user clicks on my delivery address, my delivery address is determined as the target function management item, and it jumps to the fourth target setting page. The user can edit the original target setting page on the fourth target setting page. Delivery address, you can also add a new delivery address to set parameters for the target function management item. Finally, perform function settings on the fourth application according to the address edited or added by the user, so that the fourth application uses the editing The following address or the added address.

Due to the deep level of the second setting type list in many applications, it is difficult to find quickly. By setting the third setting control on each target application icon displayed on the first target setting page, when the user needs to When the fourth application performs internal settings, click the third setting control on the icon of the fourth application to call the second setting type list inside the fourth application, and display the second target setting page. The target setting page performs internal settings on the fourth application, and it is more convenient and quicker to perform internal settings on the application without remembering the path of the internal settings.

Step 807: Receive a second operation for the first target setting page.

The principle of this step is similar to that of step 103 in the above-mentioned first embodiment, and details are not repeated here.

Step 808, in response to the second operation, set target permissions of the target applications in batches.

The principle of this step is similar to that of step 104 in the above-mentioned first embodiment, and details are not repeated here.

In this embodiment of the present invention, when the user needs to set permissions for multiple applications, the user directly performs the first operation on the icon of the target application, and displays the first target setting page of the target application, and the user performs the first operation on the first target setting page. The second operation is to set permissions for multiple applications at the same time, and the operation steps are simple; and a third setting control is set on each target application icon displayed on the first target setting page. When the user needs to set the target application When the fourth application in the program performs internal settings, click the third setting control on the icon of the fourth application to call up the second setting type list inside the fourth application, and display the second target setting page. The second target setting page performs internal settings on the fourth application, and it is more convenient and quicker to perform internal settings on the application without remembering the path of the internal settings.

Embodiment 5

Referring to FIG. 10 , a structural block diagram of an electronic device according to Embodiment 5 of the present invention is shown. The electronic device 1000 includes:

a first operation receiving module 1001, configured to receive a first operation for a target application icon, wherein the target application icon includes icons of at least two applications;

a first target setting page display module 1002, configured to display a first target setting page of a target application program in response to the first operation, wherein the target application program is the at least two application programs;

A second operation receiving module 1003, configured to receive a second operation for the first target setting page;

A target permission setting module 1004 is configured to, in response to the second operation, set target permissions of the target application programs in batches.

Referring to FIG. 11 , a structural block diagram of another electronic device according to Embodiment 5 of the present invention is shown.

On the basis of FIG. 10 , optionally, the electronic device 1000 further includes:

The third operation receiving module 1005 is configured to receive a third operation for the desktop of the electronic device;

a first setting control display module 1006, configured to display a first setting control on each application icon displayed on the desktop of the electronic device in response to the third operation;

The first operation receiving module 1001 includes:

The first operation receiving submodule is configured to receive a first operation for the first setting control on the icon of the target application.

Optionally, the first target setting page display module 1002 includes:

an icon adding sub-module, used for adding the target application icon to the setting list task bar in response to the first operation;

a fourth operation receiving submodule, configured to receive a fourth operation for the second setting control in the setting list task bar;

The first target setting page display sub-module is configured to display the first target setting page of the target application in response to the fourth operation.

Optionally, the electronic device 1000 further includes:

a fifth operation receiving submodule, configured to receive a fifth operation for deleting the control on the first application icon in the target application icon;

An icon deletion sub-module, configured to delete the first application icon from the setting list task bar in response to the fifth operation.

Optionally, the second operation receiving module 1003 includes:

The second operation receiving sub-module is configured to receive the second application icon in the target application icons displayed on the first target setting page, and the first setting type list displayed on the first target setting page. The second action of the target setting type;

The target authority setting module 1004 includes:

A target permission setting submodule, configured to, in response to the second operation, perform batch settings on second applications in the target applications according to the target permissions included in the target setting type, wherein the second application is the application corresponding to the second application icon.

Optionally, the electronic device 1000 further includes:

a sixth operation receiving module 1007, configured to receive a sixth operation for adding a control displayed on the first target setting page;

an icon display module 1008, configured to display all application icons in the electronic device in response to the sixth operation;

a seventh operation receiving module 1009, configured to receive a seventh operation for the third application icon in all the application icons;

An icon adding module 1010, configured to add the third application icon to the first target setting page in response to the seventh operation.

Optionally, the electronic device 1000 further includes:

an eighth operation receiving module 1011, configured to receive an eighth operation for the third setting control on the fourth application icon in the target application icon;

A second target setting page display module 1012, configured to display a second target setting page in response to the eighth operation;

a ninth operation receiving module 1013, configured to receive a ninth operation for the target function management item in the second setting type list displayed on the second target setting page;

A function setting module 1014, configured to, in response to the ninth operation, perform function setting on a fourth application program according to the setting parameters of the target function management item, wherein the fourth application program is the fourth application program icon corresponding application.

The electronic device provided in the embodiment of the present invention can implement each process implemented by the electronic device in the method embodiments of FIG. 1 to FIG. 9 , and to avoid repetition, details are not repeated here.

In this embodiment of the present invention, when the user needs to set permissions for multiple applications, the user directly performs the first operation on the icon of the target application, and displays the first target setting page of the target application, and the user performs the first operation on the first target setting page. In the second operation, the permission setting for multiple applications at the same time can be realized at one time, the operation steps are simple, and the user does not need to remember the set path, and the permission setting for the application can be performed more conveniently and quickly.

Embodiment 6

Referring to FIG. 12 , a schematic diagram of a hardware structure of an electronic device according to an embodiment of the present invention is shown.

The electronic device 1200 includes but is not limited to: a radio frequency unit 1201, a network module 1202, an audio output unit 1203, an input unit 1204, a sensor 1205, a display unit 1206, a user input unit 1207, an interface unit 1208, a memory 1209, a processor 1210, and Power 1211 and other components. Those skilled in the art can understand that the structure of the electronic device shown in FIG. 12 does not constitute a limitation on the electronic device, and the electronic device may include more or less components than the one shown, or combine some components, or different components layout. In this embodiment of the present invention, the electronic device includes but is not limited to a mobile phone, a tablet computer, a notebook computer, a palmtop computer, a vehicle-mounted terminal, a wearable device, a pedometer, and the like.

The input unit 1204 is configured to receive a first operation for a target application icon, wherein the target application icon includes icons of at least two applications; the display unit 1206 is configured to respond to the first operation, displaying a first target setting page of a target application, wherein the target applications are the at least two applications; the input unit 1204 is further configured to receive a second operation for the first target setting page; a processor 1210: In response to the second operation, set target permissions of the target applications in batches.

In this embodiment of the present invention, when the user needs to set permissions for multiple applications, the user directly performs the first operation on the icon of the target application, and displays the first target setting page of the target application, and the user performs the first operation on the first target setting page. In the second operation, the permission setting for multiple applications at the same time can be realized at one time, the operation steps are simple, and the user does not need to remember the set path, and the permission setting for the application can be performed more conveniently and quickly.

It should be understood that, in this embodiment of the present invention, the radio frequency unit 1201 can be used for receiving and sending signals during sending and receiving of information or during a call. Specifically, after receiving the downlink data from the base station, it is processed by the processor 1210; The uplink data is sent to the base station. Generally, the radio frequency unit 1201 includes, but is not limited to, an antenna, at least one amplifier, a transceiver, a coupler, a low noise amplifier, a duplexer, and the like. In addition, the radio frequency unit 1201 can also communicate with the network and other devices through a wireless communication system.

The electronic device provides the user with wireless broadband Internet access through the network module 1202, such as helping the user to send and receive emails, browse web pages, and access streaming media.

The audio output unit 1203 may convert audio data received by the radio frequency unit 1201 or the network module 1202 or stored in the memory 1209 into audio signals and output as sound. Also, the audio output unit 1203 may also provide audio output related to a specific function performed by the electronic device 1200 (eg, call signal reception sound, message reception sound, etc.). The audio output unit 1203 includes a speaker, a buzzer, a receiver, and the like.

The input unit 1204 is used to receive audio or video signals. The input unit 1204 may include a graphics processor (Graphics Processing Unit, GPU) 12041 and a microphone 12042. The graphics processor 12041 captures images of still pictures or videos obtained by an image capture device (such as a camera) in a video capture mode or an image capture mode data is processed. The processed image frames may be displayed on the display unit 1206 . The image frames processed by the graphics processor 12041 may be stored in the memory 1209 (or other storage medium) or transmitted via the radio frequency unit 1201 or the network module 1202 . The microphone 12042 can receive sound and can process such sound into audio data. The processed audio data can be converted into a format that can be transmitted to a mobile communication base station via the radio frequency unit 1201 for output in the case of a telephone call mode.

The electronic device 1200 also includes at least one sensor 1205, such as a light sensor, a motion sensor, and other sensors. Specifically, the light sensor includes an ambient light sensor and a proximity sensor, wherein the ambient light sensor can adjust the brightness of the display panel 12061 according to the brightness of the ambient light, and the proximity sensor can turn off the display panel 12061 and the proximity sensor when the electronic device 1200 is moved to the ear. / or backlight. As a kind of motion sensor, the accelerometer sensor can detect the magnitude of acceleration in all directions (usually three axes), and can detect the magnitude and direction of gravity when stationary, and can be used to identify the posture of electronic devices (such as horizontal and vertical screen switching, related games , magnetometer attitude calibration), vibration recognition related functions (such as pedometer, tapping), etc.; the sensors 1205 may also include fingerprint sensors, pressure sensors, iris sensors, molecular sensors, gyroscopes, barometers, hygrometers, thermometers, Infrared sensors, etc., are not repeated here.

The display unit 1206 is used to display information input by the user or information provided to the user. The display unit 1206 may include a display panel 12061, and the display panel 12061 may be configured in the form of a liquid crystal display (LCD), an organic light-emitting diode (OLED), or the like.

The user input unit 1207 may be used to receive input numerical or character information, and generate key signal input related to user settings and function control of the electronic device. Specifically, the user input unit 1207 includes a touch panel 12071 and other input devices 12072 . The touch panel 12071, also known as the touch screen, can collect the user's touch operations on or near it (such as the user's finger, stylus, etc., any suitable objects or accessories on or near the touch panel 12071. operate). The touch panel 12071 may include two parts, a touch detection device and a touch controller. Among them, the touch detection device detects the user's touch orientation, detects the signal brought by the touch operation, and transmits the signal to the touch controller; the touch controller receives the touch information from the touch detection device, converts it into contact coordinates, and then sends it to the touch controller. To the processor 1210, the command sent by the processor 1210 is received and executed. In addition, the touch panel 12071 can be realized by various types of resistive, capacitive, infrared, and surface acoustic waves. In addition to the touch panel 12071 , the user input unit 1207 may also include other input devices 12072 . Specifically, other input devices 12072 may include, but are not limited to, physical keyboards, function keys (such as volume control keys, switch keys, etc.), trackballs, mice, and joysticks, which will not be repeated here.

Further, the touch panel 12071 can be overlaid on the display panel 12061. When the touch panel 12071 detects a touch operation on or near it, it transmits it to the processor 1210 to determine the type of the touch event, and then the processor 1210 determines the type of the touch event according to the touch The type of event provides a corresponding visual output on display panel 12061. Although in FIG. 12 , the touch panel 12071 and the display panel 12061 are used as two independent components to realize the input and output functions of the electronic device, but in some embodiments, the touch panel 12071 and the display panel 12061 can be integrated The implementation of the input and output functions of the electronic device is not specifically limited here.

The interface unit 1208 is an interface for connecting an external device to the electronic device 1200 . For example, external devices may include wired or wireless headset ports, external power (or battery charger) ports, wired or wireless data ports, memory card ports, ports for connecting devices with identification modules, audio input/output (I/O) ports, video I/O ports, headphone ports, and more. The interface unit 1208 may be used to receive input from external devices (eg, data information, power, etc.) and transmit the received input to one or more elements within the electronic device 1200 or may be used between the electronic device 1200 and external Transfer data between devices.

The memory 1209 may be used to store software programs as well as various data. The memory 1209 may mainly include a stored program area and a stored data area, wherein the stored program area may store an operating system, an application program required for at least one function (such as a sound playback function, an image playback function, etc.), etc.; Data created by the use of the mobile phone (such as audio data, phone book, etc.), etc. Additionally, memory 1209 may include high-speed random access memory, and may also include non-volatile memory, such as at least one magnetic disk storage device, flash memory device, or other volatile solid state storage device.

The processor 1210 is the control center of the electronic device, using various interfaces and lines to connect various parts of the entire electronic device, by running or executing the software programs and/or modules stored in the memory 1209, and calling the data stored in the memory 1209. , perform various functions of electronic equipment and process data, so as to monitor electronic equipment as a whole. The processor 1210 may include one or more processing units; preferably, the processor 1210 may integrate an application processor and a modem processor, wherein the application processor mainly processes the operating system, user interface, and application programs, etc., and the modem The processor mainly handles wireless communication. It can be understood that, the above-mentioned modulation and demodulation processor may not be integrated into the processor 1210.

The electronic device 1200 may also include a power supply 1211 (such as a battery) for supplying power to various components. Preferably, the power supply 1211 may be logically connected to the processor 1210 through a power management system, so as to manage charging, discharging, and power consumption management through the power management system and other functions.

In addition, the electronic device 1200 includes some functional modules not shown, which will not be repeated here.

Embodiment 7

Preferably, an embodiment of the present invention further provides an electronic device, including a processor 1210, a memory 1209, and a computer program stored in the memory 1209 and running on the processor 1210, when the computer program is executed by the processor 1210 Various processes of the above-mentioned application program setting method embodiments are implemented, and the same technical effect can be achieved. To avoid repetition, details are not described here.

Embodiment 8

Embodiments of the present invention further provide a computer-readable storage medium, where a computer program is stored on the computer-readable storage medium. When the computer program is executed by a processor, each process of the foregoing application program setting method embodiment can be achieved, and can achieve the same The technical effect, in order to avoid repetition, will not be repeated here. The computer-readable storage medium is, for example, a read-only memory (Read-Only Memory, ROM for short), a random access memory (Random Access Memory, RAM for short), a magnetic disk, or an optical disk.

It should be noted that, herein, the terms "comprising", "comprising" or any other variation thereof are intended to encompass non-exclusive inclusion, such that a process, method, article or device comprising a series of elements includes not only those elements, It also includes other elements not expressly listed or inherent to such a process, method, article or apparatus. Without further limitation, an element qualified by the phrase "comprising a..." does not preclude the presence of additional identical elements in a process, method, article or apparatus that includes the element.

From the description of the above embodiments, those skilled in the art can clearly understand that the method of the above embodiment can be implemented by means of software plus a necessary general hardware platform, and of course can also be implemented by hardware, but in many cases the former is better implementation. Based on this understanding, the technical solutions of the present invention can be embodied in the form of software products in essence or the parts that make contributions to the prior art, and the computer software products are stored in a storage medium (such as ROM/RAM, magnetic disk, CD), including several instructions to make a terminal (which may be a mobile phone, a computer, a server, an air conditioner, or a network device, etc.) execute the methods described in the various embodiments of the present invention.

The embodiments of the present invention have been described above in conjunction with the accompanying drawings, but the present invention is not limited to the above-mentioned specific embodiments, which are merely illustrative rather than restrictive. Under the inspiration of the present invention, without departing from the spirit of the present invention and the scope protected by the claims, many forms can be made, which all belong to the protection of the present invention.

Claims (10)

1. A method for setting an application program, applied to an electronic device, wherein the method comprises: receiving a first operation for a target application icon, wherein the target application icon includes icons of at least two applications; In response to the first operation, displaying a first target setting page of a target application, wherein the target application is the at least two applications; receiving a second operation for the first target settings page; In response to the second operation, target permissions of the target applications are set in batches. 2. The method according to claim 1, wherein before the step of receiving the first operation for the target application icon, the method further comprises: receiving a third operation for the desktop of the electronic device; In response to the third operation, displaying a first setting control on each application icon displayed on the desktop of the electronic device; The step of receiving the first operation for the target application icon includes: A first operation for the first setting control on the target application icon is received. 3. The method according to claim 2, wherein the step of displaying the first target setting page of the target application in response to the first operation comprises: In response to the first operation, adding the target application icon to the settings list task bar; receiving a fourth operation for the second setting control in the setting list task bar; In response to the fourth operation, a first target setting page of the target application is displayed. 4. The method according to claim 3, wherein after the step of adding the target application icon to the task bar of the settings list, the method further comprises: receiving a fifth operation for deleting a control on a first application icon in the target application icon; In response to the fifth operation, the first application icon is deleted from the settings list task bar. 5. The method according to claim 1, wherein the step of receiving a second operation for the first target setting page comprises: receiving a second operation for a second application icon in the target application icons displayed on the first target setting page, and a target setting type in the first setting type list displayed on the first target setting page; The step of setting the target permissions of the target applications in batches in response to the second operation includes: In response to the second operation, batch settings are performed on second applications in the target application according to the target permissions included in the target setting type, wherein the second application is the second application icon corresponding application. 6. The method according to claim 1, wherein after the step of displaying the first target setting page of the target application, the method further comprises: receiving a sixth operation for adding a control displayed on the first target setting page; In response to the sixth operation, displaying all application icons in the electronic device; receiving a seventh operation for a third application icon among all the application icons; In response to the seventh operation, the third application icon is added to the first target settings page. 7. The method according to claim 1, wherein after the step of displaying the first target setting page of the target application, the method further comprises: receiving an eighth operation for a third setting control on a fourth application icon in the target application icon; In response to the eighth operation, displaying a second target setting page; receiving a ninth operation for the target function management item in the second setting type list displayed on the second target setting page; In response to the ninth operation, function settings are performed on a fourth application program according to the setting parameters of the target function management item, wherein the fourth application program is an application program corresponding to the fourth application program icon. 8. An electronic device, characterized in that, comprising: a first operation receiving module, configured to receive a first operation for a target application icon, wherein the target application icon includes icons of at least two applications; a first target setting page display module, configured to display a first target setting page of a target application program in response to the first operation, wherein the target application program is the at least two application programs; A second operation receiving module, configured to receive a second operation for the first target setting page; A target permission setting module, configured to set target permissions of the target application programs in batches in response to the second operation. 9. The electronic device according to claim 8, further comprising: A third operation receiving module, configured to receive a third operation for the desktop of the electronic device; a first setting control display module, configured to display a first setting control on each application icon displayed on the desktop of the electronic device in response to the third operation; The first operation receiving module includes: The first operation receiving sub-module is configured to receive a first operation for the first setting control on the icon of the target application. 10. The electronic device according to claim 9, wherein the first target setting page display module comprises: an icon adding submodule for adding the target application icon to the setting list task bar in response to the first operation; a fourth operation receiving submodule, configured to receive a fourth operation for the second setting control in the setting list task bar; The first target setting page display sub-module is configured to display the first target setting page of the target application in response to the fourth operation.

Images
