CN111314814A - TWS Bluetooth headset-based translation method, mobile terminal, TWS Bluetooth headset and storage medium - Google Patents
TWS Bluetooth headset-based translation method, mobile terminal, TWS Bluetooth headset and storage medium Download PDFInfo
- Publication number
- CN111314814A CN111314814A CN202010062827.0A CN202010062827A CN111314814A CN 111314814 A CN111314814 A CN 111314814A CN 202010062827 A CN202010062827 A CN 202010062827A CN 111314814 A CN111314814 A CN 111314814A
- Authority
- CN
- China
- Prior art keywords
- earphone
- language
- translation
- voice information
- mode
- Prior art date
- Legal status (The legal status is an assumption and is not a legal conclusion. Google has not performed a legal analysis and makes no representation as to the accuracy of the status listed.)
- Pending
Links
Images
Classifications
-
- H—ELECTRICITY
- H04—ELECTRIC COMMUNICATION TECHNIQUE
- H04R—LOUDSPEAKERS, MICROPHONES, GRAMOPHONE PICK-UPS OR LIKE ACOUSTIC ELECTROMECHANICAL TRANSDUCERS; ELECTRIC HEARING AIDS; PUBLIC ADDRESS SYSTEMS
- H04R1/00—Details of transducers, loudspeakers or microphones
- H04R1/10—Earpieces; Attachments therefor ; Earphones; Monophonic headphones
- H04R1/1091—Details not provided for in groups H04R1/1008 - H04R1/1083
-
- H—ELECTRICITY
- H04—ELECTRIC COMMUNICATION TECHNIQUE
- H04R—LOUDSPEAKERS, MICROPHONES, GRAMOPHONE PICK-UPS OR LIKE ACOUSTIC ELECTROMECHANICAL TRANSDUCERS; ELECTRIC HEARING AIDS; PUBLIC ADDRESS SYSTEMS
- H04R1/00—Details of transducers, loudspeakers or microphones
- H04R1/10—Earpieces; Attachments therefor ; Earphones; Monophonic headphones
- H04R1/1041—Mechanical or electronic switches, or control elements
-
- H—ELECTRICITY
- H04—ELECTRIC COMMUNICATION TECHNIQUE
- H04R—LOUDSPEAKERS, MICROPHONES, GRAMOPHONE PICK-UPS OR LIKE ACOUSTIC ELECTROMECHANICAL TRANSDUCERS; ELECTRIC HEARING AIDS; PUBLIC ADDRESS SYSTEMS
- H04R2201/00—Details of transducers, loudspeakers or microphones covered by H04R1/00 but not provided for in any of its subgroups
- H04R2201/10—Details of earpieces, attachments therefor, earphones or monophonic headphones covered by H04R1/10 but not provided for in any of its subgroups
Landscapes
- Physics & Mathematics (AREA)
- Engineering & Computer Science (AREA)
- Acoustics & Sound (AREA)
- Signal Processing (AREA)
- Telephone Function (AREA)
Abstract
The embodiment of the invention discloses a translation method based on a TWS Bluetooth headset, a mobile terminal, the TWS Bluetooth headset and a storage medium, wherein the method comprises the following steps: sending a control instruction for entering a preset translation mode to the TWS Bluetooth headset, and controlling the TWS Bluetooth headset to enter the preset translation mode; the preset translation mode comprises the following steps: an exo-translation mode and/or a non-exo-translation mode; when the preset translation mode is the external translation mode, acquiring voice information of a first language collected by the TWS Bluetooth headset in real time, translating the voice information of the first language into voice information of a second language, and playing the voice information through external playing of the mobile terminal; and/or when the preset translation mode is the non-external translation mode, the voice information of the first language collected by the first earphone is acquired in real time, the voice information of the first language is translated into the voice information of the second language and then sent to the second earphone for playing, the intelligent translation interaction can be improved, the carrying by a user is facilitated, and simultaneous interpretation can be realized.
Description
Technical Field
The embodiment of the invention relates to the technical field of earphones, in particular to a translation method based on a TWS (True Wireless stereo) Bluetooth earphone, a mobile terminal, the TWS Bluetooth earphone and a storage medium.
Background
With the increasing convenience of transportation, the travel and the cross-country business become part of daily life of many people, but the communication is greatly hindered due to the different languages among people in different countries. At present, people are traveling abroad or in cross-country business negotiation, generally exchange with the help of a translator, need press the button recording when user A speaks, after the recording is ended, the translation result is broadcasted for user B by the translator, press another button recording during user B speaks, after the recording is ended, the translation result is broadcasted for user A by the translator, the translation result is listened, this kind of translation mode is mutual not intelligent, and carry inconvenience, user experience is lower.
Disclosure of Invention
In view of this, an embodiment of the present invention provides a translation method based on a TWS bluetooth headset, a mobile terminal, a TWS bluetooth headset, and a storage medium, so as to solve the problems that the existing translation methods are not intelligent to each other, and the translation machine is inconvenient to carry and has low user experience.
The technical scheme adopted by the embodiment of the invention for solving the technical problems is as follows:
according to a first aspect of the embodiments of the present invention, there is provided a translation method based on a TWS bluetooth headset, which is applied to a mobile terminal, where the TWS bluetooth headset includes a first headset and a second headset, and the mobile terminal establishes bluetooth communication connections with the first headset and the second headset respectively, and the translation method includes:
sending a control instruction for entering a preset translation mode to the first earphone and the second earphone, and controlling the first earphone and the second earphone to enter the preset translation mode; the preset translation mode comprises the following steps: an exo-translation mode and/or a non-exo-translation mode;
when the preset translation mode is a play-out translation mode, acquiring voice information of a first language collected by the TWS Bluetooth headset in real time through the mobile terminal, translating the voice information of the first language into voice information of a second language, and playing the voice information through play-out of the mobile terminal; and/or the presence of a gas in the gas,
when the preset translation mode is a non-external translation mode, the voice information of the first language collected by the first earphone is obtained in real time through the mobile terminal, and the voice information of the first language is translated into the voice information of the second language and then sent to the second earphone for playing.
The playing translation mode and the non-playing translation mode comprise a simultaneous interpretation mode and a touch translation mode;
when the preset translation mode is the simultaneous interpretation mode, the control instruction is also used for indicating the first earphone and the second earphone to start microphones and enter an automatic recording mode;
when the preset translation mode is the touch translation mode, the control instruction is further used for indicating the first earphone and the second earphone to close the microphones and enter the touch recording mode.
Wherein the sending a control instruction to enter a preset translation mode to the first earphone and the second earphone further comprises, before controlling the first earphone and the second earphone to enter the preset translation mode:
setting target languages of the first earphone and the second earphone, setting the target language of the first earphone as a first language, and setting the target language of the second earphone as a second language; or the like, or, alternatively,
setting target languages of the TWS Bluetooth headset and the mobile terminal, setting the target language of the TWS Bluetooth headset as a first language, and setting the target language of the mobile terminal as a second language.
When the preset translation mode is a play-out translation mode, acquiring, by the mobile terminal, the voice information of the first language collected by the TWS bluetooth headset in real time, and after translating the voice information of the first language into the voice information of the second language, before or after play-out play by the mobile terminal, the method further includes:
collecting voice information of a second language through an audio collection device of the mobile terminal, translating the voice information of the second language into voice information of a first language, and sending the voice information of the first language to the first earphone and the second earphone for playing; and/or the presence of a gas in the gas,
when the preset translation mode is a non-external translation mode, the method further includes, by the mobile terminal, acquiring the voice information of the first language collected by the first earphone in real time, translating the voice information of the first language into the voice information of the second language, and sending the voice information of the second language to the second earphone before or after playing the voice information of the first language:
and acquiring the voice information of the second language collected by the second earphone in real time through the mobile terminal, translating the voice information of the second language into the voice information of the first language, and sending the voice information of the first language to the first earphone for playing.
Wherein, the translation method further comprises:
and when a control instruction of translation ending input by a user is received, sending indication information of translation ending to the first earphone and the second earphone, wherein the indication information of translation ending is used for indicating the first earphone and the second earphone to exit the translation mode.
According to a second aspect of the embodiments of the present invention, there is provided a translation method based on a TWS bluetooth headset, applied to a TWS bluetooth headset, where the TWS bluetooth headset includes a first headset and a second headset that respectively establish bluetooth communication connections with a mobile terminal, and the translation method includes:
receiving a control instruction which is sent by the mobile terminal and enters a preset translation mode, and controlling the first earphone and the second earphone to enter the preset translation mode according to the control instruction; the preset translation mode comprises an external translation mode and/or a non-external translation mode;
when the preset translation mode is an external translation mode, sending the voice information of the first language collected by the TWS Bluetooth headset to the mobile terminal, so that the voice information of the first language is translated into the voice information of the second language by the first mobile terminal and then is played through the external translation of the first mobile terminal; and/or the presence of a gas in the gas,
and when the preset translation mode is a non-external translation mode, sending the voice information of the first language collected by the first earphone to the mobile terminal, so that the mobile terminal translates the voice information of the first language into the voice information of the second language and then sends the voice information of the second language to the second earphone for playing.
The playing translation mode and the non-playing translation mode comprise a simultaneous interpretation mode and a touch translation mode;
in the simultaneous interpretation mode, the microphones of the first earphone and the second earphone are both kept in an open state and are in an automatic recording mode;
in the touch translation mode, when a recording touch operation instruction input by a user is not detected, the microphones of the first earphone and the second earphone are both kept in a closed state and are in a touch recording mode.
According to a third aspect of embodiments of the present invention, there is provided a mobile terminal, comprising a memory, a processor, and a computer program stored on the memory and operable on the processor, wherein the computer program, when executed by the processor, implements the steps of the TWS bluetooth headset-based translation method according to any one of the first aspect.
According to a fourth aspect of embodiments of the present invention, there is provided a TWS bluetooth headset comprising a first headset and a second headset, each of the first headset and the second headset comprising:
memory, a processor and a computer program stored on the memory and executable on the processor, which when executed by the processor performs the steps of the TWS bluetooth headset-based translation method according to any of claims 6 to 7.
According to a fifth aspect of embodiments of the present invention, there is provided a computer-readable storage medium having stored thereon a computer program which, when executed by a processor, implements the steps of the TWS bluetooth headset-based translation method according to any one of the above first aspects; and/or implementing the steps of the TWS bluetooth headset-based translation method according to any of the second aspects above.
Compared with the problems of unintelligent interaction, inconvenience in carrying of a translator and low user experience in the prior art in translation through a traditional translator, the translation method based on the TWS Bluetooth headset, the mobile terminal, the TWS Bluetooth headset and the storage medium provided by the embodiment of the invention comprise an external translation mode and a non-external translation mode, and in the external translation mode, the TWS Bluetooth headset is used for recording sound, the sound is transmitted to the mobile terminal for translation, and then the sound is played to a user through external playing of the mobile terminal; in a non-external translation mode, a mobile terminal receives a voice signal of a first language collected by one earphone in a TWS Bluetooth earphone, and then the voice signal is translated into a voice signal of a second language and then sent to the other earphone for playing, so that the interaction intelligence of two translation parties is improved, the mobile terminal is convenient for a user to wear, the user does not need to carry a special translator, and the user experience is improved; in addition, the external translation mode and the non-external translation mode of the embodiment of the invention both comprise a simultaneous interpretation mode, and in the simultaneous interpretation mode, the earphone or the mobile terminal can automatically record without manually triggering the recording by a user, and the simultaneous interpretation can be realized, thereby further improving the user experience.
Drawings
In order to more clearly illustrate the technical solutions in the embodiments of the present application, the drawings needed to be used in the embodiments or the prior art descriptions will be briefly described below, and it is obvious that the drawings in the following description are only some embodiments of the present application, and it is obvious for those skilled in the art to obtain other drawings based on these drawings without inventive exercise.
FIG. 1 is a schematic structural diagram of a TWS Bluetooth headset-based translation system according to an embodiment of the present invention;
fig. 2 is a schematic flowchart illustrating a specific implementation process of a TWS bluetooth headset-based translation method according to an embodiment of the present invention;

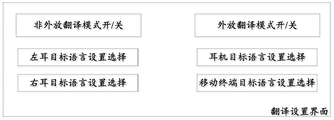

fig. 3 is a schematic diagram of a translation setting interface of a mobile terminal in the TWS bluetooth headset-based translation method according to an embodiment of the present invention;
fig. 4 is a flowchart illustrating a specific implementation of a TWS bluetooth headset-based translation method according to a second embodiment of the present invention;
fig. 5 is a schematic diagram of a translation setting interface of a mobile terminal in the TWS bluetooth headset-based translation method according to the second embodiment of the present invention;
fig. 6 is a flowchart illustrating a specific implementation of a translation method based on a TWS bluetooth headset according to a third embodiment of the present invention;
fig. 7 is a schematic structural diagram of a mobile terminal according to a fourth embodiment of the present invention;
fig. 8 is a schematic structural diagram of a TWS bluetooth headset according to a fifth embodiment of the present invention.
Detailed Description
In order to make the technical problems, technical solutions and advantageous effects to be solved by the present invention clearer and clearer, the present invention is further described in detail below with reference to the accompanying drawings and embodiments. It should be understood that the specific embodiments described herein are merely illustrative of the invention and are not intended to limit the invention.
Fig. 1 is a schematic structural diagram of a translation system based on a TWS bluetooth headset according to an embodiment of the present invention. Only the portions related to the present embodiment are shown for convenience of explanation.
Referring to fig. 1, the translation system based on the TWS bluetooth headset according to the embodiment of the present invention includes a TWS bluetooth headset 2 and a mobile terminal 1, where the TWS bluetooth headset 2 includes a first headset 21 and a second headset 22, and the mobile terminal 1 establishes bluetooth communication connections with the first headset 21 and the second headset 22, respectively.
Wherein, the mobile terminal 1 includes but is not limited to a smart phone with bluetooth communication function. In a specific implementation, the earphone may be divided into a master earphone and a slave earphone, and when the first earphone 21 is the master earphone, the second earphone 22 is the slave earphone; when the first earphone 21 is a slave earphone, the second earphone 22 is a master earphone. Further, in the embodiment of the present invention, the bluetooth connection established between the master earphone and the mobile terminal 1 is a classic bluetooth connection, and the bluetooth connection established between the slave earphone and the mobile terminal 1 is a low power consumption bluetooth connection.
It should be noted that the terms "first" and "second" in the embodiments of the present invention are used for descriptive purposes only and are not to be construed as indicating or implying relative importance or implicitly indicating the number of technical features indicated. Thus, a feature defined as "first" or "second" may explicitly or implicitly include at least one of the feature.
Based on the above system configuration, the following embodiments of the present invention are proposed.
Example one
Fig. 2 is a schematic flowchart of a specific implementation of a TWS bluetooth headset-based translation method according to an embodiment of the present invention, where an execution subject of the method is a mobile terminal 1 in the system shown in fig. 1. Referring to fig. 2, the translation method based on the TWS bluetooth headset provided in this embodiment includes:
step S201, sending a control instruction for entering a preset translation mode to the first earphone 21 and the second earphone 22, and controlling the first earphone 21 and the second earphone 22 to enter the preset translation mode; the preset translation mode comprises the following steps: a exo-translation mode and/or a non-exo-translation mode.
Referring to fig. 3, in a specific implementation example, the mobile terminal 1 includes a translation function setting option inside a setting, and includes a play translation mode on/off option and a non-play translation mode on/off option on a translation setting interface, a user may select the preset translation mode through the on/off on the translation setting interface, and when the mobile terminal 1 detects that the user turns on the switch of the play translation mode or the non-play translation mode, a control instruction is sent to two earphones of the TWS bluetooth earphone 2 through the bluetooth connection to control the two earphones to enter the preset translation mode. When the earphone enters a preset translation mode, the functions of listening to music and making a call of the earphone can be shielded.
Further, in this embodiment, before step S201, the method further includes:
setting target languages of the first earphone 21 and the second earphone 22, setting the target language of the first earphone 21 as a first language, and setting the target language of the second earphone 22 as a second language; or the like, or, alternatively,
setting target languages of the TWS Bluetooth headset 2 and the mobile terminal 1, setting the target language of the TWS Bluetooth headset 2 as a first language, and setting the target language of the mobile terminal 1 as a second language.
Referring to fig. 3, the translation setting interface further includes an earphone target language setting option and a mobile terminal 1 target language setting option under the play-out translation mode on/off option; in a non-external translation mode, the translation setting interface further comprises: a left ear target language setting option and a right ear target language setting option. In particular implementations, a user may set a target language on the translation setting interface.
Step S202, when the preset translation mode is a play-out translation mode, acquiring voice information of a first language collected by the TWS Bluetooth headset 2 in real time through the mobile terminal 1, translating the voice information of the first language into voice information of a second language, and playing the voice information through the play-out of the mobile terminal 1; and/or the presence of a gas in the gas,
step S203, when the preset translation mode is the non-external translation mode, obtaining the voice information of the first language collected by the first earphone 21 in real time through the mobile terminal 1, translating the voice information of the first language into the voice information of the second language, and sending the voice information of the second language to the second earphone 22 for playing.
Preferably, in this embodiment, when the preset translation mode is the play-out translation mode, before or after step S202, the method further includes:
the voice information of the second language is collected through the audio collection device of the mobile terminal 1, and the voice information of the second language is translated into the voice information of the first language and then sent to the first earphone 21 and the second earphone 22 for playing.
Preferably, in this embodiment, when the preset translation mode is a non-external translation mode, before or after step S203, the method further includes:
the mobile terminal 1 acquires the voice information of the second language collected by the second earphone 22 in real time, translates the voice information of the second language into the voice information of the first language, and sends the voice information of the first language to the first earphone 21 for playing.
In this embodiment, when the user is inconvenient to wear the headset to the other side, the mobile terminal 1 may select the play-out translation mode, and in the play-out translation mode, the mobile terminal 1 may obtain the voice signal of the first language collected by the main headset of the TWS bluetooth headset 2 when the user speaks in real time, and may play the voice signal of the first language to the other side through the play-out of the mobile terminal 1 after translating the voice signal of the first language into the voice signal of the second language.
In this embodiment, when performing translation communication between two people, a user may wear one of the earphones to the other side, and select a non-external translation mode on a translation setting interface of the mobile terminal 1, at this time, the mobile terminal 1 may acquire a voice signal acquired by any earphone in real time, translate the voice signal into a language signal of a language used by the user of the other earphone, and send the language signal to the other earphone for playing.
Preferably, in this embodiment, the translation method based on the TWS bluetooth headset may further include:
when a control instruction of translation ending input by a user is received, sending information indicating translation ending to the first earphone 21 and the second earphone 22, wherein the information indicating translation ending is used for indicating the first earphone 21 and the second earphone 22 to exit the translation mode.
In this embodiment, when the mobile terminal 1 detects a control instruction for turning off the translation mode input by the user, it sends instruction information of translation end to two earphones of the TWS bluetooth earphone 2 through bluetooth communication, so that the TWS bluetooth earphone 2 exits from the translation mode and returns to the normal mode, and the functions of the earphones for listening to music and making a call are not affected.
Example two
Fig. 4 is a flowchart illustrating a specific implementation of a TWS bluetooth headset-based translation method according to a second embodiment of the present invention, where an execution subject of the method is a mobile terminal 1 in the system shown in fig. 1. Referring to fig. 4, the translation method based on the TWS bluetooth headset provided in this embodiment includes the following steps:
step S401, sending a control instruction for entering a preset translation mode to the first earphone 21 and the second earphone 22, and controlling the first earphone 21 and the second earphone 22 to enter the preset translation mode; the preset translation mode comprises the following steps: an exo-translation mode and/or a non-exo-translation mode; the playing translation mode and the non-playing translation mode both comprise a simultaneous interpretation mode and a touch translation mode;
when the preset translation mode is the simultaneous interpretation mode, the control instruction is further used for instructing the first earphone 21 and the second earphone 22 to start microphones and enter an automatic recording mode;
when the preset translation mode is the touch translation mode, the control instruction is further used for instructing the first earphone 21 and the second earphone 22 to turn off the microphone and enter the touch recording mode.
Referring to fig. 5, in the present embodiment, the translation setting interface of the mobile terminal 1 includes: the method comprises four options of a simultaneous interpretation mode on/off of the loudspeaker, a touch interpretation mode on/off of the loudspeaker, a simultaneous interpretation mode on/off of the non-loudspeaker and a touch interpretation mode on/off of the non-loudspeaker.
When the user selects the simultaneous interpretation mode, the mobile terminal 1 enters the simultaneous interpretation mode and sends a simultaneous interpretation mode control command to the TWS headset, so that the TWS headset enters the simultaneous interpretation mode. When in the simultaneous interpretation mode of external playing, the microphone of the mobile terminal 1 and the microphone of the TWS headset are both kept on, and are in an automatic recording mode.
When a user selects a play-out touch translation mode, the mobile terminal 1 enters the play-out touch translation mode, and simultaneously sends a play-out touch translation mode control instruction to the TWS Bluetooth headset 2 to control the TWS Bluetooth headset 2 to enter the play-out touch translation mode. In the external touch translation mode, the microphones of the mobile terminal 1 and the TWS Bluetooth headset 2 are both kept in a closed state, recording is carried out only when a user is detected to touch/press the mobile terminal 1 or a switch of the microphone on the headset, microphone states of the TWS Bluetooth headset 2 and the mobile terminal 1 are interacted in the external touch translation mode, and when the microphone of the TWS headset is in an open state, the microphone of the mobile terminal 1 is prohibited to be opened; when the microphone of the mobile terminal 1 is turned on, the microphone of the TWS bluetooth headset 2 is prohibited from being turned on.
When the user selects the non-play simultaneous interpretation mode, the mobile terminal 1 enters the non-play simultaneous interpretation mode, and simultaneously sends a control instruction of the non-play simultaneous interpretation mode to the TWS headset, so that the TWS headset enters the non-play simultaneous interpretation mode. In the non-play simultaneous interpretation mode, the microphones of the first earphone 21 and the second earphone 22 in the TWS earphone are kept on, and are in the automatic recording mode.
When a user selects a non-play touch translation mode, the mobile terminal 1 enters the non-play touch translation mode, and simultaneously sends a non-play touch translation mode control instruction to the TWS Bluetooth headset 2 to control the TWS Bluetooth headset 2 to enter the non-play touch translation mode. In the non-external touch translation mode, the microphones of the first earphone 21 and the second earphone 22 of the TWS bluetooth earphone 2 are both kept in an off state, recording is performed only when a user is detected to press or touch a switch of the microphone on the earphone, microphone states of the first earphone 21 and the second earphone 22 are interacted in the non-external touch translation mode, and when the microphone of the first earphone 21 is in an on state, the microphone of the second earphone is prohibited to be turned on; when the microphone of the second earpiece is switched on, the microphone of the first earpiece 21 is disabled from switching on. Preferably, a bluetooth connection is established between the first earphone 21 and the second earphone 22, and the two earphones can interact with each other based on the bluetooth connection between the two earphones, and can also be forwarded by the mobile terminal 1 and interact with each other based on the microphone state of the mobile terminal 1.
Preferably, in this embodiment, when the TWS bluetooth headset 2 or the mobile terminal 1 is in the automatic recording mode, the TWS bluetooth headset 2 or the mobile terminal 1 may monitor whether the user speaks in real time, and when it is monitored that the user speaks, collect a speech signal of the user speaking, and send the collected speech signal to the processor of the mobile terminal 1 for translation according to a preset frequency. When the TWS Bluetooth headset 2 or the mobile terminal 1 is in a touch recording mode, the TWS Bluetooth headset 2 or the mobile terminal 1 records the sound only when detecting that a user presses/touches a switch of a microphone, and when detecting that the user releases the switch of the microphone, the collected voice signals are sent to a processor of the mobile terminal 1 for translation.
Step S402, when the preset translation mode is a play-out translation mode, acquiring the voice information of the first language collected by the TWS Bluetooth headset 2 in real time through the mobile terminal 1, translating the voice information of the first language into the voice information of the second language, and playing the voice information through the play-out of the mobile terminal 1; and/or the presence of a gas in the gas,
step S403, when the preset translation mode is the non-external translation mode, obtaining, by the mobile terminal 1, the voice information in the first language collected by the first earphone 21 in real time, translating the voice information in the first language into the voice information in the second language, and sending the voice information in the second language to the second earphone 22 for playing.
It should be noted that, since the implementation manners of step S402 to step S403 in this embodiment are completely the same as the implementation manners of step S202 to step S203 in the previous embodiment, detailed descriptions thereof are omitted here.
Compared with the previous embodiment, in the translation method based on the TWS bluetooth headset provided by the embodiment, the external translation mode and the non-external translation mode both include the simultaneous interpretation mode and the touch interpretation mode, so that the user can select the translation mode according to the needs of the user, and the interaction intelligence and the user experience are further improved; in addition, under the simultaneous interpretation mode, the earphone or the mobile terminal 1 can automatically record without manually triggering the recording by a user, and the simultaneous interpretation can be realized, so that the interpretation efficiency is improved, and the user experience is further improved.
EXAMPLE III
Fig. 6 is a schematic flowchart of a specific implementation of a translation method based on a TWS bluetooth headset according to a third embodiment of the present invention, where an execution subject of the method is the TWS bluetooth headset 2 in the system shown in fig. 1. Referring to fig. 6, the translation method based on the TWS bluetooth headset provided in this embodiment includes:
step S601, receiving a control instruction for entering a preset translation mode sent by the mobile terminal 1, and controlling the first earphone 21 and the second earphone 22 to enter the preset translation mode according to the control instruction; the preset translation mode comprises an external translation mode and/or a non-external translation mode.
In this embodiment, when the first earphone 21 and the second earphone 22 of the TWS earphone receive a control command sent by the mobile terminal 1 to enter the preset translation mode, the TWS earphone enters the preset translation mode, and the functions of listening to music and making a call of the earphones are shielded.
Step S602, when the preset translation mode is a play-out translation mode, sending the voice information of the first language collected by the TWS Bluetooth headset 2 to the mobile terminal 1, so that the first mobile terminal 1 translates the voice information of the first language into the voice information of the second language and then plays the voice information through the play-out of the first mobile terminal 1; and/or the presence of a gas in the gas,
step S603, when the preset translation mode is a non-external translation mode, sending the voice information of the first language collected by the first earphone 21 to the mobile terminal 1, so that the mobile terminal 1 translates the voice information of the first language into the voice information of the second language and then sends the voice information of the second language to the second earphone 22 for playing.
In this embodiment, when the preset translation mode is the play-out translation mode, the two earphones of the TWS bluetooth earphone 2 are worn by the same user using the first language, and the mobile terminal 1 is used by another user using the second language. And a main earphone in the TWS Bluetooth earphone 2 collects a speech signal of the user speaking in the first language, and sends the collected speech signal to the mobile terminal 1, and the mobile terminal 1 translates the speech signal into a speech signal in the second language after receiving the speech signal sent by the main earphone and plays the speech signal in the second language to the user speaking in the second language through the external playing of the mobile terminal 1. The mobile terminal 1 collects the speech signal of the user speaking in the second language, translates the speech signal into the speech signal in the first language, and sends the speech signal to the first earphone 21 and the second earphone 22, so that the first earphone 21 and the second earphone 22 play the translated speech information to the user speaking in the first language.
In the present embodiment, when the preset translation mode is the non-extension translation mode, the first earpiece 21 of the TWS bluetooth headset 2 is worn by the user using the first language, and the second earpiece 22 is worn by the user using the second language. The method comprises the steps that a first earphone 21 collects a voice signal of a user speaking in a first language and sends the voice signal to a mobile terminal 1, and after the mobile terminal 1 translates the voice signal into a voice signal in a second language, the translated voice signal in the second language is sent to a second earphone 22 to be played; the second earphone 22 collects the speech signal of the user speaking in the second language and sends the speech signal to the mobile terminal 1, and the mobile terminal 1 translates the speech signal into the speech signal in the first language and sends the speech signal to the first earphone 21 for playing.
Preferably, in this embodiment, the live-out translation mode and the non-live-out translation mode both include a simultaneous interpretation mode and a touch translation mode;
in the simultaneous interpretation mode, the microphones of the first earphone 21 and the second earphone 22 are both kept on, and are in an automatic recording mode;
in the touch translation mode, when the recording touch operation instruction input by the user is not detected, the microphones of the first earphone 21 and the second earphone 22 are both kept in the off state, and are in the touch recording mode.
When in the simultaneous interpretation mode of external playing, the microphone of the mobile terminal 1 and the microphone of the TWS headset are both kept on, and are in an automatic recording mode.
When the TWS Bluetooth headset is in an external touch translation mode, the microphones of the mobile terminal 1 and the TWS Bluetooth headset 2 are both kept in a closed state, recording is carried out only when a user touches/presses the mobile terminal 1 or a switch of the microphone on the headset is detected, microphone states of the TWS Bluetooth headset 2 and the mobile terminal 1 are interacted under the external touch translation mode, and when the microphone of the TWS headset is in an open state, the microphone of the mobile terminal 1 is prohibited to be opened; when the microphone of the mobile terminal 1 is turned on, the microphone of the TWS bluetooth headset 2 is prohibited from being turned on.
In the non-play simultaneous interpretation mode, the microphones of the first earphone 21 and the second earphone 22 in the TWS earphone are kept on, and are in the automatic recording mode.
In the non-external touch translation mode, the microphones of the first earphone 21 and the second earphone 22 of the TWS bluetooth earphone 2 are both kept in an off state, recording is performed only when a user is detected to press or touch a switch of a microphone on the earphone, microphone states of the first earphone 21 and the second earphone 22 are interacted in the non-external touch translation mode, and when the microphone of the first earphone 21 is in an on state, the microphone of the second earphone 22 is prohibited to be turned on; when the microphone of the second earphone 22 is turned on, the microphone of the first earphone 21 is prohibited from being turned on. Preferably, a bluetooth connection is established between the first earphone 21 and the second earphone 22, and the two earphones can interact with each other based on the bluetooth connection between the two earphones, and can also be forwarded by the mobile terminal 1 based on the mobile terminal 1 interacting with each other's microphone states.
Preferably, in this embodiment, the translation method further includes:
when the first earphone 21 or the second earphone 22 receives the indication information of the translation end sent by the mobile terminal 1, the translation mode exits according to the indication information of the translation end.
In this embodiment, when the mobile terminal 1 detects a control instruction for closing the translation mode input by the user, it sends instruction information for ending translation to two earphones of the TWS bluetooth earphone 2 through bluetooth communication, and the TWS bluetooth earphone 2 exits from the translation mode after receiving the instruction information for ending translation and returns to the normal mode, where the functions of listening to music and making a call of the earphones are not affected.
As can be seen from the above, the TWS bluetooth headset-based translation method provided in this embodiment also includes two modes, namely, a play-out translation mode and a non-play translation mode, in the play-out translation mode, the TWS bluetooth headset 2 is used for recording, and after transmitting the recording to the mobile terminal 1 for translation, the recording is played to the user through the play-out of the mobile terminal 1; in a non-external translation mode, the mobile terminal 1 receives a voice signal of a first language collected by one earphone in the TWS Bluetooth earphone 2, translates the voice signal into a voice signal of a second language and then sends the voice signal to the other earphone for playing, so that the interaction intelligence of two translation parties is improved, the mobile terminal is convenient for a user to wear, the user does not need to carry a special translator, and the user experience is improved; in addition, the external translation mode and the non-external translation mode of the embodiment of the invention both comprise a simultaneous interpretation mode, and in the simultaneous interpretation mode, the earphone or the mobile terminal 1 can automatically record without manually triggering the recording by a user, and the simultaneous interpretation can be realized, thereby further improving the user experience.
Example four
Fig. 7 is a schematic structural diagram of a mobile terminal 1 according to a fourth embodiment of the present invention. Only the portions related to the present embodiment are shown for convenience of explanation.
Referring to fig. 7, the mobile terminal 1 provided in this embodiment includes a memory 11, a processor 12, and a computer program 13 stored in the memory 11 and executable on the processor 12, where when the computer program 13 is executed by the processor 12, the steps of the TWS bluetooth headset-based translation method according to the first embodiment or the second embodiment are implemented.
It should be noted that the mobile terminal 1 of this embodiment and the translation method based on the TWS bluetooth headset of the first embodiment or the second embodiment belong to the same concept, and specific implementation processes thereof are detailed in corresponding method embodiments, and technical features in the method embodiments are applicable in this embodiment, and are not described herein again.
EXAMPLE five
Fig. 8 is a schematic structural diagram of a TWS bluetooth headset 2 according to a fifth embodiment of the present invention. Only the portions related to the present embodiment are shown for convenience of explanation.
Referring to fig. 8, the TWS bluetooth headset 2 provided in the present embodiment includes a first headset 21 and a second headset 22, where the first headset 21 includes: a memory 211, a processor 212 and a computer program 213 stored in the memory 211 and operable on the processor 212, wherein when the computer program 213 is executed by the processor 312, the steps of the TWS bluetooth headset-based translation method according to the third embodiment are implemented;
the second earphone 22 includes: a memory 221, a processor 222 and a computer program 223 stored on the memory 221 and executable on the processor 222, wherein the computer program 223, when executed by the processor 222, implements the steps of the TWS bluetooth headset-based translation method according to the third embodiment.
It should be noted that the TWS bluetooth headset 2 of the present embodiment and the translation method based on the TWS bluetooth headset of the third embodiment belong to the same concept, and specific implementation processes thereof are detailed in corresponding method embodiments, and technical features in the method embodiments are correspondingly applicable in the present embodiment, and are not described herein again.
EXAMPLE six
A sixth embodiment of the present invention provides a computer-readable storage medium, where a computer program is stored on the computer-readable storage medium, and when the computer program is executed by a processor, the steps of the translation method based on the TWS bluetooth headset according to the first embodiment, the second embodiment, or the third embodiment are implemented.
It should be noted that the computer-readable storage medium of this embodiment and the translation method based on the TWS bluetooth headset of the first embodiment, the second embodiment, or the third embodiment belong to the same concept, and specific implementation processes thereof are detailed in corresponding method embodiments, and technical features in the method embodiments are correspondingly applicable in this embodiment, which is not described herein again.
It will be understood by those of ordinary skill in the art that all or some of the steps of the methods, systems, functional modules/units in the devices disclosed above may be implemented as software, firmware, hardware, and suitable combinations thereof.
In a hardware implementation, the division between functional modules/units mentioned in the above description does not necessarily correspond to the division of physical components; for example, one physical component may have multiple functions, or one function or step may be performed by several physical components in cooperation. Some or all of the physical components may be implemented as software executed by a processor, such as a central processing unit, digital signal processor, or microprocessor, or as hardware, or as an integrated circuit, such as an application specific integrated circuit. Such software may be distributed on computer readable media, which may include computer storage media (or non-transitory media) and communication media (or transitory media). The term computer storage media includes volatile and nonvolatile, removable and non-removable media implemented in any method or technology for storage of information such as computer readable instructions, data structures, program modules or other data, as is well known to those of ordinary skill in the art. Computer storage media includes, but is not limited to, RAM, ROM, EEPROM, flash memory or other memory technology, CD-ROM, Digital Versatile Disks (DVD) or other optical disk storage, magnetic cassettes, magnetic tape, magnetic disk storage or other magnetic storage devices, or any other medium which can be used to store the desired information and which can accessed by a computer. In addition, communication media typically embodies computer readable instructions, data structures, program modules or other data in a modulated data signal such as a carrier wave or other transport mechanism and includes any information delivery media as known to those skilled in the art.
The preferred embodiments of the present invention have been described above with reference to the accompanying drawings, and are not to be construed as limiting the scope of the invention. Any modifications, equivalents and improvements which may occur to those skilled in the art without departing from the scope and spirit of the present invention are intended to be within the scope of the claims.
Claims (10)
1. A translation method based on TWS Bluetooth earphones is applied to a mobile terminal, the TWS Bluetooth earphones comprise a first earphone and a second earphone, and the mobile terminal establishes Bluetooth communication connection with the first earphone and the second earphone respectively, and the translation method comprises the following steps:
sending a control instruction for entering a preset translation mode to the first earphone and the second earphone, and controlling the first earphone and the second earphone to enter the preset translation mode; the preset translation mode comprises the following steps: an exo-translation mode and/or a non-exo-translation mode;
when the preset translation mode is a play-out translation mode, acquiring voice information of a first language collected by the TWS Bluetooth headset in real time through the mobile terminal, translating the voice information of the first language into voice information of a second language, and playing the voice information through play-out of the mobile terminal; and/or the presence of a gas in the gas,
when the preset translation mode is a non-external translation mode, the voice information of the first language collected by the first earphone is obtained in real time through the mobile terminal, and the voice information of the first language is translated into the voice information of the second language and then sent to the second earphone for playing.
2. The TWS Bluetooth headset-based translation method of claim 1, wherein the loud translation mode and the non-loud translation mode each comprise a simultaneous interpretation mode and a touch translation mode;
when the preset translation mode is the simultaneous interpretation mode, the control instruction is also used for indicating the first earphone and the second earphone to start microphones and enter an automatic recording mode;
when the preset translation mode is the touch translation mode, the control instruction is further used for indicating the first earphone and the second earphone to close the microphones and enter the touch recording mode.
3. The TWS bluetooth headset-based translation method of claim 1, wherein the sending the control instruction to the first headset and the second headset to enter a preset translation mode further comprises, before controlling the first headset and the second headset to enter the preset translation mode:
setting target languages of the first earphone and the second earphone, setting the target language of the first earphone as a first language, and setting the target language of the second earphone as a second language; or the like, or, alternatively,
setting target languages of the TWS Bluetooth headset and the mobile terminal, setting the target language of the TWS Bluetooth headset as a first language, and setting the target language of the mobile terminal as a second language.
4. The TWS bluetooth headset-based translation method according to claim 1, wherein when the preset translation mode is a play-out translation mode, the method further comprises, before or after playing out the TWS bluetooth headset by the mobile terminal after acquiring the voice information in the first language collected by the TWS bluetooth headset in real time through the mobile terminal and translating the voice information in the first language into the voice information in the second language:
collecting voice information of a second language through an audio collection device of the mobile terminal, translating the voice information of the second language into voice information of a first language, and sending the voice information of the first language to the first earphone and the second earphone for playing; and/or the presence of a gas in the gas,
when the preset translation mode is a non-external translation mode, the method further includes, by the mobile terminal, acquiring the voice information of the first language collected by the first earphone in real time, translating the voice information of the first language into the voice information of the second language, and sending the voice information of the second language to the second earphone before or after playing the voice information of the first language:
and acquiring the voice information of the second language collected by the second earphone in real time through the mobile terminal, translating the voice information of the second language into the voice information of the first language, and sending the voice information of the first language to the first earphone for playing.
5. The TWS bluetooth headset-based translation method of claim 1, wherein the translation method further comprises:
and when a control instruction of translation ending input by a user is received, sending indication information of translation ending to the first earphone and the second earphone, wherein the indication information of translation ending is used for indicating the first earphone and the second earphone to exit the translation mode.
6. A translation method based on TWS Bluetooth headset is applied to TWS Bluetooth headset, the TWS Bluetooth headset comprises a first headset and a second headset which are respectively connected with a mobile terminal in a Bluetooth communication mode, and the translation method comprises the following steps:
receiving a control instruction which is sent by the mobile terminal and enters a preset translation mode, and controlling the first earphone and the second earphone to enter the preset translation mode according to the control instruction; the preset translation mode comprises an external translation mode and/or a non-external translation mode;
when the preset translation mode is an external translation mode, sending the voice information of the first language collected by the TWS Bluetooth headset to the mobile terminal, so that the voice information of the first language is translated into the voice information of the second language by the first mobile terminal and then is played through the external translation of the first mobile terminal; and/or the presence of a gas in the gas,
and when the preset translation mode is a non-external translation mode, sending the voice information of the first language collected by the first earphone to the mobile terminal, so that the mobile terminal translates the voice information of the first language into the voice information of the second language and then sends the voice information of the second language to the second earphone for playing.
7. The TWS Bluetooth headset-based translation method of claim 6, wherein the loud translation mode and the non-loud translation mode each comprise a simultaneous interpretation mode and a touch translation mode;
in the simultaneous interpretation mode, the microphones of the first earphone and the second earphone are both kept in an open state and are in an automatic recording mode;
in the touch translation mode, when a recording touch operation instruction input by a user is not detected, the microphones of the first earphone and the second earphone are both kept in a closed state and are in a touch recording mode.
8. A mobile terminal, characterized in that it comprises a memory, a processor and a computer program stored on said memory and executable on said processor, which computer program, when executed by said processor, performs the steps of the TWS bluetooth headset based translation method according to any of claims 1 to 5.
9. A TWS Bluetooth headset comprising a first headset and a second headset, the first headset and the second headset each comprising:
memory, a processor and a computer program stored on the memory and executable on the processor, which when executed by the processor performs the steps of the TWS bluetooth headset-based translation method according to any of claims 6 to 7.
10. A computer-readable storage medium, characterized in that the computer-readable storage medium has stored thereon a computer program which, when being executed by a processor, carries out the steps of the TWS bluetooth headset-based translation method according to any one of claims 1 to 5; and/or the steps of implementing a TWS Bluetooth headset-based translation method according to any of claims 6 to 7.
Priority Applications (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010062827.0A CN111314814A (en) | 2020-01-19 | 2020-01-19 | TWS Bluetooth headset-based translation method, mobile terminal, TWS Bluetooth headset and storage medium |
Applications Claiming Priority (1)
| Application Number | Priority Date | Filing Date | Title |
|---|---|---|---|
| CN202010062827.0A CN111314814A (en) | 2020-01-19 | 2020-01-19 | TWS Bluetooth headset-based translation method, mobile terminal, TWS Bluetooth headset and storage medium |
Publications (1)
| Publication Number | Publication Date |
|---|---|
| CN111314814A true CN111314814A (en) | 2020-06-19 |
Family
ID=71144923
Family Applications (1)
| Application Number | Title | Priority Date | Filing Date |
|---|---|---|---|
| CN202010062827.0A Pending CN111314814A (en) | 2020-01-19 | 2020-01-19 | TWS Bluetooth headset-based translation method, mobile terminal, TWS Bluetooth headset and storage medium |
Country Status (1)
| Country | Link |
|---|---|
| CN (1) | CN111314814A (en) |
Cited By (10)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN111814497A (en) * | 2020-08-05 | 2020-10-23 | Oppo广东移动通信有限公司 | Translation method, device, wearable device, and computer-readable storage medium |
| CN111985252A (en) * | 2020-08-21 | 2020-11-24 | Oppo广东移动通信有限公司 | Dialogue translation method and device, storage medium and electronic equipment |
| CN112511942A (en) * | 2020-12-03 | 2021-03-16 | 歌尔科技有限公司 | Voice translation method based on TWS earphone and TWS earphone |
| CN114245255A (en) * | 2021-11-08 | 2022-03-25 | 肇庆德庆冠旭电子有限公司 | TWS earphone and real-time interpretation method, terminal and storage medium thereof |
| CN114245261A (en) * | 2022-01-18 | 2022-03-25 | 江苏紫米电子技术有限公司 | Real-time conversation translation method, system, earphone device and mobile terminal |
| CN115996371A (en) * | 2021-10-20 | 2023-04-21 | Oppo广东移动通信有限公司 | Bluetooth connection method, device, electronic device and storage medium |
| CN118468898A (en) * | 2024-07-11 | 2024-08-09 | 北京蜂巢世纪科技有限公司 | Translation method, translation device, wearable device, terminal device and readable storage medium |
| CN119181365A (en) * | 2024-09-09 | 2024-12-24 | 深圳市易思态科技有限公司 | Simultaneous interpretation method, device, equipment and medium based on Bluetooth transmission |
| CN119721066A (en) * | 2024-12-05 | 2025-03-28 | 深圳前海沃尔科技有限公司 | A simultaneous interpretation method based on Bluetooth headset, mobile terminal and Bluetooth headset |
| CN121118919A (en) * | 2025-01-10 | 2025-12-12 | 荣耀终端股份有限公司 | Translation methods, systems, equipment and storage media |
Citations (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN106412813A (en) * | 2016-11-30 | 2017-02-15 | 深圳市高为通信技术有限公司 | Real-time communication translation method with bluetooth headsets |
| CN108345591A (en) * | 2018-01-26 | 2018-07-31 | 歌尔股份有限公司 | Voice real time translating method based on mobile terminal ears wireless headset and system |
| CN110381485A (en) * | 2019-06-14 | 2019-10-25 | 华为技术有限公司 | Bluetooth communication method, TWS bluetooth headset and terminal |
| CN110457716A (en) * | 2019-07-22 | 2019-11-15 | 维沃移动通信有限公司 | A kind of voice output method and mobile terminal |
| CN110602675A (en) * | 2019-08-22 | 2019-12-20 | 歌尔股份有限公司 | Earphone pair translation method and device, earphone pair and translation system |
-
2020
- 2020-01-19 CN CN202010062827.0A patent/CN111314814A/en active Pending
Patent Citations (5)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN106412813A (en) * | 2016-11-30 | 2017-02-15 | 深圳市高为通信技术有限公司 | Real-time communication translation method with bluetooth headsets |
| CN108345591A (en) * | 2018-01-26 | 2018-07-31 | 歌尔股份有限公司 | Voice real time translating method based on mobile terminal ears wireless headset and system |
| CN110381485A (en) * | 2019-06-14 | 2019-10-25 | 华为技术有限公司 | Bluetooth communication method, TWS bluetooth headset and terminal |
| CN110457716A (en) * | 2019-07-22 | 2019-11-15 | 维沃移动通信有限公司 | A kind of voice output method and mobile terminal |
| CN110602675A (en) * | 2019-08-22 | 2019-12-20 | 歌尔股份有限公司 | Earphone pair translation method and device, earphone pair and translation system |
Cited By (14)
| Publication number | Priority date | Publication date | Assignee | Title |
|---|---|---|---|---|
| CN111814497A (en) * | 2020-08-05 | 2020-10-23 | Oppo广东移动通信有限公司 | Translation method, device, wearable device, and computer-readable storage medium |
| CN111985252A (en) * | 2020-08-21 | 2020-11-24 | Oppo广东移动通信有限公司 | Dialogue translation method and device, storage medium and electronic equipment |
| CN111985252B (en) * | 2020-08-21 | 2024-05-07 | Oppo广东移动通信有限公司 | Dialogue translation method and device, storage medium and electronic device |
| CN112511942A (en) * | 2020-12-03 | 2021-03-16 | 歌尔科技有限公司 | Voice translation method based on TWS earphone and TWS earphone |
| CN115996371A (en) * | 2021-10-20 | 2023-04-21 | Oppo广东移动通信有限公司 | Bluetooth connection method, device, electronic device and storage medium |
| CN114245255A (en) * | 2021-11-08 | 2022-03-25 | 肇庆德庆冠旭电子有限公司 | TWS earphone and real-time interpretation method, terminal and storage medium thereof |
| CN114245261A (en) * | 2022-01-18 | 2022-03-25 | 江苏紫米电子技术有限公司 | Real-time conversation translation method, system, earphone device and mobile terminal |
| CN118468898A (en) * | 2024-07-11 | 2024-08-09 | 北京蜂巢世纪科技有限公司 | Translation method, translation device, wearable device, terminal device and readable storage medium |
| CN118468898B (en) * | 2024-07-11 | 2024-10-22 | 北京蜂巢世纪科技有限公司 | Translation method, translation device, wearable device, terminal device and readable storage medium |
| CN119181365A (en) * | 2024-09-09 | 2024-12-24 | 深圳市易思态科技有限公司 | Simultaneous interpretation method, device, equipment and medium based on Bluetooth transmission |
| WO2026051237A1 (en) * | 2024-09-09 | 2026-03-12 | 深圳市易思态科技有限公司 | Simultaneous interpretation method and apparatus based on bluetooth transmission, and device and medium |
| CN119721066A (en) * | 2024-12-05 | 2025-03-28 | 深圳前海沃尔科技有限公司 | A simultaneous interpretation method based on Bluetooth headset, mobile terminal and Bluetooth headset |
| CN119721066B (en) * | 2024-12-05 | 2025-11-14 | 深圳前海沃尔科技有限公司 | A simultaneous translation method based on Bluetooth headset, a mobile terminal, and a Bluetooth headset |
| CN121118919A (en) * | 2025-01-10 | 2025-12-12 | 荣耀终端股份有限公司 | Translation methods, systems, equipment and storage media |
Similar Documents
| Publication | Publication Date | Title |
|---|---|---|
| CN111314814A (en) | TWS Bluetooth headset-based translation method, mobile terminal, TWS Bluetooth headset and storage medium | |
| CN101459717B (en) | Wireless terminal and method for implementing multi-channel multiplexing | |
| EP4061027B1 (en) | Bluetooth communication method and apparatus | |
| CN104521247B (en) | Hearing aid and noise resisting method and device for Bluetooth headset | |
| CN108834052B (en) | TWS earphone anti-lost method, TWS earphone and anti-lost system | |
| CN105635878B (en) | A method for switching the working mode of an earphone and an earphone | |
| US20230147435A1 (en) | Audio Processing Method, Apparatus, and System | |
| CN111343526B (en) | Wireless communication method of sound box assembly and sound box assembly for wireless communication | |
| CN109348334B (en) | Wireless earphone and environment monitoring method and device thereof | |
| CN107295434A (en) | TWS earphones and realize the vocal music of TWS earphones with the computer-readable recording medium broadcast | |
| CN102056036A (en) | Reproducing device, headphone and reproducing method | |
| JP2001333161A (en) | Portable terminal | |
| JP3062135B2 (en) | Earphone system | |
| CN105679356B (en) | Recording method, device and terminal | |
| US12549881B2 (en) | Audio playing method, apparatus and system for in-ear earphone | |
| CN113411417A (en) | Wireless sound amplification system and terminal | |
| CN110213707A (en) | Earphone and hearing aid method thereof, and computer readable storage medium | |
| WO2015154282A1 (en) | Call device and switching method and device applied thereto | |
| CN207022164U (en) | TWS earphone | |
| CN110996308A (en) | Sound playing device and control method, control device and readable storage medium thereof | |
| CN110381215B (en) | Audio distribution method and device, storage medium and computer equipment | |
| CN112866855A (en) | Hearing aid method and system, earphone charging box and storage medium | |
| CN109120297B (en) | Earphone far-field interaction method, earphone far-field interaction accessory and wireless earphone | |
| CN105554231A (en) | Voice communication method and apparatus | |
| CN107580102A (en) | Earphone and the method for earphone recording |
Legal Events
| Date | Code | Title | Description |
|---|---|---|---|
| PB01 | Publication | ||
| PB01 | Publication | ||
| SE01 | Entry into force of request for substantive examination | ||
| SE01 | Entry into force of request for substantive examination | ||
| RJ01 | Rejection of invention patent application after publication |
Application publication date: 20200619 |
|
| RJ01 | Rejection of invention patent application after publication |
